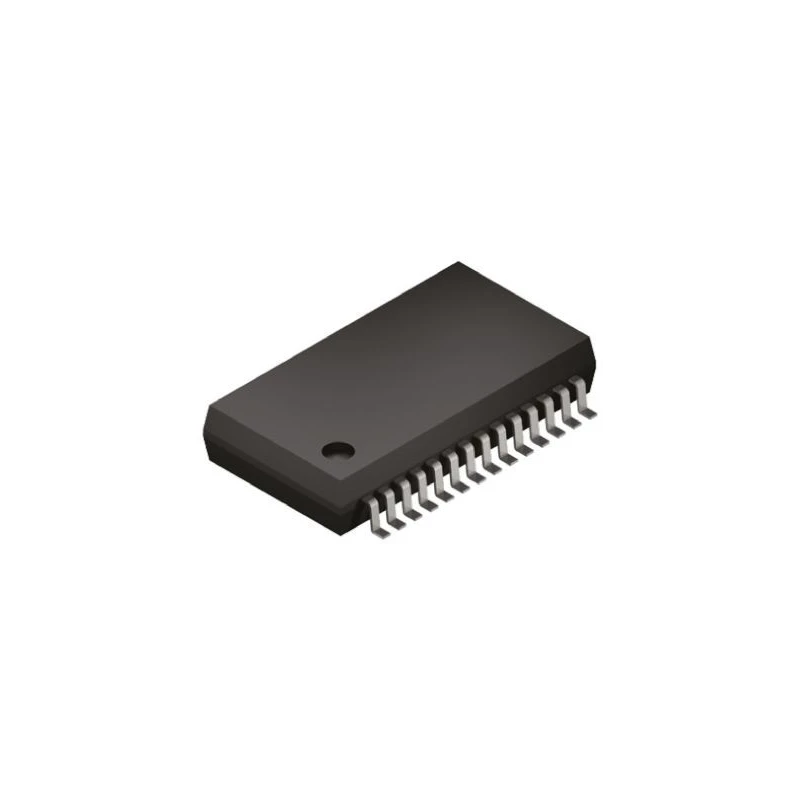

Maxim Integrated 8-Channel 12-Bit Analog-to-Digital Converter 100 ksps 28-Pin SSOP MAX197BEAI+

Free Delivery in India | Lowest Global Shipping Charges

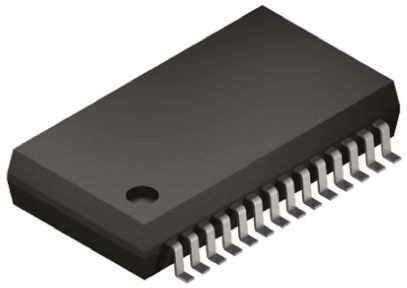

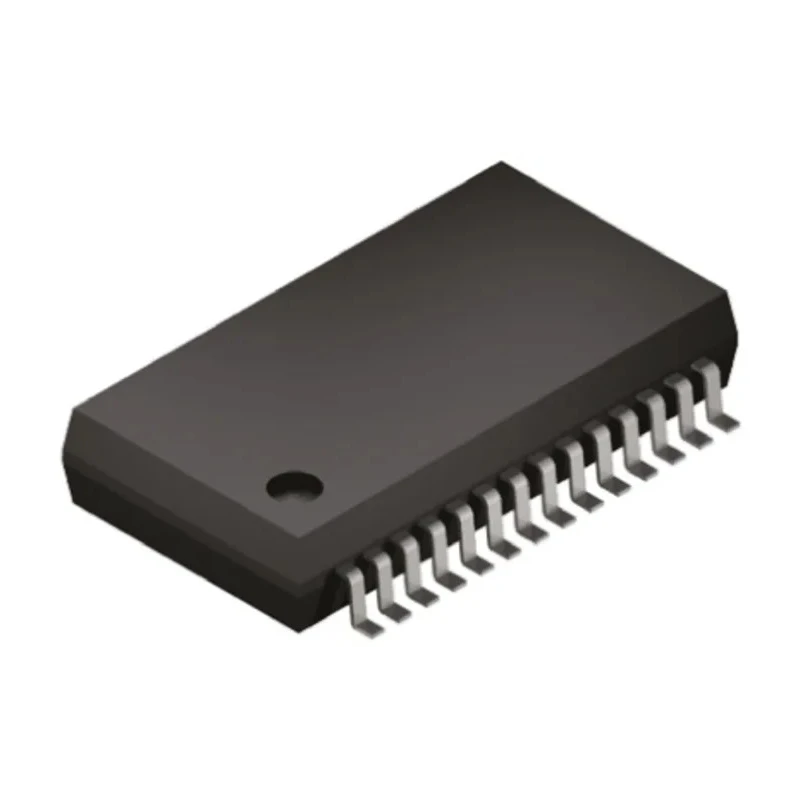

Maxim Integrated 8-Channel 12-Bit Analog-to-Digital Converter 100 ksps 28-Pin SSOP MAX197BEAI+

Name: Maxim Integrated 8-Channel 12-Bit Analog-to-Digital Converter 100 ksps 28-Pin SSOP MAX197BEAI+
Brand: Maxim Integrated
SKU: 103712
Price: 20.22 USD
Availability: InStock



Category Analogue to Digital Converter Brand Maxim Integrated Condition New

Specifications

Country of Origin	United States
Resolution	12 bit
Brand	Maxim Integrated
Height	2mm
Length	10.5mm
Model	MAX197BEAI+
Mount Type	Surface
Sampling rate	100ksps
Series	MAX197
Input Type	Analogue
Maximum Operating Temperature	85°C
Package Type	SSOP
Minimum Operating Temperature	-40°C
Interface Type	Parallel
Architecture	SAR
Pin Count	28
Maximum Supply Voltage	5.25V
Minimum Supply Voltage	5V
Number of ADCs	8

Key Features

Offers 8 ADC channels with 12-bit resolution for precise signal conversion.
Operates with a sampling rate of 100 kilosamples per second.
Utilizes SAR (Successive Approximation Register) architecture for efficient conversion.
Surface mount device with a 28-pin SSOP package type for compact PCB integration.
Supports parallel interface input type suitable for high-speed applications.
Wide operating temperature range from -40°C to 85°C ensuring reliability in harsh environments.
Requires a supply voltage between 5 V and 5.25 V for optimal performance.
Compact dimensions with length of 10.5 mm and height of 2 mm.

Product Description

Maxim Integrated MAX197BEAI+ is a high-performance 8-channel analog-to-digital converter (ADC) designed for accurate and efficient signal processing. Featuring a 12-bit resolution and a sampling rate of 100 ksps, this ADC is well-suited for industrial, laboratory, and embedded system applications requiring precise measurement and conversion of analog signals.

The device employs SAR architecture, providing a balance between speed and accuracy. Packaged in a 28-pin SSOP surface-mount form factor, it enables space-saving integration on printed circuit boards. It supports a parallel input interface for fast data access and is designed for operation in a broad temperature range from -40°C to 85°C, making it suitable for use in demanding environments.

With a minimum operating voltage of 5 V and maximum supply of 5.25 V, the MAX197BEAI+ offers stable performance. Its compact size, measuring 10.5 mm in length and 2 mm in height, facilitates integration into compact electronic designs.

Eight ADC channels with 12-bit resolution provides precise analog input sampling. 100 ksps sampling rate supports rapid signal conversion for real-time applications. SAR architecture ensures efficient and high-speed data conversion.

Surface mount 28-pin SSOP package enhances PCB layout flexibility. Parallel interface enables direct and fast data access. Wide -40°C to 85°C operating temperature range ensures reliable performance in varied conditions.

Supply voltage from 5 V to 5.25 V maintains device stability. Compact physical dimensions support space-constrained electronic designs. Manufactured in the United States guaranteeing quality and origin integrity.

This ADC is ideal for use in industrial automation, data acquisition systems, instrumentation, and other commercial electronics where precise analog-to-digital conversion is critical. It integrates seamlessly into semiconductor and analog signal processing workflows.
