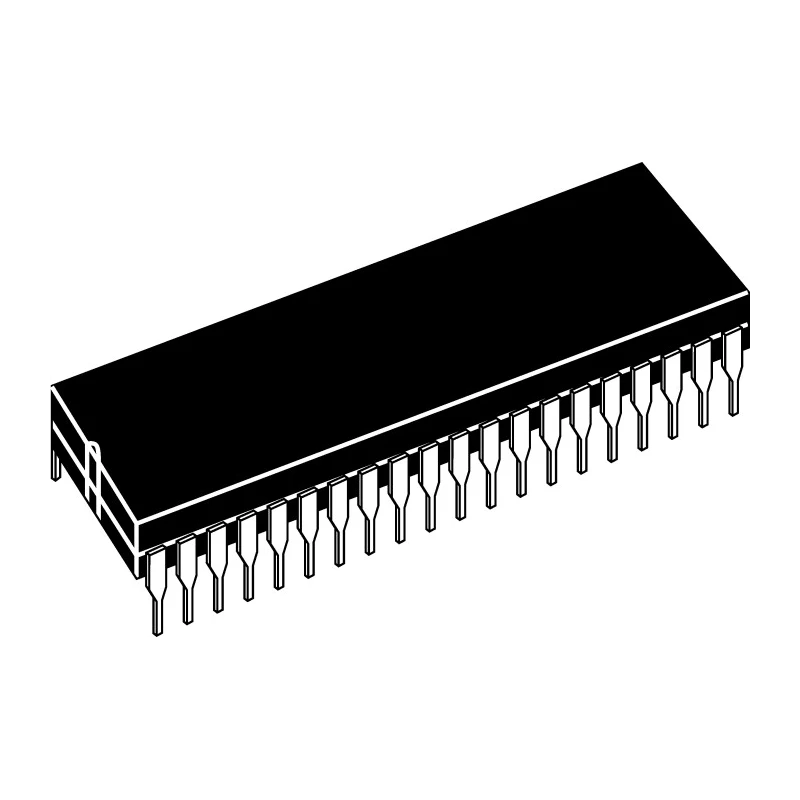

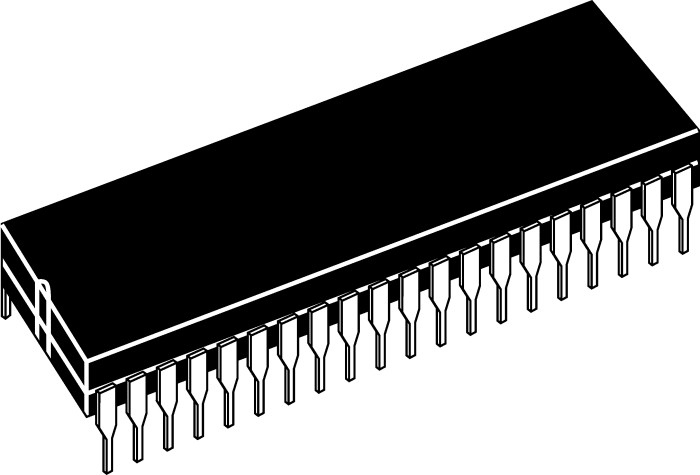

Microchip 15-Bit Multi Slope ADC 40sps 40-Pin PDIP TC850CPL
Specifications
| Country of Origin | India |
|---|---|
| Resolution | 15 bit |
| Brand | Microchip |
| Height | 6.25mm |
| Length | 52.38mm |
| Model | TC850CPL |
| Mount Type | Through Hole |
| Sampling rate | 40sps |
| Series | TC850 |
| Input Type | Voltage |
| Maximum Operating Temperature | 70°C |
| Package Type | PDIP |
| Minimum Operating Temperature | 0°C |
| Interface Type | Parallel |
| Architecture | Multi Slope |
| Pin Count | 40 |
| Maximum Supply Voltage | 5V |
| Minimum Supply Voltage | -5V |
| Number of ADCs | 1 |
| A TO D TSC850CPLBrand | NEUTRAL |
Key Features
- Features a 15-bit resolution for accurate signal conversion.
- Operates at a sampling rate of 40 samples per second.
- Uses a Multi Slope architecture for enhanced performance.
- Available in a 40-pin PDIP package with through-hole mount type.
- Supports parallel interface type for versatile connectivity.
- Operates within a temperature range of 0°C to 70°C.
- Accepts input voltage types and has a minimum supply voltage of -5V and maximum supply voltage of 5V.
- Compact dimensions with length of 52.38mm and height of 6.25mm.
Product Description
Microchip TC850CPL Multi Slope Analogue to Digital Converter (ADC) offers 15-bit resolution and a sampling rate of 40 samples per second. Designed for industrial, laboratory, and instrumentation applications, it provides reliable and precise voltage input conversion in a through-hole 40-pin PDIP package.
This device features a multi slope ADC architecture, facilitating stable and efficient signal acquisition suitable for power management and control system designs. It operates within a temperature range from 0°C to 70°C and supports parallel interface communication, making integration into various electronic circuit boards seamless.
With supply voltage requirements ranging from -5V to 5V, the TC850CPL maintains performance integrity in standard operating conditions. Its compact size of 52.38mm length and 6.25mm height enables usage in space-constrained applications without compromising functionality.
15-bit resolution delivers high accuracy analogue to digital conversion. Multi Slope architecture enhances measurement reliability and noise reduction. Sampling rate of 40 samples per second fits moderate speed data acquisition needs.
Through-hole PDIP 40-pin package facilitates easy mounting on legacy PCBs. Parallel interface simplifies data readout and control. Wide operating temperature range (0°C to 70°C) ensures robust operation in varied environments.
Supports input voltage measurement and standard supply voltage levels. Ideal for instrumentation, process control, and measurement systems in industrial and laboratory environments.
This Microchip TC850CPL ADC is part of the well-regarded TC850 series, trusted for precision and reliability in analogue to digital conversion tasks. It is suitable for applications requiring accurate digital representation of voltage signals in embedded system designs.
Explore the broad range of semiconductor and Analogue to Digital Converter components from Microchip and similar brands on EnvMart for comprehensive sourcing solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It features a resolution of 15 bits for accurate signal conversion.
The TC850CPL operates at a maximum sampling rate of 40 samples per second.
It operates within a temperature range of 0°C to 70°C.
This model supports a parallel interface type for versatile connectivity.
It requires a minimum supply voltage of -5V and a maximum supply voltage of 5V.
The dimensions are 52.38mm in length and 6.25mm in height.
It is available in a 40-pin PDIP package with a through-hole mount type.
This ADC utilizes a Multi Slope architecture for enhanced performance.
This model integrates one ADC.
It is designed for industrial, laboratory, and instrumentation applications, providing reliable voltage input conversion.
The TC850CPL is manufactured in India.
The Multi Slope architecture enhances measurement reliability and reduces noise, making it suitable for power management and control system designs.
