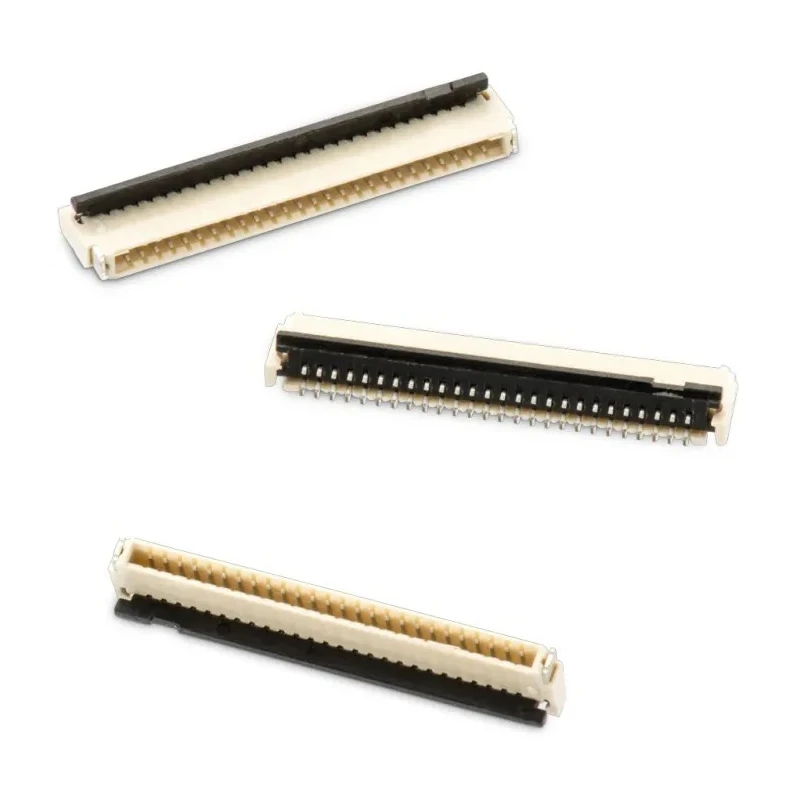

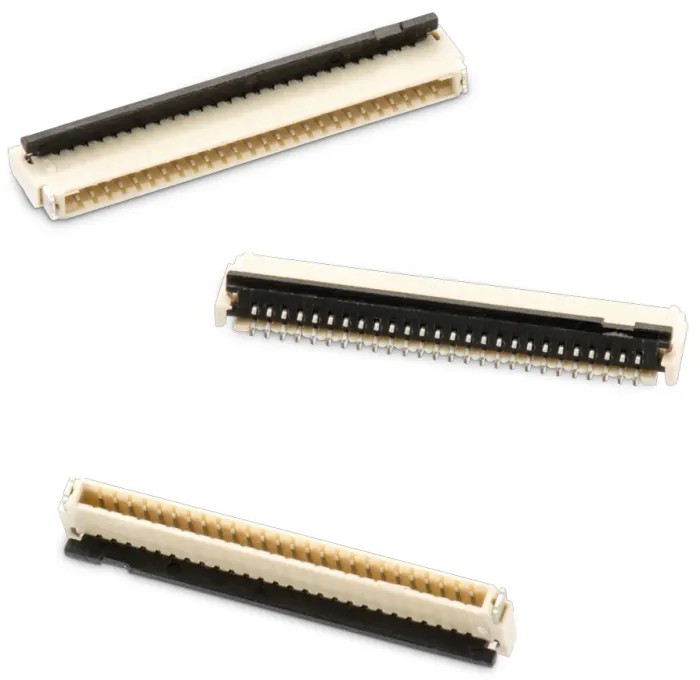

Wurth Elektronik 0.5 mm Pitch 16 Way Horizontal Male FPC Connector Surface Mount 687116182122

Wurth Elektronik 687116182122 is a 16 Way Horizontal Male FPC Connector with 0.5 mm pitch, designed for surface mount applications. This connector provides reliable low current connection with a rating of 500mA and 250V AC voltage capability, making it suitable for high density PCB designs in electronics manufacturing and assembly.

The connector is constructed with phosphor bronze contacts plated with tin over nickel for corrosion resistance and excellent electrical performance. The housing is crafted from durable liquid crystal polymer, offering mechanical strength and thermal stability over a temperature range from -55°C to 85°C.

Featuring a zero insertion force (ZIF) insertion mechanism and locking system, this connector ensures secure connections and ease of assembly. The single-row connector is oriented horizontally with dual contact positions, optimizing space and supporting flexible circuit designs.

Strict adherence to Wurth Elektronik's solder profile is mandatory to maintain warranty and reliability. The connector is not intended for washing processes, and gentle cleaning methods without harsh cleaning agents are recommended to prevent damage to housing and contacts.

This FPC Connector is ideal for applications in industrial electronics, power connectors, and commercial electronic devices, where compact, reliable connections are essential. Its robust design and material selection deliver performance and longevity in demanding environments.

Features 16 contact positions with phosphor bronze contacts for excellent conductivity. Supports a current rating of 500mA and voltage of 250V AC. Utilizes a surface mount termination on a single row housing made from liquid crystal polymer.

Offers a locking mechanism for secure mating and tin over nickel contact plating for enhanced durability. Operates between -55°C and 85°C, suitable for various industrial environments. Designed with a horizontal contact position and dual contact configuration for flexible application.

Meets required solder profile specifications to ensure warranty compliance. Not designed for washing; careful cleaning recommended to maintain connector integrity. Ideal for industrial, commercial, and electronic manufacturing applications.
