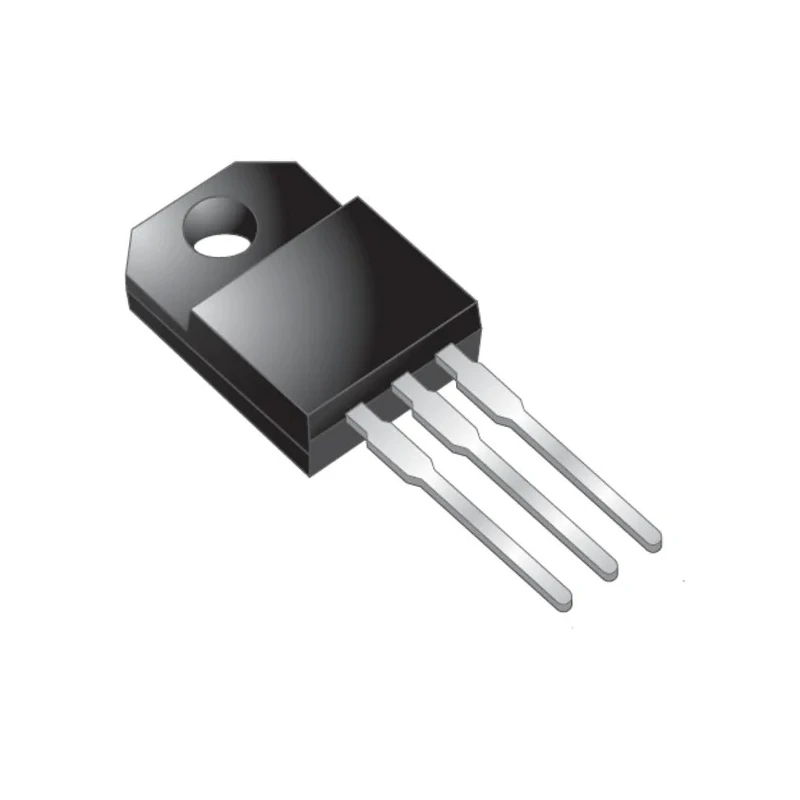

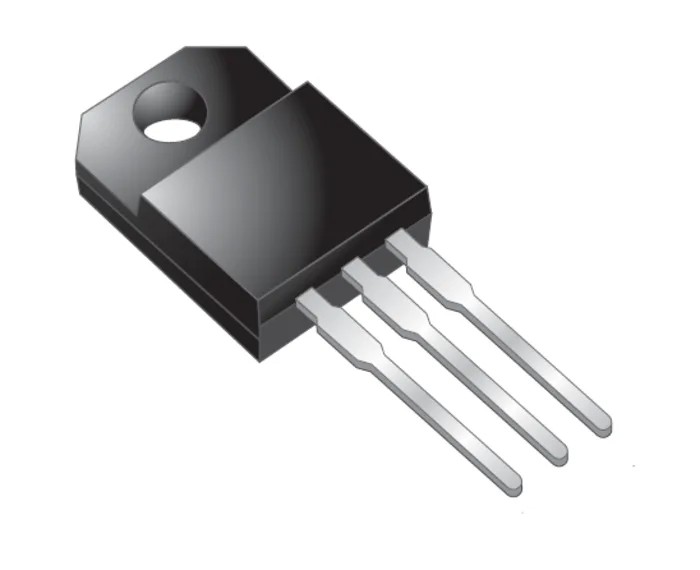

Vishay 100 V 5 A Schottky Barrier Rectifier Surface Mount ITO-220AB MBRF10100CT-M3/4W
Specifications
| Country of Origin | India |
|---|---|
| Brand | Vishay |
| Model | MBRF10100CT-M3/4W |
| Mount Type | Surface |
| Series | FRED Pt |
| Maximum Operating Temperature | 150°C |
| Package Type | ITO-220AB |
| Minimum Operating Temperature | -65°C |
| Standards/Approvals | RoHS |
| Maximum Continuous Forward Current If | 5A |
| Peak Reverse Repetitive Voltage Vrrm | 100V |
| Diode Configuration | 2x Common Cathode Pair |
| Rectifier Type | Schottky |
| Peak Non-Repetitive Forward Surge Current Ifsm | 120A |
| Maximum Forward Voltage Vf | 0.75V |
Key Features
- The rectifier features low forward voltage drop for high efficiency.
- Designed with trench MOS Schottky technology for lower power losses.
- Supports high frequency operation ideal for switching mode power supplies.
- Maximum operating temperature is 150°C ensuring reliable performance.
- Peak non-repetitive surge current capability of 120 A.
- Diode configuration includes 2x common cathode pair.
- Package type is ITO-220AB suitable for surface mounting.
- RoHS compliant ensuring environmental safety and standards.
Product Description
Vishay MBRF10100CT-M3/4W is a high voltage Schottky barrier rectifier designed for surface mount applications. Rated for 100 V reverse voltage and 5 A continuous forward current, this device is ideal for industrial, electronic, and power supply uses that require efficient rectification at high frequencies.
Utilizing trench MOS Schottky technology, the rectifier offers low forward voltage drop, which results in high efficiency and reduced power loss. It supports high surge currents up to 120 A making it suitable for demanding switching mode power supplies, freewheeling diodes, DC/DC converters, and polarity protection circuits.
The diode configuration is a 2x common cathode pair housed in an ITO-220AB surface mount package known for compactness and thermal performance. The device operates reliably across a broad temperature range from -65°C to 150°C, ensuring stable operation in challenging environments.
This Schottky diode is RoHS compliant and designed for use in automotive (non-automotive standard), industrial, laboratory, manufacturing, and commercial electronics applications. The rectifier features low forward voltage drop for high efficiency.
Designed with trench MOS Schottky technology for lower power losses. Supports high frequency operation ideal for switching mode power supplies. Maximum operating temperature is 150°C ensuring reliable performance. Peak non-repetitive surge current capability of 120 A.
Diode configuration includes 2x common cathode pair. Package type is ITO-220AB suitable for surface mounting. RoHS compliant ensuring environmental safety and standards. Minimum operating temperature is -65°C for wide temperature range applications.
The Vishay MBRF10100CT-M3/4W rectifier is a dependable component in power electronics offering efficiency, durability, and broad operational characteristics. Explore similar Schottky diodes and rectifiers from Vishay and other brands in the EnvMart catalog.
Explore more products in our Schottky Diodes & Rectifiers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It has a continuous forward current capacity of 5 A.
The peak non-repetitive forward surge current capability is 120 A.
The operating temperature range is from -65°C to 150°C.
It uses an ITO-220AB package type suitable for surface mounting.
The diode configuration includes a 2x common cathode pair.
The maximum forward voltage drop is 0.75 V.
Yes, this rectifier is RoHS compliant, ensuring it meets environmental safety standards.
It utilizes trench MOS Schottky technology for lower power losses and high efficiency.
The country of origin for this rectifier is India.
This Schottky rectifier belongs to the FRED Pt series.
