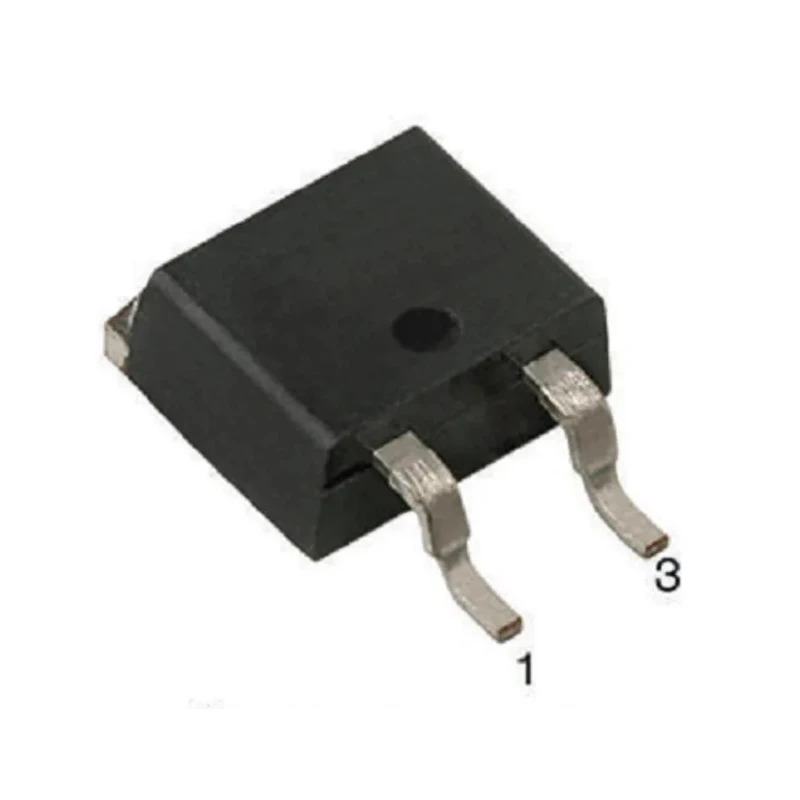

Vishay 600 V 30 A Surface Mount General Purpose Rectifier & Schottky Diode TO-263 Package VS-ETU3006S2LHM3
Specifications
| Country of Origin | India |
|---|---|
| Brand | Vishay |
| Model | VS-ETU3006S2LHM3 |
| Mount Type | Surface |
| Series | FRED Pt |
| Maximum Operating Temperature | 175°C |
| Package Type | TO-263 |
| Minimum Operating Temperature | -55°C |
| Standards/Approvals | RoHS |
| Automotive Standard | AEC-Q101 |
| Maximum Continuous Forward Current If | 30A |
| Peak Reverse Repetitive Voltage Vrrm | 600V |
| Diode Configuration | Single |
| Rectifier Type | General Purpose |
| Peak Non-Repetitive Forward Surge Current Ifsm | 160A |
| Maximum Forward Voltage Vf | 1.1V |
Key Features
- Designed for discontinuous mode power factor correction applications.
- Low forward voltage drop minimizes conduction loss for high efficiency.
- Ultrafast recovery time to reduce switching losses and over dissipation.
- Operating junction temperature up to 175°C for high thermal stability.
- Low leakage current enhances reliability and efficiency in circuits.
- AEC-Q101 qualified and RoHS compliant ensuring automotive and environmental standards.
- Meets JESD 201 class 2 whisker test for improved quality assurance.
- Suitable as a freewheeling diode in power supplies and various power switching applications.
Product Description
The Vishay VS-ETU3006S2LHM3 is a high-performance 600 V, 30 A rectifier and Schottky diode designed for surface mount applications in TO-263 package. It excels in discontinuous (critical) mode power factor correction, where minimized conduction loss, optimized stored charge, and low recovery current contribute to reduced switching losses and thermal dissipation.
This general purpose diode offers a maximum continuous forward current of 30 A and can withstand peak non-repetitive forward surge currents up to 160 A. Its low forward voltage of 1.1 V ensures efficient power conversion and reduced heat generation. The device operates reliably in harsh environments with a temperature range from -55°C to 175°C junction temperature.
Designed to meet stringent automotive requirements, the diode is AEC-Q101 qualified and complies with RoHS standards. It successfully passes JESD 201 class 2 whisker testing, providing assurance of long-term durability and performance. The low leakage and ultrafast recovery time make this component ideal for freewheeling diode usage in power supplies and power switching circuits.
The TO-263 package supports robust surface mounting, facilitating ease of assembly in industrial, automotive, and consumer electronics applications. It is a reliable choice for engineers seeking efficient rectification in power electronics.
Surface mount TO-263 package for space-saving and automated assembly. High current rating suitable for demanding power conversion projects. Automotive-grade qualification for critical circuit use cases. Low conduction and switching losses to enhance overall system efficiency.
Wide operating temperature range supports harsh industrial conditions. Complies with environmental and safety standards including RoHS.
Explore the Vishay range of semiconductors and diode components on EnvMart for reliable power rectification solutions tailored to industrial, automotive, manufacturing, and commercial electronic systems.
Explore more products in our Schottky Diodes & Rectifiers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current for the Vishay VS-ETU3006S2LHM3 is 30 A.
This model has a peak reverse repetitive voltage rating of 600 V.
The maximum operating temperature for the VS-ETU3006S2LHM3 is 175°C.
It comes in a TO-263 package, suitable for surface mounting.
The minimum operating temperature for this rectifier is -55°C.
The maximum forward voltage drop for the VS-ETU3006S2LHM3 is 1.1 V.
The peak non-repetitive forward surge current rating is 160 A.
Yes, it is AEC-Q101 qualified, ensuring it meets automotive standards.
The diode complies with RoHS standards and has passed the JESD 201 class 2 whisker test.
This model is suitable for discontinuous mode power factor correction and can be used as a freewheeling diode in power supplies.
The diode configuration for the VS-ETU3006S2LHM3 is single.
The Vishay VS-ETU3006S2LHM3 is manufactured in India.
