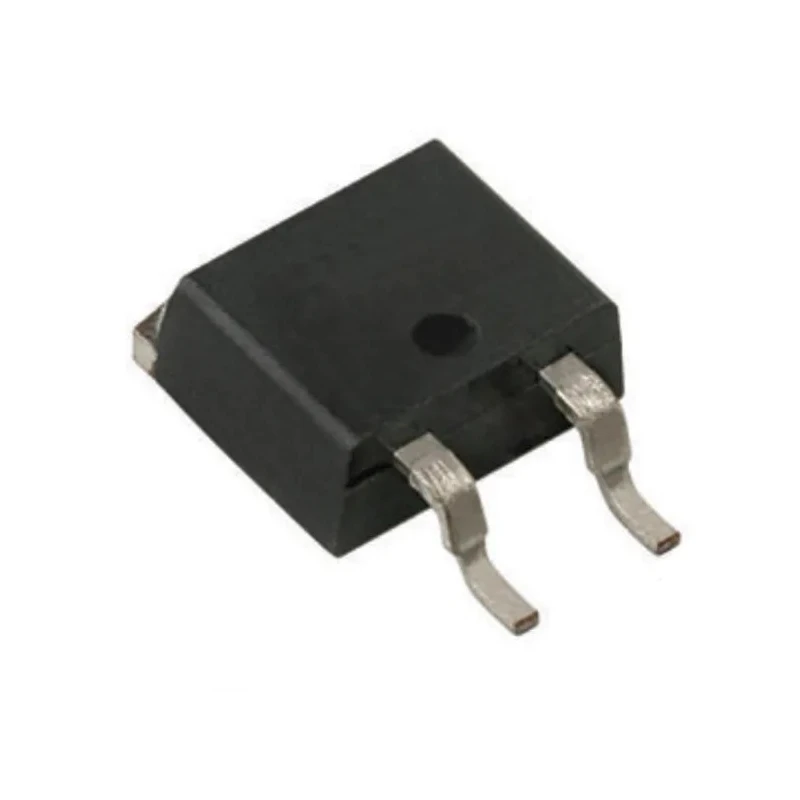

Vishay 1200 V 15 A General Purpose Rectifier & Schottky Diode Surface Mount TO-263 Package VS-E5TH1512S2LHM3
Specifications
| Country of Origin | India |
|---|---|
| Brand | Vishay |
| Model | VS-E5TH1512S2LHM3 |
| Mount Type | Surface |
| Series | FRED Pt |
| Maximum Operating Temperature | 175°C |
| Package Type | TO-263 |
| Minimum Operating Temperature | -55°C |
| Standards/Approvals | RoHS |
| Automotive Standard | AEC-Q101 |
| Maximum Continuous Forward Current If | 15A |
| Peak Reverse Repetitive Voltage Vrrm | 1200V |
| Diode Configuration | Single |
| Rectifier Type | General Purpose |
| Peak Non-Repetitive Forward Surge Current Ifsm | 125A |
| Maximum Forward Voltage Vf | 1.7V |
Key Features
- Features a surface mount TO-263 package suitable for efficient PCB mounting.
- Supports maximum continuous forward current of 15 amperes for robust power handling.
- Peak reverse repetitive voltage rated at 1200 volts ensures reliable blocking capability.
- Optimized for fast switching and low conduction losses in power electronics.
- Operates within a temperature range from -55°C to 175°C for harsh environments.
- Complies with RoHS standards for environmental and safety compliance.
- Qualified to Automotive AEC-Q101 standard for high reliability in automotive applications.
- Meets moisture sensitivity level 1 with polyimide passivation ensuring durability.
Product Description
Vishay VS-E5TH1512S2LHM3 is a high-performance rectifier and Schottky diode designed for general-purpose use in power and semiconductor applications. This device features a robust TO-263 surface mount package enabling compact and reliable PCB integration.
With a maximum continuous forward current of 15 A and a peak reverse repetitive voltage of 1200 V, it delivers excellent electrical performance. The diode is optimized for low forward voltage drop and fast switching to reduce conduction and switching losses, making it ideal for high-frequency converter circuits.
Its extended operating temperature range from -55°C to 175°C and compliance with the automotive qualification standard AEC-Q101 ensure reliable operation under demanding automotive and industrial conditions. The polyimide passivation layer provides moisture resistance meeting moisture sensitivity level 1, preserving device integrity over the product lifetime.
Common industrial applications include power factor correction (PFC) and output rectification stages in electric vehicle (EV) and hybrid electric vehicle (HEV) battery chargers, booster stages in solar photovoltaic inverters, and uninterruptible power supply (UPS) systems. Its design enables compatibility with MOSFETs and IGBTs for efficient power management.
Features a surface mount TO-263 package for ease of assembly and thermal management. Maximum continuous forward current rating of 15 amperes supports heavy load conditions. Peak reverse voltage capability of 1200 volts ensures stability under high voltage stress.
Low forward voltage drop and fast recovery enable optimized switching performance. Extended operating temperature range from -55° to 175°C accommodates industrial and automotive environments. Automotive AEC-Q101 qualification supports usage in vehicle electronics.
RoHS compliant ensuring environmentally responsible manufacture. Polyimide passivation protects from moisture and contamination. Versatile use in EV chargers, renewable energy inverters, and UPS applications. Compatibility with MOSFETs and high-speed IGBTs for efficient switching stages.
Explore the Vishay range of rectifiers and Schottky diodes in the EnvMart catalog for reliable semiconductor components tailored to demanding industrial and automotive applications.
Explore more products in our Schottky Diodes & Rectifiers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current rating of this model is 15 amperes, which supports heavy load conditions in various applications.
This diode has a peak reverse repetitive voltage rating of 1200 volts, ensuring reliable blocking capability under high voltage stress.
It operates within a temperature range from -55°C to 175°C, making it suitable for harsh industrial and automotive environments.
The Vishay VS-E5TH1512S2LHM3 is housed in a surface mount TO-263 package, which facilitates efficient PCB mounting and thermal management.
Yes, it is RoHS compliant, ensuring environmentally responsible manufacturing practices.
This model is qualified to the Automotive AEC-Q101 standard, ensuring high reliability for automotive applications.
The maximum forward voltage drop for this rectifier is 1.7 volts, which contributes to its low conduction losses.
It is suitable for applications including power factor correction (PFC), output rectification in electric vehicle chargers, and booster stages in solar inverters.
The peak non-repetitive forward surge current rating for this diode is 125 amperes, allowing it to handle short bursts of high current.
It is optimized for fast switching and low conduction losses, making it ideal for high-frequency converter circuits.
This rectifier features a single diode configuration, suitable for general-purpose applications in power electronics.
The diode features polyimide passivation, which provides moisture resistance and meets moisture sensitivity level 1.
