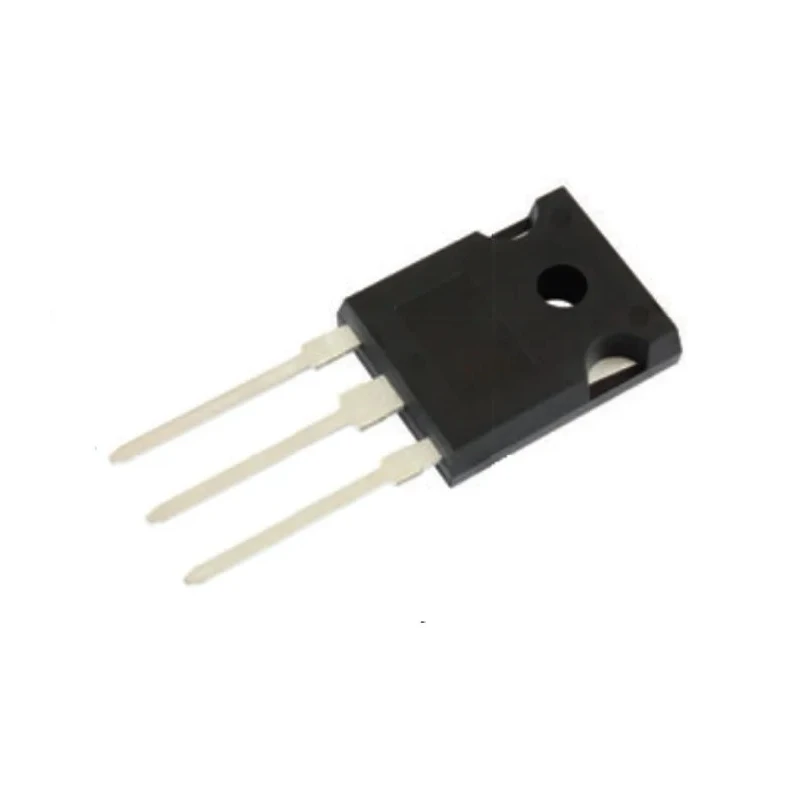

Vishay 400 V 30 A General Purpose Ultrafast Rectifier & Schottky Diode TO-247AD VS-30CPU04LHN3
Specifications
| Country of Origin | India |
|---|---|
| Brand | Vishay |
| Model | VS-30CPU04LHN3 |
| Mount Type | Surface |
| Series | FRED Pt |
| Maximum Operating Temperature | 175°C |
| Package Type | TO-247AD |
| Minimum Operating Temperature | -55°C |
| Standards/Approvals | RoHS |
| Automotive Standard | AEC-Q101 |
| Maximum Continuous Forward Current If | 30A |
| Peak Reverse Repetitive Voltage Vrrm | 400V |
| Diode Configuration | 2x Common Cathode Pair |
| Rectifier Type | General Purpose |
| Peak Non-Repetitive Forward Surge Current Ifsm | 200A |
| Maximum Forward Voltage Vf | 0.93V |
Key Features
- Optimized for low forward voltage drop and ultrafast recovery time.
- Constructed with planar technology featuring platinum doped lifetime control for high reliability.
- Suitable for output rectification in SMPS, UPS, DC/DC converters and freewheeling diodes in motor drives.
- Operates efficiently at junction temperatures up to 175°C with low leakage current.
- Qualified to automotive standard AEC-Q101 and meets RoHS compliance.
- Features a 2x common cathode pair diode configuration in TO-247AD surface mount package.
- Supports peak non-repetitive forward surge current of 200 A.
- Wide operating temperature range from -55°C to 175°C.
Product Description
Vishay VS-30CPU04LHN3 is a high-performance general purpose ultrafast rectifier and Schottky diode designed in a TO-247AD surface mount package. Rated at 400 V peak reverse repetitive voltage and 30 A maximum continuous forward current, this diode is engineered for demanding industrial and automotive applications.
Constructed utilizing planar technology with platinum doped lifetime control, the device ensures minimized forward voltage drop and superior ultrafast recovery characteristics. These features translate to lower switching losses and improved thermal efficiency, critical for power applications.
This diode module features a 2x common cathode pair configuration and supports a peak non-repetitive forward surge current of 200 A, making it robust for transient load conditions. It operates reliably over a wide temperature range from -55°C to 175°C, suitable for harsh environments including automotive systems compliant with AEC-Q101 standards.
Typical applications include output rectification stages in switching mode power supplies (SMPS), uninterrupted power supplies (UPS), DC/DC converters, and freewheeling diodes in low voltage inverter and chopper motor drives. Its low leakage current and high junction temperature rating improve system reliability and efficiency.
Optimized ultrafast recovery for reduced switching losses. Advanced planar structure ensuring ruggedness and reliability. 2x common cathode diode configuration in TO-247AD package. AEC-Q101 qualified for automotive grade usage.
Wide temperature operation from -55°C to 175°C. Low forward voltage drop enhances energy efficiency. RoHS compliant meeting environmental regulations. High peak surge current capability of 200 A.
Explore the Vishay range of discrete semiconductors for reliable power conversion solutions and browse EnvMart's extensive electronics component offerings for industrial, automotive, and commercial applications.
Explore more products in our Schottky Diodes & Rectifiers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current rating of the Vishay VS-30CPU04LHN3 is 30 A.
This model has a peak reverse repetitive voltage rating of 400 V.
It operates reliably over a wide temperature range from -55°C to 175°C.
The diode features a 2x common cathode pair configuration.
The maximum forward voltage drop for this diode is 0.93 V.
It supports a peak non-repetitive forward surge current of 200 A.
This diode is designed in a TO-247AD surface mount package.
Yes, it is qualified to the automotive standard AEC-Q101.
The Vishay VS-30CPU04LHN3 complies with RoHS standards.
It is constructed using planar technology with platinum doped lifetime control.
Typical applications include output rectification in switching mode power supplies (SMPS), UPS, DC/DC converters, and freewheeling diodes in motor drives.
The country of origin for this diode is India.
