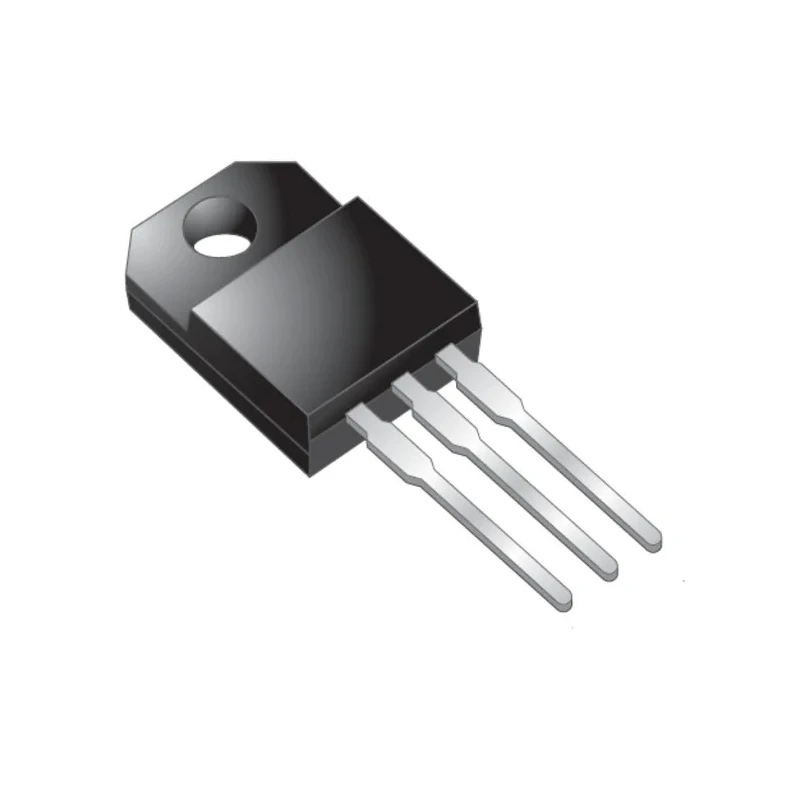

Vishay 100 V 5 A Schottky Barrier Schottky Rectifier ITO-220AB MBRF10100CT-M3/4W
Specifications
| Country of Origin | India |
|---|---|
| Brand | Vishay |
| Model | MBRF10100CT-M3/4W |
| Mount Type | Surface |
| Series | FRED Pt |
| Maximum Operating Temperature | 150°C |
| Package Type | ITO-220AB |
| Minimum Operating Temperature | -65°C |
| Standards/Approvals | RoHS |
| Maximum Continuous Forward Current If | 5A |
| Peak Reverse Repetitive Voltage Vrrm | 100V |
| Diode Configuration | 2x Common Cathode Pair |
| Rectifier Type | Schottky |
| Peak Non-Repetitive Forward Surge Current Ifsm | 120A |
| Maximum Forward Voltage Vf | 0.75V |
Key Features
- Features trench MOS Schottky technology for lower power losses and high efficiency.
- Offers a low forward voltage drop of 0.75 V for improved performance.
- Supports high forward surge current capability of up to 120 A.
- Operates effectively across a wide temperature range from -65°C to 150°C.
- Designed for high-frequency switching power supplies and DC/DC converters.
- Comes in an ITO-220AB surface mount package suitable for electronic assemblies.
- Includes diode configuration of 2x common cathode pair for dual diode use.
- Meets RoHS standards ensuring compliance with environmental regulations.
Product Description
Vishay MBRF10100CT-M3/4W Schottky Barrier Rectifier is a new high-performance electronic component designed for use in semiconductor applications. It features a 100 V peak reverse repetitive voltage rating and a maximum continuous forward current of 5 A. Packaged in the ITO-220AB surface mount format, this dual diode device employs trench MOS Schottky technology, enabling lower power losses and high efficiency in electronic circuits.
This rectifier offers a low maximum forward voltage of 0.75 V, ensuring reduced heat dissipation and improved energy efficiency. Its peak non-repetitive forward surge current rating is 120 A, allowing it to handle transient overloads effectively. It operates reliably over a temperature range from -65°C to 150°C, making it suitable for demanding industrial environments.
The diode configuration is a 2x common cathode pair, ideal for bridge rectifier applications or similar dual diode uses. It complies with RoHS environmental standards but is not specified for automotive-grade use. Typical applications include switching mode power supplies, DC/DC converters, freewheeling diodes, and polarity protection circuits.
Designed for surface mounting, it integrates seamlessly into modern printed circuit board designs. The device supports high-frequency operation with low forward voltage drop, contributing to overall system efficiency.
Utilizes trench MOS Schottky technology to minimize energy loss. Low forward voltage drop reduces operational heat and increases system reliability. High forward surge capability supports transient load conditions in power electronics.
Wide operating temperature range enhances suitability in various industrial and laboratory equipment. RoHS compliant ensuring adherence to environmental and safety requirements. Dual diode configuration simplifies circuit design in switching power supplies.
Package type ITO-220AB allows robust surface mount assembly. Typical uses include switching mode power supplies and DC/DC converter protection. Not recommended for automotive applications. Crafted by Vishay, ensuring quality and reliability in semiconductor components.
Explore other Vishay semiconductor products and Schottky Diodes & Rectifiers at EnvMart for industrial and electronic component needs.
Explore more products in our Schottky Diodes & Rectifiers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current for the Vishay MBRF10100CT-M3/4W is 5 A.
This model has a peak reverse repetitive voltage rating of 100 V.
The diode configuration is a 2x common cathode pair, suitable for dual diode applications.
The maximum forward voltage drop for this rectifier is 0.75 V.
It supports a peak non-repetitive forward surge current of up to 120 A.
The operating temperature range is from -65°C to 150°C.
It comes in an ITO-220AB surface mount package.
Yes, it meets RoHS standards, ensuring compliance with environmental regulations.
Typical applications include switching mode power supplies, DC/DC converters, and freewheeling diodes.
It employs trench MOS Schottky technology for lower power losses and high efficiency.
This rectifier is part of the FRED Pt series.
Key features include a low forward voltage drop, high surge current capability, and a wide operating temperature range.
