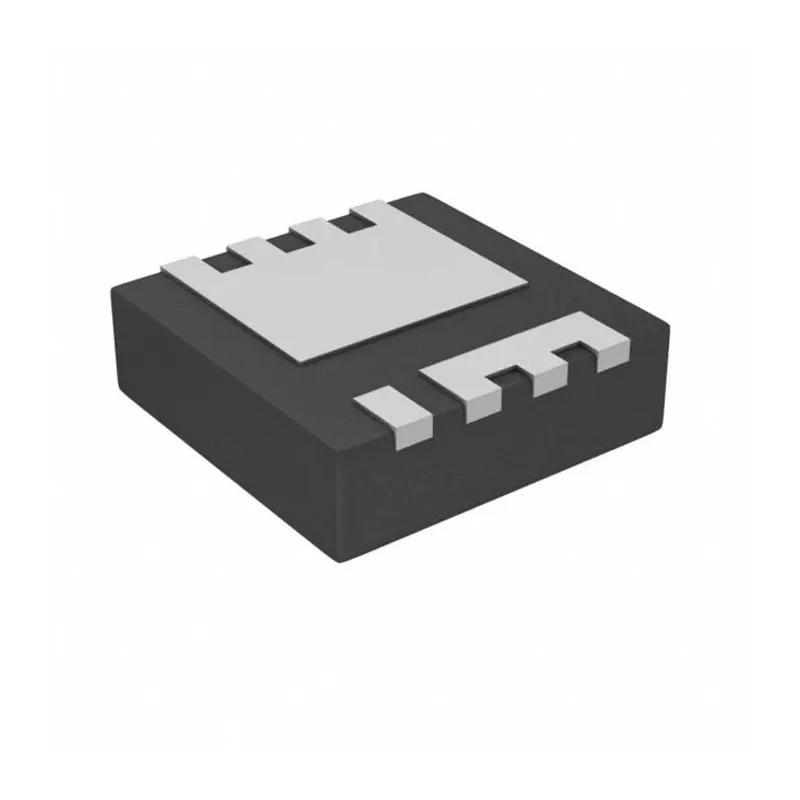

Infineon BSZ N-Channel MOSFET, 212 A, 40 V, TSDSON-8 FL Package BSZ011NE2LS5IATMA1
Specifications
| Country of Origin | India |
|---|---|
| Brand | Infineon |
| Model | BSZ011NE2LS5IATMA1 |
| Mount Type | Surface |
| Series | BSZ |
| Maximum Operating Temperature | 175°C |
| Package Type | TSDSON-8 FL |
| Minimum Operating Temperature | -55°C |
| Standards/Approvals | RoHS |
| Pin Count | 8 |
| Channel Type | N |
| Maximum Continuous Drain Current Id | 212A |
| Maximum Drain Source Voltage Vds | 40V |
| Maximum Drain Source Resistance Rds | 0.7mΩ |
| Channel Mode | N |
| Maximum Power Dissipation Pd | 81W |
| Typical Gate Charge Qg @ Vgs | 80nC |
| Maximum Gate Source Voltage Vgs | 20V |
| Forward Voltage Vf | 1V |
Key Features
- Optimized for high-performance buck converters with low on-resistance.
- Features a monolithic integrated Schottky-like diode for improved efficiency.
- Supports a maximum power dissipation of 81 W providing robust thermal handling.
- Operates reliably across a wide temperature range from -55°C to 175°C.
- Typical gate charge of 80 nC at Vgs ensures efficient switching performance.
- Compliant with RoHS standards and halogen-free according to IEC61249-2-21.
- Surface mount type suitable for modern PCB assembly processes.
- Maximum gate-source voltage rating of 20 V allows safe driving conditions.
Product Description
Infineon BSZ011NE2LS5IATMA1 is an advanced N-channel power MOSFET designed for industrial and electronic applications requiring high current handling with low losses. With a maximum continuous drain current of 212 A and a drain-source voltage rating of 40 V, this device is ideally suited for use in high-efficiency DC/DC converters such as buck converters.
The device features an 8-pin TSDSON-8 FL package, which ensures a compact footprint and excellent thermal dissipation characteristics necessary for power applications. Its monolithic integrated Schottky-like diode enhances switching efficiency by minimizing reverse recovery losses.
Operating temperature range from -55°C to 175°C makes it suitable for demanding industrial environments. The low on-resistance of 0.7 milliohms minimizes conduction losses, thereby offering improved energy efficiency and thermal performance.
This MOSFET is RoHS compliant and halogen-free, aligning with environmental and regulatory requirements. With a typical gate charge of 80 nC and a maximum gate-source voltage of 20 V, it provides efficient switching and reliability in electronic circuits.
Optimized for use in high-performance buck converters. Halogen-free and RoHS compliant ensuring environmental safety. Monolithic integrated Schottky-like diode for reduced switching losses. Low on-resistance of 0.7 milliohms to improve efficiency.
Surface mount TSDSON-8 FL package for space-saving PCB designs. Wide operating temperature range from -55°C to +175°C for industrial applications. Maximum power dissipation of 81 W ensures reliable operation under load. Forward voltage drop of 1 V aids in reducing power loss.
Ideal for industrial, electronics manufacturing, and power conversion applications. Explore the full range of Semiconductors and Power MOSFETs on EnvMart, where you can find reliable solutions from Infineon and other top brands for your power electronics needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous drain current of this model is 212 A, making it suitable for high current applications.
This MOSFET has a maximum drain-source voltage rating of 40 V, allowing it to operate safely in various applications.
The on-resistance is 0.7 milliohms, which helps minimize conduction losses and improve energy efficiency.
It comes in a TSDSON-8 FL package, which is designed for surface mounting and offers excellent thermal dissipation.
The operating temperature range is from -55°C to 175°C, making it suitable for demanding industrial environments.
The typical gate charge is 80 nC at Vgs, which ensures efficient switching performance.
It supports a maximum power dissipation of 81 W, providing robust thermal handling capabilities.
Yes, this model is RoHS compliant and halogen-free, aligning with environmental and regulatory standards.
The forward voltage drop is 1 V, which aids in reducing power loss during operation.
This device features 8 pins, which is typical for its package type and allows for efficient PCB layout.
It is optimized for high-performance buck converters, making it suitable for power conversion applications.
The maximum gate-source voltage rating is 20 V, allowing for safe driving conditions in electronic circuits.
