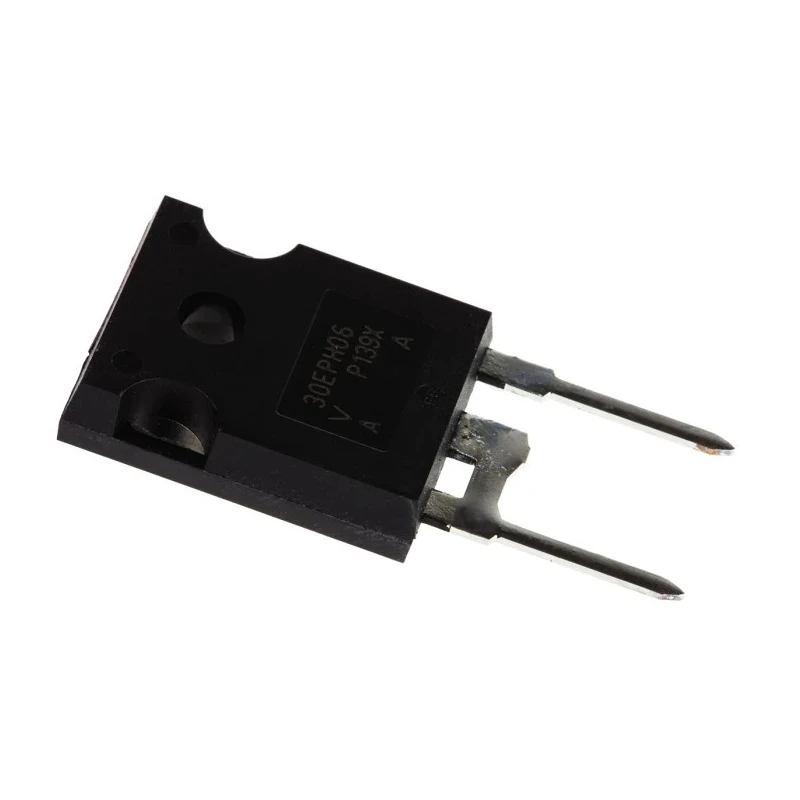

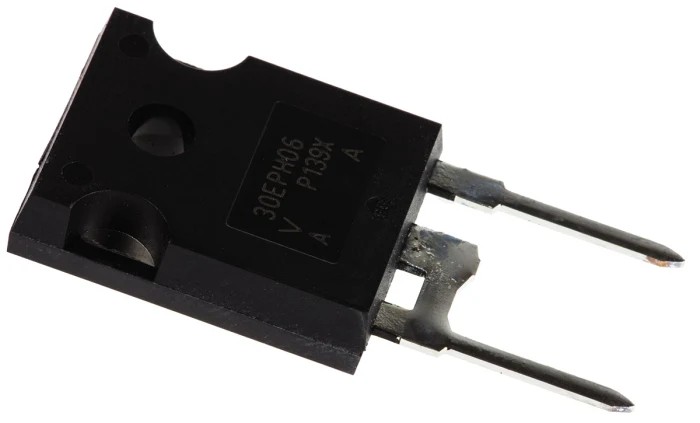

Vishay 600 V 30 A Switching Diode 2-Pin TO-247AC VS-EPH3006-N3
Specifications
| Country of Origin | India |
|---|---|
| Diameter | 13mm |
| Brand | Vishay |
| Height | 20.7mm |
| Length | 15.9mm |
| Model | VS-EPH3006-N3 |
| Width | 5.3mm |
| Mount Type | Through Hole |
| Series | VSX |
| Maximum Operating Temperature | 175°C |
| Package Type | TO-247AC |
| Minimum Operating Temperature | -65°C |
| Standards/Approvals | RoHS |
| Pin Count | 2 |
| Maximum Continuous Forward Current If | 30A |
| Peak Reverse Repetitive Voltage Vrrm | 600V |
| Diode Configuration | Single |
| Rectifier Type | Switching |
| Peak Reverse Current Ir | 50μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 300A |
| Maximum Forward Voltage Vf | 2.6V |
| Peak Reverse Recovery Time trr | 35ns |
| Vishay 600V 30A, Silicon Junction Diode, 2-Pin TO-247AC 30EPH06Brand | Vishay |
Key Features
- This diode features a maximum continuous forward current of 30 A, suitable for heavy-duty electronic circuits.
- The peak reverse repetitive voltage rating is 600 V, ensuring high voltage tolerance.
- It has an ultrafast recovery time of 35 ns, enhancing efficiency in switching operations.
- The diode supports a peak non-repetitive forward surge current of up to 300 A for transient conditions.
- Operating temperature ranges from -65°C to 175°C, allowing use in harsh environments.
- Its single diode configuration in a through-hole TO-247AC package ensures ease of mounting and durability.
- The maximum forward voltage drop is 2.6 V, reducing power loss during conduction.
- Pin count is 2, consistent with diode switching configurations.
Product Description
Vishay VS-EPH3006-N3 is a robust 600 V, 30 A switching diode designed for use in power and electronic applications requiring high efficiency and reliability. Its construction ensures effective handling of continuous and surge currents within a through-hole TO-247AC package, facilitating easy integration into printed circuit boards for industrial, commercial, and consumer electronics.
This diode offers a peak reverse repetitive voltage rating of 600 V, which enables it to withstand high reverse voltages in switching circuits. Featuring an ultrafast recovery time of 35 nanoseconds, the VS-EPH3006-N3 diode minimizes switching losses and improves circuit efficiency, especially in high-frequency applications.
The device supports a peak non-repetitive forward surge current of 300 A, allowing it to handle transient overloads without damage. Operating temperature specifications ranging from -65°C to 175°C make it suitable for use in severe thermal environments, including automotive and industrial sectors.
The diode has a single configuration with two pins in the TO-247AC package type, providing reliable mechanical and electrical connection. It exhibits a maximum forward voltage drop of 2.6 V, reducing power dissipation in conduction mode. The diode complies with RoHS standards, contributing to environmentally friendly manufacturing practices.
Maximum continuous forward current: 30 A. Peak reverse repetitive voltage: 600 V. Ultrafast peak reverse recovery time: 35 ns. Peak non-repetitive forward surge current: 300 A. Operating temperature range: -65°C to 175°C.
Package type: TO-247AC through-hole mounting. Single diode configuration with 2 pins. Maximum forward voltage of 2.6 V. RoHS compliant for environmental safety. Compact dimensions suitable for multiple industrial applications.
This switching diode is ideal for use in industrial power supply units, motor drives, power inverters, and other electronic equipment requiring rapid switching and high current handling. Its robust performance and reliable specifications make it a dependable choice for electronics manufacturers and engineers.
Explore the Vishay range and other semiconductor components on EnvMart for your electronic design and manufacturing needs.
Explore more products in our Schottky Diodes & Rectifiers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current of the Vishay VS-EPH3006-N3 is 30 A.
This model has a peak reverse repetitive voltage rating of 600 V, allowing it to withstand high reverse voltages in switching circuits.
The diode features an ultrafast recovery time of 35 ns, which helps minimize switching losses and improve circuit efficiency.
It supports a peak non-repetitive forward surge current of up to 300 A for transient conditions.
The operating temperature range is from -65°C to 175°C, making it suitable for harsh environments.
This diode comes in a TO-247AC package type, which is designed for through-hole mounting.
The maximum forward voltage drop is 2.6 V, which helps reduce power loss during conduction.
This model has a pin count of 2, consistent with standard diode configurations.
The dimensions of the Vishay VS-EPH3006-N3 are 15.9 mm in length, 5.3 mm in width, and 20.7 mm in height.
The VS-EPH3006-N3 is a switching diode, designed for high efficiency in power and electronic applications.
Yes, the diode complies with RoHS standards, contributing to environmentally friendly manufacturing practices.
This diode is suitable for use in industrial power supply units, motor drives, and power inverters, among other electronic equipment requiring rapid switching.
