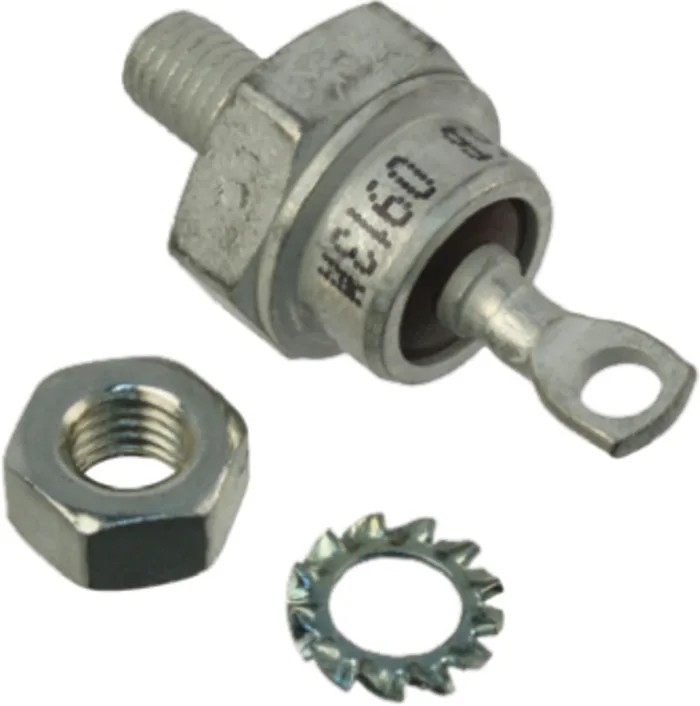

Vishay 1200 V 85 A Standard Recovery Switching Diode 2-Pin DO-203AB VS-85HFR120
Specifications
| Country of Origin | India |
|---|---|
| Diameter | 17.35mm |
| Brand | Vishay |
| Height | 22.9mm |
| Length | 20.02mm |
| Model | VS-85HFR120 |
| Width | 17.35mm |
| Mount Type | Screw |
| Series | VS-85HF |
| Maximum Operating Temperature | 180°C |
| Package Type | DO-203AB |
| Minimum Operating Temperature | -65°C |
| Pin Count | 2 |
| Maximum Continuous Forward Current If | 85A |
| Peak Reverse Repetitive Voltage Vrrm | 1200V |
| Diode Configuration | Stud Anode |
| Rectifier Type | Switching |
| Peak Reverse Current Ir | 9mA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 1.8kA |
| Maximum Forward Voltage Vf | 1.2V |
| Vishay 800 V 85 A Diode Switching 2-Pin DO-203ABBrand | Vishay |
Key Features
- Designed for high efficiency and versatility in power diode applications.
- Standard recovery rectifier suitable for industrial and electronic use.
- Operating temperature range from -65°C to 180°C for robust thermal tolerance.
- Stud anode configuration with screw mount type for secure installation.
- Peak non-repetitive forward surge current of 1.8 kA ensuring durability under surge conditions.
- Maximum forward voltage drop of 1.2 V for efficient conduction.
- 2-pin configuration for straightforward circuit integration.
- No automotive standard approvals but suitable for general semiconductor applications.
Product Description
Vishay VS-85HFR120 is a high-current, high-voltage standard recovery switching diode designed for robust electronic and power applications. It supports a maximum continuous forward current of 85 A and can withstand peak reverse voltages up to 1200 V, making it ideal for demanding environments.
This diode uses a DO-203AB package with two pins and a stud anode configuration that ensures easy mounting and reliable connections with a screw mount type. It operates efficiently with a maximum forward voltage of 1.2 V and has a peak non-repetitive forward surge current rating of 1.8 kA, which guarantees solid performance during transient surge conditions.
The device features a wide operating temperature range of -65°C to 180°C, allowing it to function reliably in harsh thermal environments. Its compact dimensions, including a length of 20.02 mm, width and diameter of 17.35 mm, and height of 22.9 mm, make it suitable for space-constrained applications.
High efficiency and versatility in standard recovery power diodes. Suitable for industrial electronics, power supplies, and switching applications. Reliable thermal performance from -65°C to 180°C operation. Compact and durable DO-203AB package with stud anode.
High surge current capacity for transient protection.
This diode is an excellent choice for engineers and technicians involved in power electronics, semiconductor circuits, and industrial applications requiring high voltage and current handling capacity with reliable standard recovery characteristics.
Explore our range of Vishay semiconductors and diodes for high quality and dependable components suitable for various electronic design and manufacturing needs on EnvMart.
Explore more products in our Schottky Diodes & Rectifiers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current rating of this model is 85 A.
It can withstand a peak reverse voltage of up to 1200 V.
The maximum forward voltage drop for this diode is 1.2 V.
This diode uses a DO-203AB package type.
The operating temperature range is from -65°C to 180°C.
The peak non-repetitive forward surge current rating is 1.8 kA.
It features a stud anode configuration with a screw mount type for secure installation.
The dimensions are 20.02 mm in length, 17.35 mm in width, and 22.9 mm in height.
The diode configuration is a stud anode.
The peak reverse current is rated at 9 mA.
This model is suitable for industrial electronics, power supplies, and switching applications.
The country of origin for this diode is India.
