Vishay 1200 V 40 A Switching Diode 2-Pin DO-203AB VS-40HFR120

Free Delivery in India | Lowest Global Shipping Charges

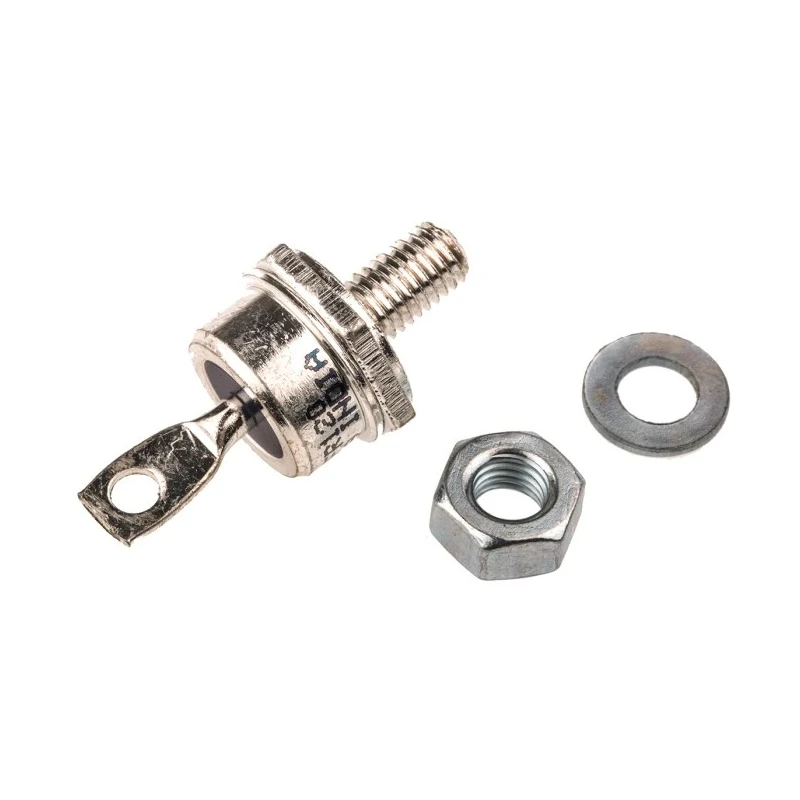

Vishay 1200 V 40 A Switching Diode 2-Pin DO-203AB VS-40HFR120

Name: Vishay 1200 V 40 A Switching Diode 2-Pin DO-203AB VS-40HFR120
Brand: Vishay
SKU: 294521
Price: 9.06 USD
Availability: InStock



Category Schottky Diodes & Rectifiers Brand Vishay Condition New

Specifications

Country of Origin	India
Diameter	17.4mm
Brand	Vishay
Height	22.9mm
Length	20.08mm
Model	VS-40HFR120
Width	17.4mm
Mount Type	Screw
Series	VS-40HF
Maximum Operating Temperature	190°C
Package Type	DO-203AB
Minimum Operating Temperature	-65°C
Pin Count	2
Maximum Continuous Forward Current If	40A
Peak Reverse Repetitive Voltage Vrrm	1200V
Diode Configuration	Stud Anode
Rectifier Type	Switching
Peak Reverse Current Ir	9mA
Peak Non-Repetitive Forward Surge Current Ifsm	595A
Maximum Forward Voltage Vf	1.3V
Vishay 800 V 40 A Diode Switching 2-Pin DO-203ABBrand	Vishay

Key Features

This diode features a stud anode configuration for reliable connectivity.
Maximum forward voltage of 1.3 V ensures efficient power handling.
Operates over a temperature range of -65°C to 190°C for versatile application.
Peak non-repetitive forward surge current is 595 A, tolerating transient surges.
Compact dimensions of 22.9 mm height and 17.4 mm diameter enable space-saving designs.
Designed without automotive certification but suitable for standard industrial use.
2-pin package ensures simplified mounting with screw installation type.
Low peak reverse current of 9 mA minimizes leakage and energy loss.

Product Description

Vishay VS-40HFR120 is a high-performance switching diode designed for industrial and electronic applications requiring robust and reliable switching capabilities. It provides a maximum continuous forward current of 40 A with a peak reverse voltage rating of 1200 V, making it suitable for power rectification and switching circuits.

Featuring a stud anode diode configuration in a DO-203AB 2-pin package, this diode supports screw mounting, ensuring secure and stable installation in electronic assemblies. The maximum forward voltage drop of 1.3 V contributes to energy-efficient switching, reducing power losses in high-current applications.

Operating reliably in extreme temperatures from -65°C to 190°C, the diode accommodates demanding environments typical of industrial machinery, power supplies, and electronic controls. Its surge current capability of 595 A allows handling of transient events without damage.

The compact physical size, with dimensions of approximately 22.9 mm height and 17.4 mm diameter, supports usage in space-constrained designs, including discrete semiconductor circuits and power modules.

Though lacking explicit automotive certifications, the diode is widely applicable in general industrial, construction, and manufacturing electronic devices requiring standard recovery power diodes. This model belongs to the VS-40HF series known for versatile and high-efficiency diode solutions.

This diode features a stud anode configuration for reliable connectivity. Maximum forward voltage of 1.3 V ensures efficient power handling. Operates over a temperature range of -65°C to 190°C for versatile application. Peak non-repetitive forward surge current is 595 A, tolerating transient surges.

Compact dimensions of 22.9 mm height and 17.4 mm diameter enable space-saving designs. Designed without automotive certification but suitable for standard industrial use. 2-pin package ensures simplified mounting with screw installation type.

Low peak reverse current of 9 mA minimizes leakage and energy loss. For professional industrial and electronic component selections and bulk procurement, browse Vishay semiconductors and switching diodes at EnvMart for quality and reliability.
