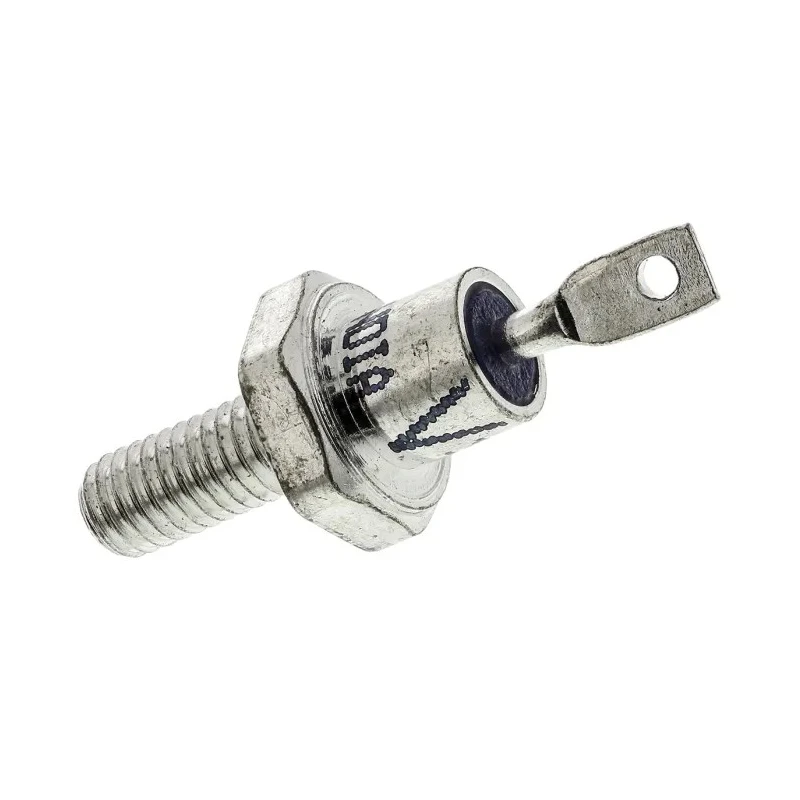

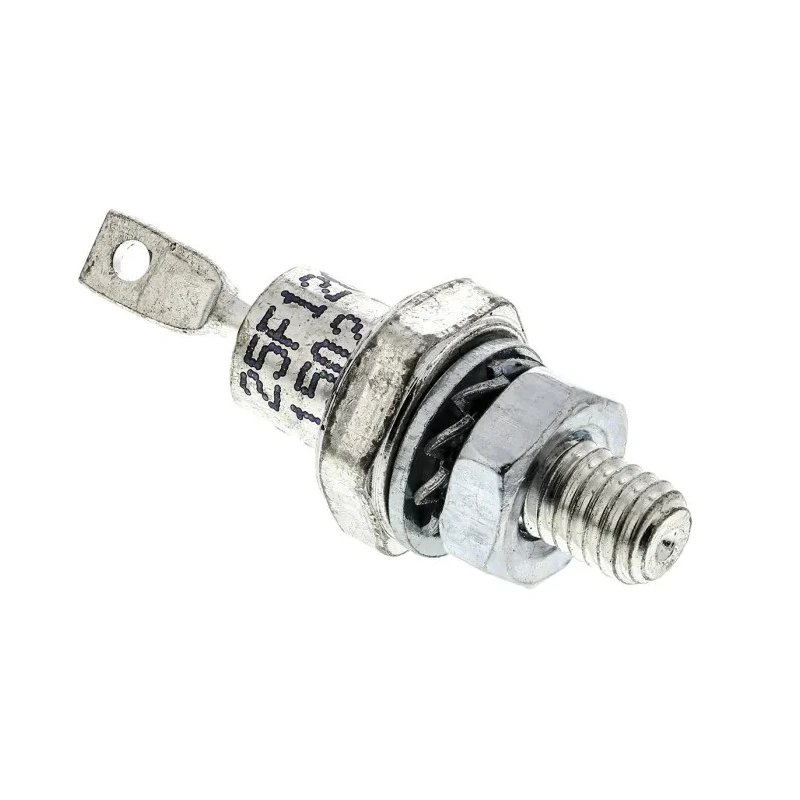

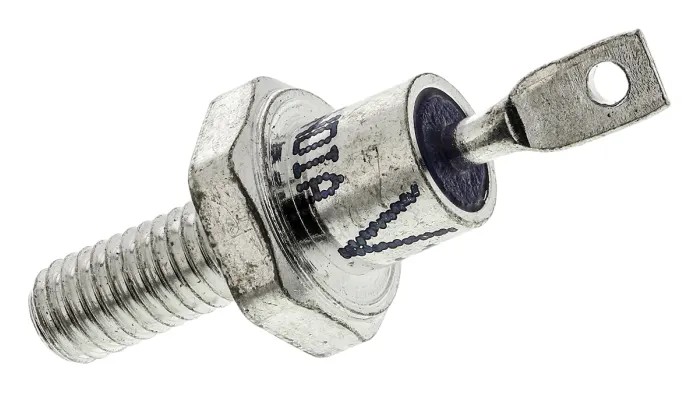

Vishay High-Efficiency Standard Recovery Switching Diode DO-203AA 1200 V 25 A VS-25F120

Vishay VS-25F120 is a high-performance standard recovery switching diode designed for power and electronic applications requiring robust switching and high efficiency. Featuring a 25 A maximum continuous forward current rating and a peak reverse repetitive voltage of 1200 V, this diode ensures durability and reliability in various electrical circuits.

Housed in a DO-203AA package with a screw mount type, the diode incorporates a stud cathode configuration that enhances thermal dissipation and mechanical stability. Its maximum forward voltage of 1.3 V contributes to efficient energy management during operation. The diode’s operating temperature range from -65°C to 175°C permits use in harsh or industrial environments without performance degradation.

Physically, the diode measures 31.8 mm in height, 12.69 mm in length, and 11 mm in diameter, making it compact for integration into circuit assemblies. The device's peak non-repetitive forward surge current of 373 A allows handling of transient surge currents safely. Furthermore, RoHS compliance affirms its environmentally responsible manufacturing standards.

This diode is ideal for semiconductor and power electronics applications including rectification, switching, and protection circuits in industrial manufacturing, automotive electronics, and power supply units. Its reliable construction and performance ensure stability in demanding electrical and electronic workflows.

This standard recovery diode supports a maximum continuous forward current of 25 A. It withstands a peak reverse repetitive voltage of 1200 V for robust switching performance. The DO-203AA package with screw mount ensures excellent thermal management.

Stud cathode diode configuration provides stable operation in power circuits. Maximum forward voltage drop of 1.3 V contributes to energy-efficient switching. Wide operating temperature range of -65°C to 175°C suits industrial environments.

Peak non-repetitive forward surge current of 373 A handles transient electrical surges. Compact size with dimensions height 31.8 mm, length 12.69 mm, and diameter 11 mm. RoHS-compliant for environmental safety and standards adherence.
