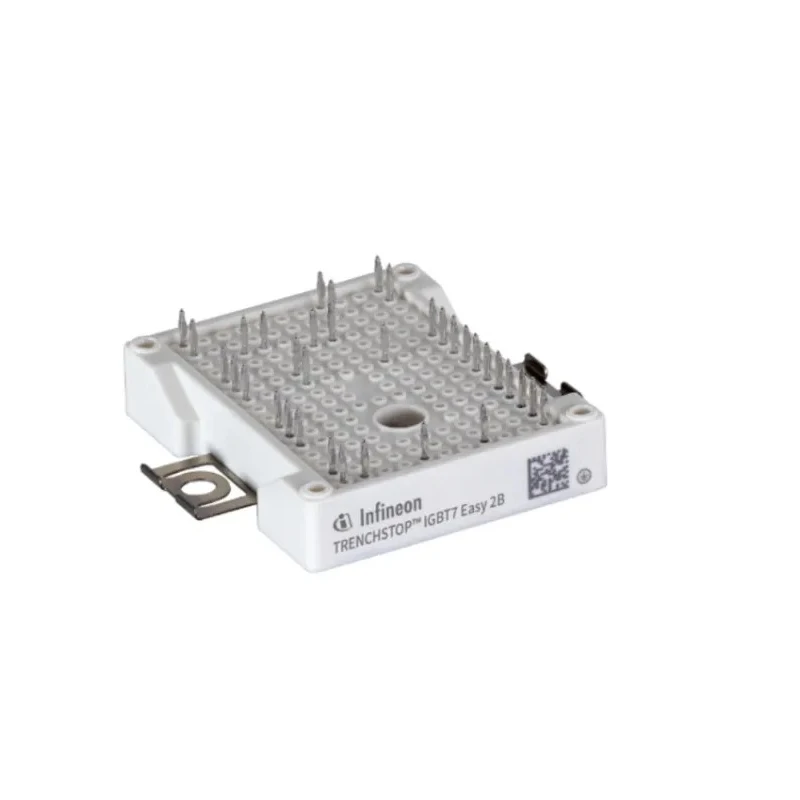

Infineon N-Channel IGBT, 25 A 1200 V, 23-Pin EasyPIM Package, Clamp Mount FP25R12W2T7B11BPSA1

The Infineon FP25R12W2T7B11BPSA1 is an N-Channel Insulated Gate Bipolar Transistor (IGBT) module engineered for high power and compact design applications. It supports a maximum continuous collector current of 25 A and withstands collector-emitter voltages up to 1200 V, making it suitable for power electronics requiring reliable switching and high efficiency.

Featuring the EasyPIM package and clamp mounting type, this module allows for secure and straightforward installation in various industrial and commercial electronic systems. The device can operate reliably in harsh conditions with an operating temperature range from -40°C up to 150°C, enabling use in demanding environments such as industrial automation, motor drives, and power converters.

The FP25R12W2T7B11BPSA1 module provides a low collector-emitter saturation voltage of 1.82 V, minimizing power losses and enhancing thermal performance. Its compact size, with dimensions of 56.7 mm length, 42.5 mm width, and 12 mm height, facilitates integration in space-constrained applications while maintaining a maximum power dissipation rating of 20 mW.

Constructed with high-quality materials and incorporating advanced manufacturing technologies, this Infineon IGBT complies with RoHS standards, ensuring environmental safety. The package includes 23 pins to support complex circuit configurations and power handling capabilities.

Commonly employed in industrial, manufacturing, power supply, and HVAC systems, this IGBT module is ideal for applications requiring high voltage and current switching with durability and efficiency.

Rated for a maximum continuous collector current of 25 A. High voltage capability at 1200 V collector-emitter voltage. Low saturation voltage enhances efficiency. Wide operating temperature range from -40°C to 150°C. 23-pin EasyPIM package enables reliable assembly.

Clamp mounting ensures secure mechanical connection. RoHS compliant for environmental safety. Compact dimensions facilitate integration. Suitable for industrial and power electronics applications. Explore a wide range of semiconductor and electronic components at EnvMart for your industrial needs.
