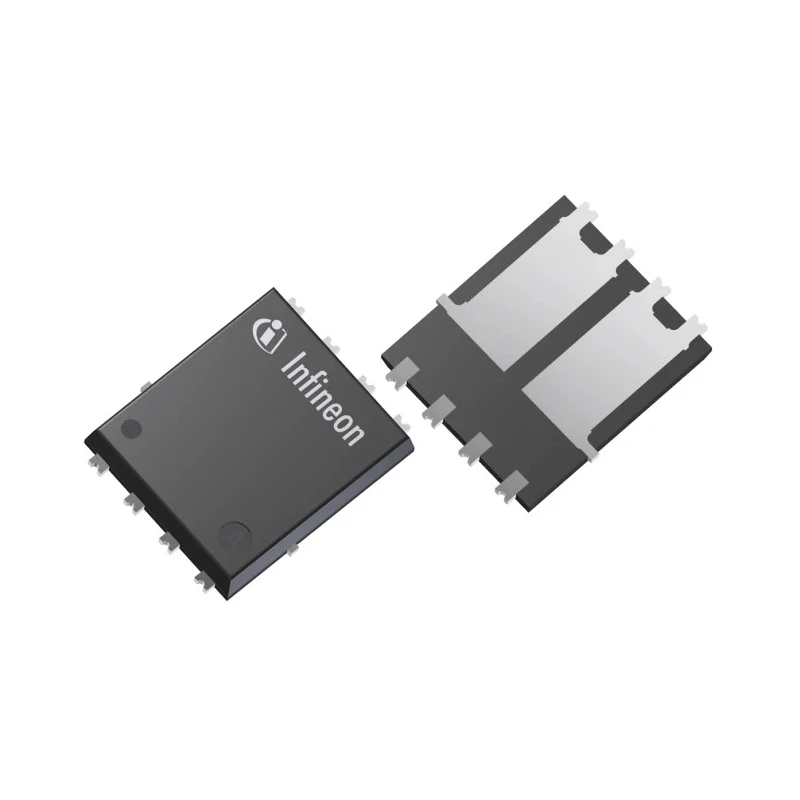

Infineon Dual OptiMOS 2 N-Channel Power Transistor, 20 A, 55 V Enhancement, 8-Pin TDSON IPG20N06S2L65AATMA1

Infineon IPG20N06S2L65AATMA1 is a high-quality Dual OptiMOS 2 N-Channel Power Transistor optimized for power management and switching in industrial, automotive, and consumer electronics applications. Featuring a 20 A continuous drain current and 55 V drain-source voltage, this device delivers efficient power conversion with minimal conduction losses due to its ultra-low 65 mΩ Rds(on).

The transistor comes in a compact 8-pin TDSON surface mount package, facilitating efficient PCB layout and heat dissipation. Its dual transistor configuration makes it suitable for complementary or parallel applications, improving circuit design flexibility.

This enhancement-mode MOSFET ensures reliable switching performance with a typical gate charge of 9.4 nC, striking a balance between switching speed and power loss. It can operate safely at elevated junction temperatures up to 175°C, suitable for demanding automotive and industrial environments.

Infineon's OptiMOS 2 technology incorporates a large source lead frame for improved wire bonding and a robust bond wire diameter of 200 µm, enabling dependable operation at currents up to 20 A. The component is fully RoHS compliant and adheres to the AEC-Q101 automotive standard, signifying high quality and long-term reliability.

Typical applications include power supplies, DC/DC converters, motor drivers, and automotive body electronics. Its small form factor combined with high performance makes it ideal for efficient power designs requiring high switching frequencies and low losses.

Maximum continuous drain current of 20 A ensures efficient current handling. Maximum drain-source voltage of 55 V suits medium voltage power applications. 8-pin TDSON surface mount package supports compact PCB designs. Low drain-source resistance of 65 mΩ reduces conduction loss and improves efficiency.

Dual transistor configuration provides two N-channel MOSFETs per chip for versatile circuit design. Enhancement mode channel offers standard MOSFET switching characteristics. Typical gate charge of 9.4 nC at Vgs optimizes switching speed and power loss.

High maximum operating temperature of 175°C ensures reliability under thermal stress. Automotive grade AEC-Q101 qualification guarantees robust performance in harsh environments. Complies with RoHS standards for environmental safety.
