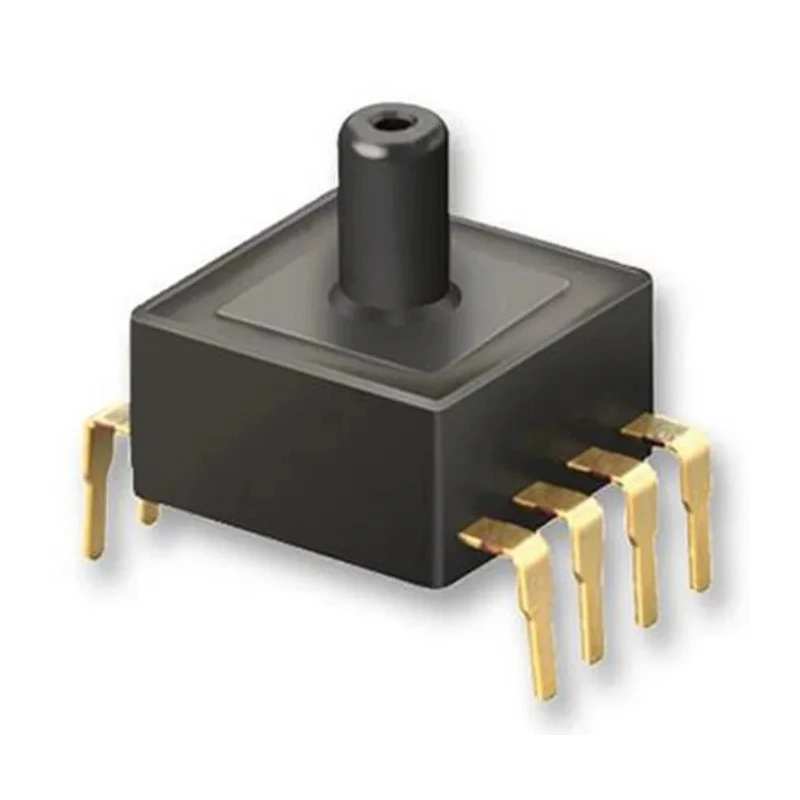

Panasonic PS-A Series Gauge Pressure Sensor Surface Mount 0 to 100 kPa ADP5111
Specifications
| Country of Origin | Japan |
|---|---|
| Accuracy | ±1.25 %FS (Standard), ±2.5 %FS (Low-pressure type) |
| Brand | Panasonic |
| Height | 6.5mm |
| Model | ADP5111 |
| Sensor Type | Gauge Pressure Sensor |
| Mount Type | Surface |
| Series | PS-A |
| Maximum Operating Temperature | 50°C |
| Minimum Operating Temperature | 0°C |
| Typical Sensitivity | 1.3%FS |
| Standards/Approvals | RoHS Compliant |
| Maximum Output Voltage | 4.5V |
| Maximum Supply Voltage | 5.25V |
| Minimum Output Voltage | 300mV |
| Minimum Operating Pressure | -100kPa |
| Maximum Overload Pressure | 100kPa |
| Base area | 7.2 x 7.2 mm |
Key Features
- High precision with accuracy of ±1.25 %FS standard type and ±2.5 %FS low-pressure type.
- Typical sensitivity is 1.3%FS for accurate pressure measurement.
- Operates with a maximum supply voltage of 5.25 V and maximum output voltage of 4.5 V.
- Wide operating temperature range from 0°C to 50°C ensures reliability in diverse environments.
- Compact design with a base area of 7.2 x 7.2 mm and height of 6.5 mm.
- Suitable for applications such as pressure switches, pneumatic devices, blood pressure monitors, and water level detection.
- Includes built-in amplifier and compensating circuit for high-level precision and stability.
- Compliant with RoHS standards for environmental safety.
Product Description
Panasonic ADP5111 is part of the PS-A series gauge pressure sensors featuring a compact surface-mount package with a base area of 7.2 x 7.2 mm and a height of 6.5 mm. This sensor provides a pressure measurement range from -100 kPa to 100 kPa with a maximum overload pressure of 100 kPa. Its built-in amplifier and compensating circuit ensure high-level precision and reliability for accurate readings.
The device has a typical sensitivity of 1.3%FS, maximum supply voltage of 5.25 V, and maximum output voltage of 4.5 V. It offers standard accuracy of ±1.25 %FS, with an option for low-pressure type accuracy of ±2.5 %FS. The operational temperature range is from 0°C to 50°C, making it suitable for various industrial and medical environments.
Key applicable fields include industrial pressure switches, pneumatic devices, medical blood pressure monitors, compressed air pressure measurement, air beds, and water level detection in household appliances. The sensor’s compact size saves space on PCBs, facilitating design efficiency.
Manufactured in Japan, the ADP5111 gauge pressure sensor complies with RoHS environmental directives, ensuring safe use in modern high-tech equipment. High-precision gauge pressure sensing for accurate monitoring. Surface mount type for easy PCB integration.
Built-in amplifier and compensating circuit for stable performance. Compact size suitable for space-constrained applications. Wide operating temperature range for versatile usage. RoHS compliant for environmental safety.
Reliable operation in industrial, medical, and consumer applications. Explore the Panasonic range of Pressure Sensor ICs and other sensor solutions at EnvMart for your industrial, medical, and commercial needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Panasonic PS-A Series Gauge Pressure Sensor has a pressure measurement range from -100 kPa to 100 kPa.
The typical sensitivity of this sensor is 1.3%FS for accurate pressure measurement.
The sensor has a compact design with a base area of 7.2 x 7.2 mm and a height of 6.5 mm.
The maximum supply voltage for the ADP5111 sensor is 5.25 V.
The maximum output voltage of this gauge pressure sensor is 4.5 V.
This sensor operates within a temperature range of 0°C to 50°C.
The ADP5111 is a gauge pressure sensor designed for surface mounting.
Yes, the ADP5111 is RoHS compliant, ensuring it meets environmental safety standards.
The maximum overload pressure for the Panasonic PS-A Series sensor is 100 kPa.
It includes a built-in amplifier and compensating circuit for high-level precision and stability in pressure readings.
