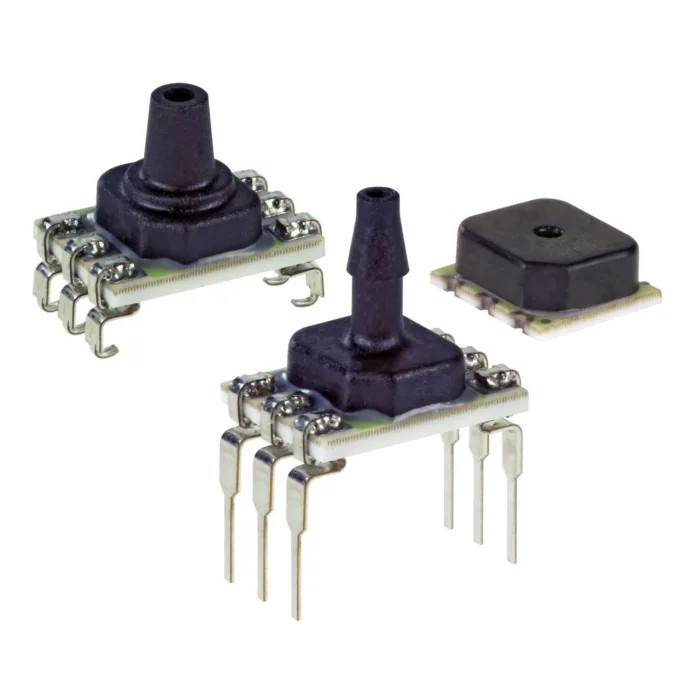

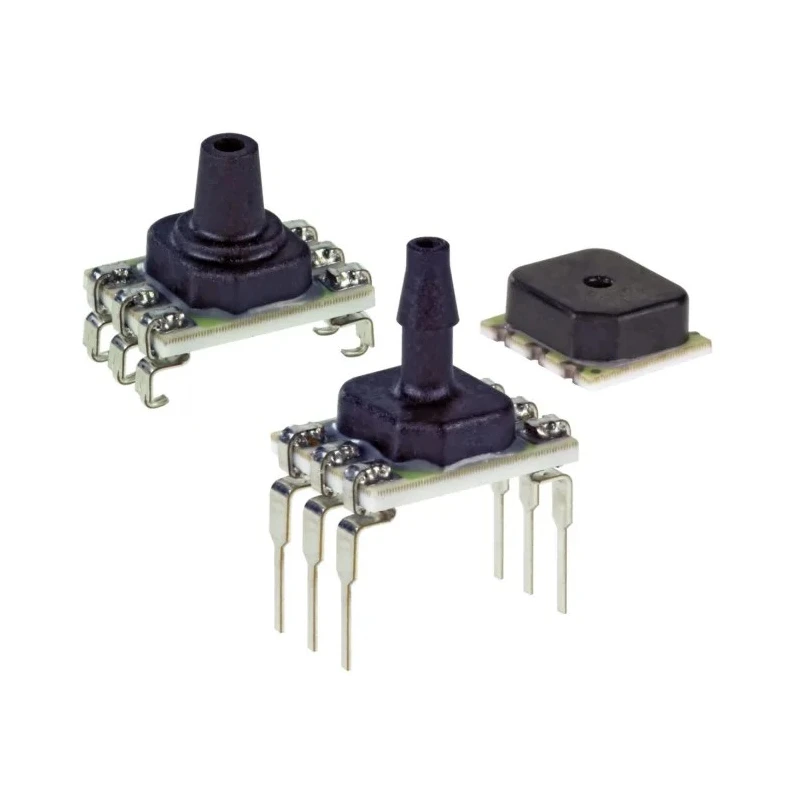

Honeywell Technologies Piezoresistive Gauge Pressure Sensor 5V Leadless SMT ABPLLNN015PGST5
Specifications
| Country of Origin | India |
|---|---|
| Accuracy | ±0.25 % |
| Brand | Honeywell Technologies |
| Maximum Operating Pressure | 103 kPa |
| Height | 7.23mm |
| Length | 7.3mm |
| Model | ABPLLNN015PGST5 |
| Sensor Type | Gauge Pressure Sensor |
| Mount Type | Surface |
| Series | ABP |
| Maximum Operating Temperature | 85°C |
| Port Type | Single Axial Barbless |
| Package Type | Leadless SMT |
| Minimum Operating Temperature | -40°C |
| Pin Count | 0 |
| Maximum Supply Voltage | 5V |
| Minimum Supply Voltage | -0.3V |
| Minimum Operating Pressure | 0psi |
| Maximum Overload Pressure | 206kPa |
Key Features
- The sensor provides ±0.25% accuracy for precise gauge pressure measurements.
- Operates with a supply voltage range up to 5 volts for design flexibility.
- Maximum operating pressure rating of 103 kPa and overload pressure of 206 kPa ensures reliable performance.
- Compact surface mount device with 7.3 mm length and 7.23 mm height dimensions.
- Operates reliably within temperature range of -40°C to 85°C for extended environmental applications.
- Includes a single axial barbless port type for accurate pressure sensing.
- Features low power consumption with options for analogue or 12-bit digital output.
- Suitable for use with dry gases and non-corrosive liquids with liquid-media option.
Product Description
Honeywell Technologies ABPLLNN015PGST5 is a high precision piezoresistive gauge pressure sensor designed for surface mount PCB applications operating at a supply voltage up to 5 volts. This sensor offers a compact leadless SMT package that provides efficient integration and precise measurement performance with an accuracy of ±0.25%.
The sensor supports a maximum operating pressure of 103 kPa and withstands overload pressure up to 206 kPa, ensuring durability and reliability in industrial and medical environments. It operates across a wide temperature range from -40°C to 85°C, making it suitable for harsh working conditions.
This device is temperature compensated and calibrated on board by an ASIC to deliver rapid and stable output. It provides both ratiometric analogue output and digital output with 12-bit resolution, supporting protocols such as I2C and SPI for flexible communication in embedded systems.
The sensor incorporates a single axial barbless port for pressure sensing and can measure gauge or differential pressures. It is compatible with dry gases or, when equipped with a liquid-media option, with non-corrosive liquids and condensation-prone environments.
±0.25% accuracy with total error band of ±1.5% FSS across compensated range. Low-power sleep mode reduces consumption to microampere levels. Calibrated output update rate of approximately 1 kHz for analogue and 2 kHz for digital outputs.
Compact dimensions of 7.3 mm length by 7.23 mm height enable dense assembly.
Ideal for use in CPAP and ventilator pressure monitoring, blood analysis instruments, pneumatic control, valve position feedback, coffee machines, washing machines, and life science gas monitoring applications.
No automotive standard certification; standards/approvals not applicable.
This sensor is designed to meet rigorous industrial, scientific, and medical instrumentation requirements where precise, stable pressure measurements are vital. The leadless SMT package facilitates space-saving circuit board layouts and enhances reliability in automated manufacturing.
EnvMart offers this Honeywell Technologies ABPLLNN015PGST5 pressure sensor as a dependable solution for measuring small gauge pressures in a variety of demanding professional applications.
Explore more products in our Pressure Sensor ICs category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model provides an accuracy of ±0.25% for precise gauge pressure measurements.
The maximum operating pressure rating is 103 kPa, with an overload pressure of 206 kPa.
It operates with a supply voltage range up to 5 volts, allowing for design flexibility.
The sensor operates reliably within a temperature range of -40°C to 85°C.
This unit features low power consumption with options for analogue output and 12-bit digital output, supporting protocols such as I2C and SPI.
It has compact dimensions of 7.3 mm in length and 7.23 mm in height.
It incorporates a single axial barbless port type for accurate pressure sensing.
It is suitable for applications in CPAP and ventilator pressure monitoring, blood analysis instruments, pneumatic control, and more.
The calibrated output update rate is approximately 1 kHz for analogue and 2 kHz for digital outputs.
It is compatible with dry gases and, when equipped with a liquid-media option, can measure non-corrosive liquids.
This model is designed for surface mount PCB applications.
The Honeywell Technologies ABPLLNN015PGST5 pressure sensor is manufactured in India.
