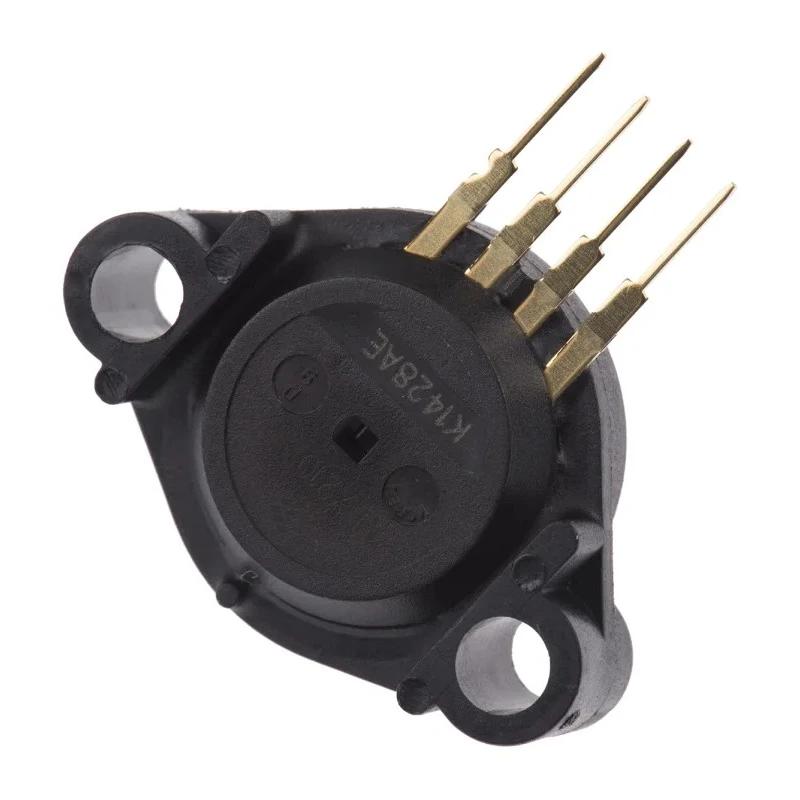

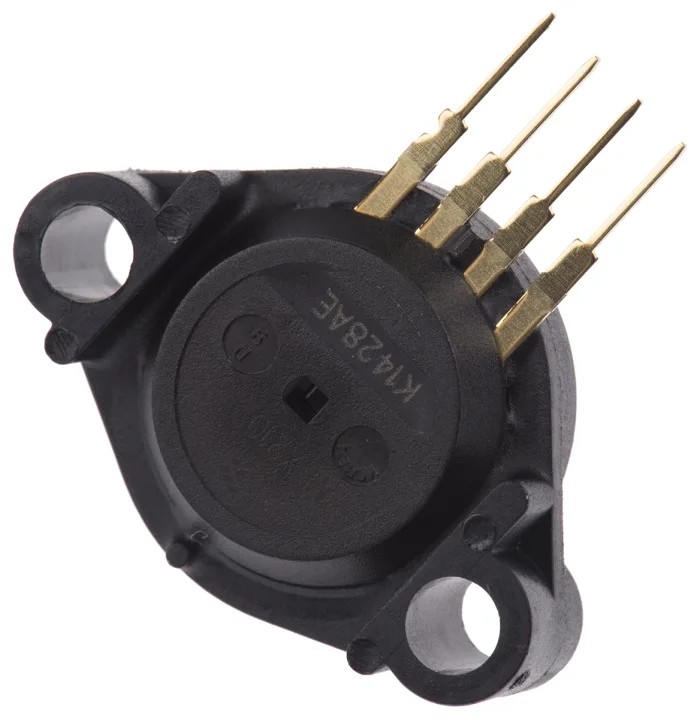

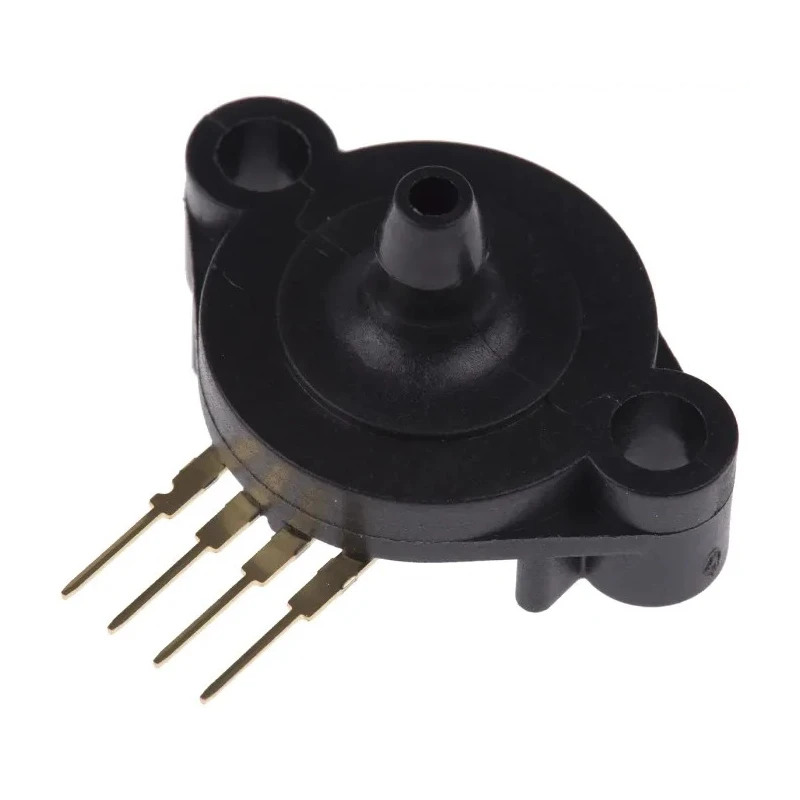

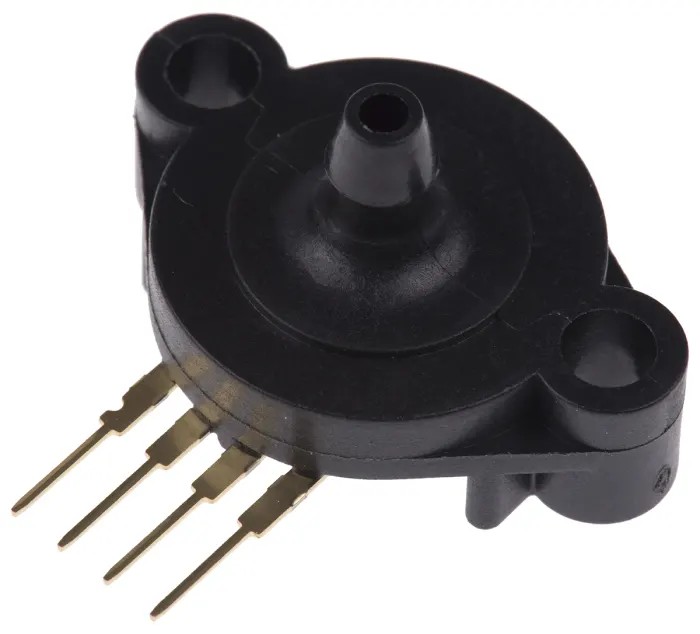

NXP Absolute Pressure Sensor Through Hole Case 344F-01 4 Pin MPX2102ASX
Specifications
| Country of Origin | India |
|---|---|
| Brand | NXP |
| Maximum Operating Pressure | 100 kPa |
| Height | 19.3mm |
| Length | 28.45mm |
| Model | MPX2102ASX |
| Sensor Type | Absolute Pressure Sensor |
| Mount Type | Through Hole |
| Series | MPX2102ASX |
| Maximum Operating Temperature | 125°C |
| Port Type | Single Axial Barbed |
| Package Type | Case 344F-01 |
| Minimum Operating Temperature | -40°C |
| Typical Sensitivity | 0.4mV/kPa |
| Maximum Output Voltage | 40mV |
| Pin Count | 4 |
| Maximum Supply Voltage | 16V |
| Minimum Supply Voltage | 10V |
| Minimum Output Voltage | -2mV |
| Minimum Operating Pressure | 20kPa |
| Maximum Overload Pressure | 400kPa |
Key Features
- Maximum operating pressure up to 100 kPa with overload capacity of 400 kPa.
- Typical sensitivity rated at 0.4 mV/kPa for accurate signal output.
- Single axial barbed port design for efficient pressure input.
- Operating temperature range from -40°C to 125°C ensures performance under harsh conditions.
- Compact dimensions with length 28.45 mm and height 19.3 mm facilitate easy PCB mounting.
- Designed for through-hole mounting with 4 pins for secure electronic integration.
- Maximum supply voltage up to 16 V and minimum supply voltage of 10 V support flexible power configurations.
- Output voltage ranges from -2 mV to maximum 40 mV for precise detection.
Product Description
NXP MPX2102ASX Absolute Pressure Sensor is a through-hole mounted sensor with 4 pins and packaged in Case 344F-01. It features a robust construction designed for precise absolute pressure measurement with a maximum overload pressure tolerance of 400 kPa and a maximum operating pressure of 100 kPa.
This sensor delivers a typical sensitivity of 0.4 mV/kPa, enabling accurate voltage output from -2 mV to 40 mV depending upon applied pressure. It is powered by supply voltages ranging from 10 V to 16 V, making it versatile for various electrical environments.
The sensor includes a single axial barbed port for pressure input, and it operates efficiently within a wide temperature range from -40°C to 125°C, suitable for industrial, laboratory, HVAC, and general electronic component applications.
With dimensions of 28.45 mm in length and 19.3 mm in height, the MPX2102ASX sensor supports straightforward PCB integration by through-hole mounting with its 4-pin configuration. It is not designed for automotive standards but meets requirements for precision pressure measurement in diverse sectors.
Maximum operating pressure: 100 kPa with overload up to 400 kPa. Typical sensitivity: 0.4 mV/kPa for precise output. Single axial barbed pressure port. Operating temperature range: -40°C to 125°C. Package type: Case 344F-01 with through-hole mount.
4 pin count for stable connection. Supply voltage range: 10 V to 16 V. Output voltage: -2 mV to 40 mV. Compact size: length 28.45 mm, height 19.3 mm.
This pressure sensor is ideal for use in electronics, industrial instrumentation, and laboratory pressure monitoring setups. Enhanced for accuracy and durability, it supports precise sensing needs without automotive compliance requirements.
Explore more Pressure Sensor ICs and related components in EnvMart’s Electronics & Electricals category to find products suited for your engineering and manufacturing applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating pressure of the NXP MPX2102ASX is 100 kPa, with an overload capacity of 400 kPa.
This model has a typical sensitivity rated at 0.4 mV/kPa, allowing for accurate signal output based on the applied pressure.
The sensor has compact dimensions of 28.45 mm in length and 19.3 mm in height, facilitating easy PCB mounting.
It operates efficiently within a temperature range from -40°C to 125°C, making it suitable for harsh conditions.
This model is designed for through-hole mounting and features a 4-pin configuration for secure electronic integration.
The sensor operates with a supply voltage range from 10 V to 16 V, accommodating various electrical environments.
The output voltage of the MPX2102ASX ranges from -2 mV to a maximum of 40 mV, depending on the applied pressure.
It includes a single axial barbed port design for efficient pressure input.
This pressure sensor is suitable for use in industrial instrumentation, laboratory pressure monitoring, and general electronics applications.
The minimum operating pressure for the NXP MPX2102ASX is 20 kPa.
No, this sensor is not designed for automotive standards but is suitable for precision pressure measurement in various other sectors.
The NXP MPX2102ASX is manufactured in India.
