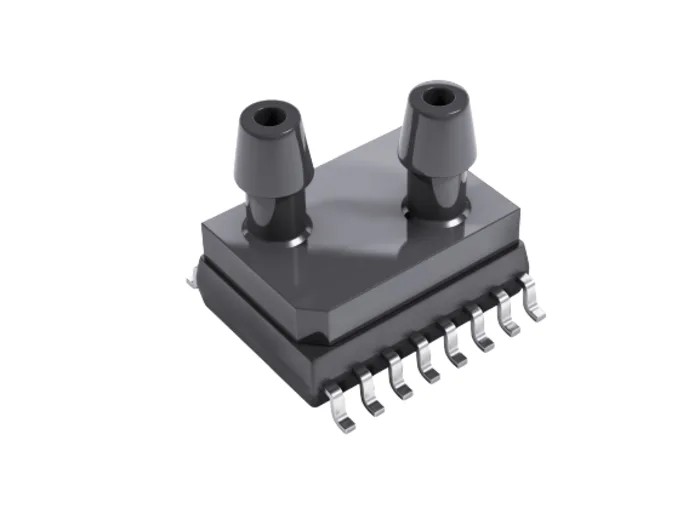

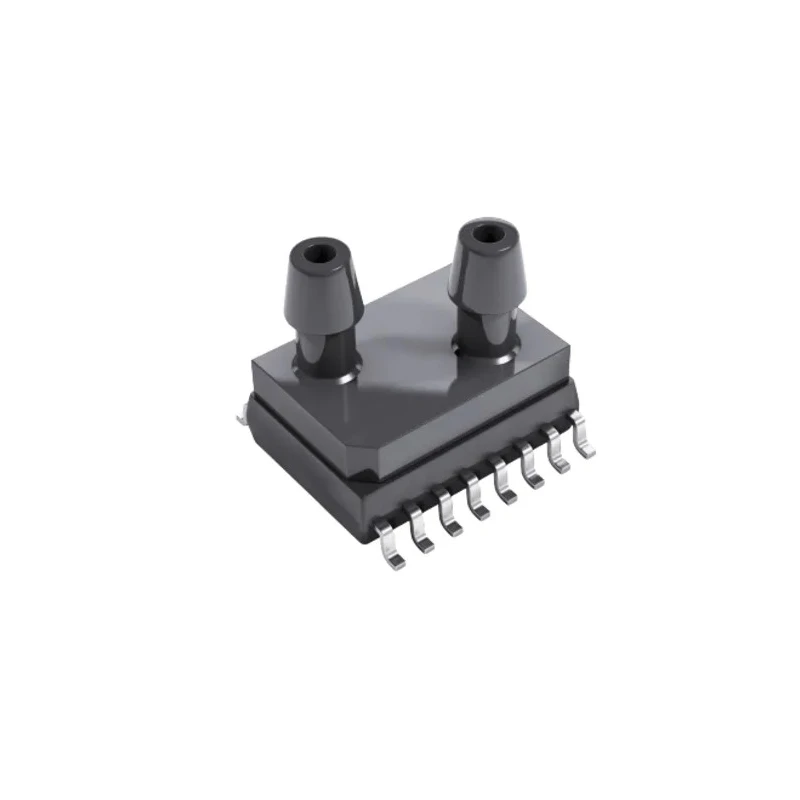

TE Connectivity Differential Pressure Sensor Surface Mount SOIC 16-Pin, 3V, 125 Pa Max Operating SM9333-BCE-S-125-000
Specifications
| Country of Origin | United States |
|---|---|
| Brand | TE Connectivity |
| Maximum Operating Pressure | 125 pA |
| Height | 9.32mm |
| Length | 10.26mm |
| Model | SM9333-BCE-S-125-000 |
| Sensor Type | Differential Pressure Sensor |
| Mount Type | Surface |
| Series | SM9333-BCE-S-125-000 |
| Maximum Operating Temperature | 85°C |
| Port Type | Dual Vertical |
| Package Type | SOIC |
| Minimum Operating Temperature | -20°C |
| Pin Count | 16 |
| Minimum Supply Voltage | 3V |
| Minimum Operating Pressure | -125Pa |
| Maximum Overload Pressure | 7kPa |
Key Features
- This sensor features MEMS pressure transducer and CMOS mixed signal processing technology.
- Operates within a pressure range of -125 Pa to 125 Pa with temperature compensation.
- It supports a minimum supply voltage of 3V and a maximum overload pressure of 7 kPa.
- Surface mount package with a 16-pin SOIC form factor ensures easy PCB integration.
- The device is suitable for applications in CPAP equipment, ventilators, gas flow instrumentation, and air flow measurement.
- Compact dimensions of 10.26 mm length and 9.32 mm height provide space-saving installation.
- Operates reliably from -20°C to 85°C with dual vertical port type for versatile connectivity.
- Manufactured in the United States ensuring quality and compliance with industry standards.
Product Description
TE Connectivity SM9333-BCE-S-125-000 Differential Pressure Sensor Surface Mount SOIC 16-Pin device operates at 3V supply voltage and max operating pressure of 125 Pa. It incorporates advanced MEMS pressure transducer technology combined with CMOS mixed signal processing for digital, real-time pressure sensing.
This sensor provides a fully conditioned, multi-order pressure and temperature compensated output, ideal for precise differential pressure measurements in medical devices such as CPAP machines and ventilators, as well as gas flow instrumentation and air flow monitoring applications in industrial and laboratory settings.
The compact SOIC 16-pin package measures 10.26 mm in length and 9.32 mm in height, enabling convenient surface mounting on PCBs. It features dual vertical ports for efficient connection and a wide compensated temperature range from -20°C to 85°C, ensuring reliable performance in varying environmental conditions.
The sensor supports pressure ranges from -125 Pa minimum operating pressure to 125 Pa maximum, with an overload pressure resistance of up to 7 kPa, assuring durability under transient pressure events. The product is manufactured in the United States following stringent quality controls.
This sensor uses MEMS technology combined with CMOS mixed signal processing for digital pressure output. Operates over a low pressure differential range with high accuracy and temperature compensation. Surface mount SOIC 16-pin package offers easy integration and space efficiency.
Suitable for medical, industrial, and HVAC applications requiring precise air and gas flow measurement. Wide operating temperature range from -20°C to 85°C ensures use across various climates. Dual vertical ports simplify the connection setup on printed circuit boards.
Pressure overload capacity of 7 kPa provides robustness for industrial environments. Made in the United States, ensuring manufacturing quality and reliability.
This differential pressure sensor is optimal for industrial, laboratory, medical, HVAC, and manufacturing applications requiring dependable low-pressure sensing. Explore the comprehensive range of TE Connectivity products and related sensor ICs on EnvMart for your project needs.
Explore more products in our Pressure Sensor ICs category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating pressure of this sensor is 125 Pa.
This model requires a minimum supply voltage of 3V.
It operates reliably within a temperature range of -20°C to 85°C.
The sensor has a length of 10.26 mm and a height of 9.32 mm.
It features dual vertical ports for efficient connectivity.
The maximum overload pressure capacity is 7 kPa.
This sensor comes in a surface mount package with a 16-pin SOIC form factor.
It incorporates MEMS pressure transducer technology combined with CMOS mixed signal processing.
This sensor is manufactured in the United States.
The minimum operating pressure is -125 Pa.
