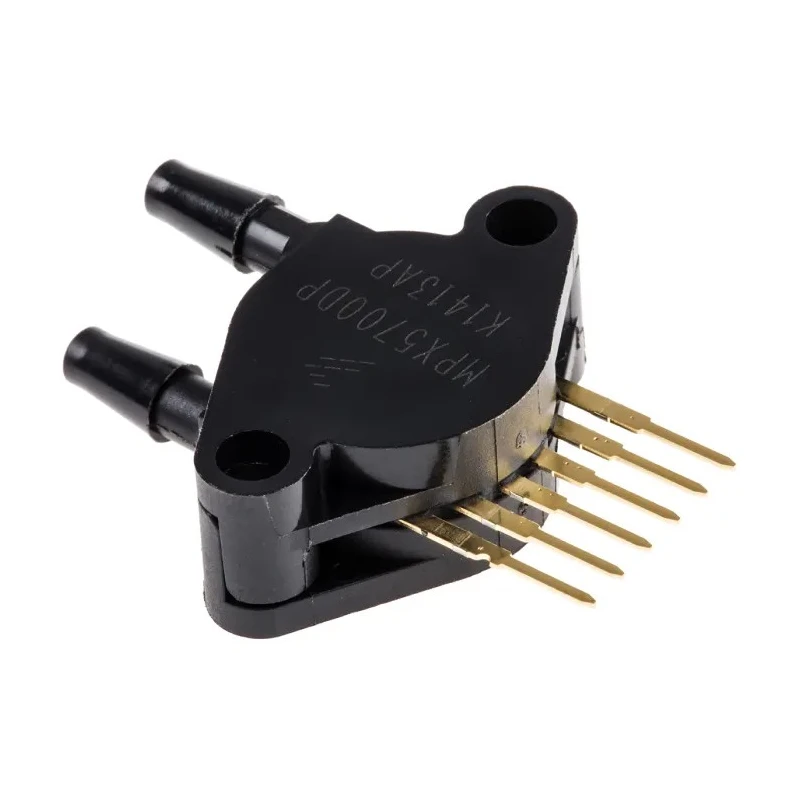

NXP Differential Pressure Sensor 6 Pin Surface Mount Case 867C-05, 700 kPa Max Operating Pressure MPX5700DP
Specifications
| Country of Origin | India |
|---|---|
| Accuracy | ±2.5 % |
| Brand | NXP |
| Maximum Operating Pressure | 700 kPa |
| Height | 29.34mm |
| Length | 29.85mm |
| Model | MPX5700DP |
| Sensor Type | Differential Pressure Sensor |
| Mount Type | Surface |
| Series | MPX5700DP |
| Maximum Operating Temperature | 125°C |
| Port Type | Dual Radial Barbed |
| Package Type | Case 867C-05 |
| Minimum Operating Temperature | -40°C |
| Typical Sensitivity | 6.4mV/kPa |
| Standards/Approvals | RoHS |
| Maximum Output Voltage | 4.7V |
| Pin Count | 6 |
| Maximum Supply Voltage | 5.25V |
| Minimum Supply Voltage | 4.75V |
| Minimum Output Voltage | 200mV |
| Minimum Operating Pressure | 15kPa |
| Maximum Overload Pressure | 2000kPa |
Key Features
- Operates with a supply voltage between 4.75V and 5.25V.
- Provides a typical sensitivity of 6.4 mV/kPa for accurate sensing.
- Supports maximum overload pressure up to 2000 kPa.
- Features dual radial barbed ports for differential pressure measurement.
- Accuracy is ±2.5%, suitable for precision applications.
- Designed to operate between -40°C and 125°C temperature range.
- Compact dimensions of approximately 29.85 mm length and 29.34 mm height.
- Outputs minimum voltage of 200mV and maximum output voltage of 4.7V.
Product Description
NXP MPX5700DP is a high range differential pressure sensor designed with a 6 pin surface mount package type 867C-05, ideal for industrial and electronic applications requiring differential and gauge pressure measurement up to 700 kPa.
The sensor features a maximum overload capacity of 2000 kPa, ensuring durability and reliability in demanding environments. It delivers a typical sensitivity of 6.4 mV/kPa which facilitates precise pressure detection suitable for automated and embedded systems.
Its operating supply voltage ranges from 4.75V to 5.25V, with a maximum output voltage of 4.7V and a minimum output voltage threshold of 200mV. The device supports pressure measurements starting from 15 kPa and is designed with dual radial barbed ports to optimize the differential sensing mechanism.
The sensor maintains an accuracy of ±2.5% and functions efficiently within temperatures spanning from -40°C to 125°C. Its compact physical size with dimensions close to 29.85 mm in length and 29.34 mm in height aids in integration within constrained spaces.
Operates with high accuracy and sensitivity for differential pressure applications. Robust RoHS compliant design suitable for various electronic and industrial systems. Supports surface mounting on PCBs ensuring easy assembly and reliable connections.
Resistant to overload with a maximum pressure rating of 2000 kPa. Wide operating temperature range ensures suitability for harsh environments.
This pressure sensor is suitable for electronic instrumentation, HVAC systems, industrial automation, automotive testing, and laboratory equipment. Users can rely on this sensor to accurately measure differential pressure for control and monitoring systems.
Explore the range of NXP sensors for various industrial and commercial applications with confidence at EnvMart.
Explore more products in our Pressure Sensor ICs category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating pressure of the NXP MPX5700DP differential pressure sensor is 700 kPa.
This model provides a typical sensitivity of 6.4 mV/kPa for accurate sensing.
The sensor operates efficiently within a temperature range of -40°C to 125°C.
The compact dimensions of this unit are approximately 29.85 mm in length and 29.34 mm in height.
It operates with a supply voltage between 4.75V and 5.25V.
The minimum output voltage for this sensor is 200 mV.
The sensor is designed with dual radial barbed ports for differential pressure measurement.
The accuracy of the NXP MPX5700DP is ±2.5%.
This unit can withstand a maximum overload pressure of 2000 kPa.
It supports surface mounting, making it suitable for PCB assembly.
This sensor is RoHS compliant, ensuring it meets environmental safety standards.
This pressure sensor is suitable for electronic instrumentation, HVAC systems, industrial automation, automotive testing, and laboratory equipment.
