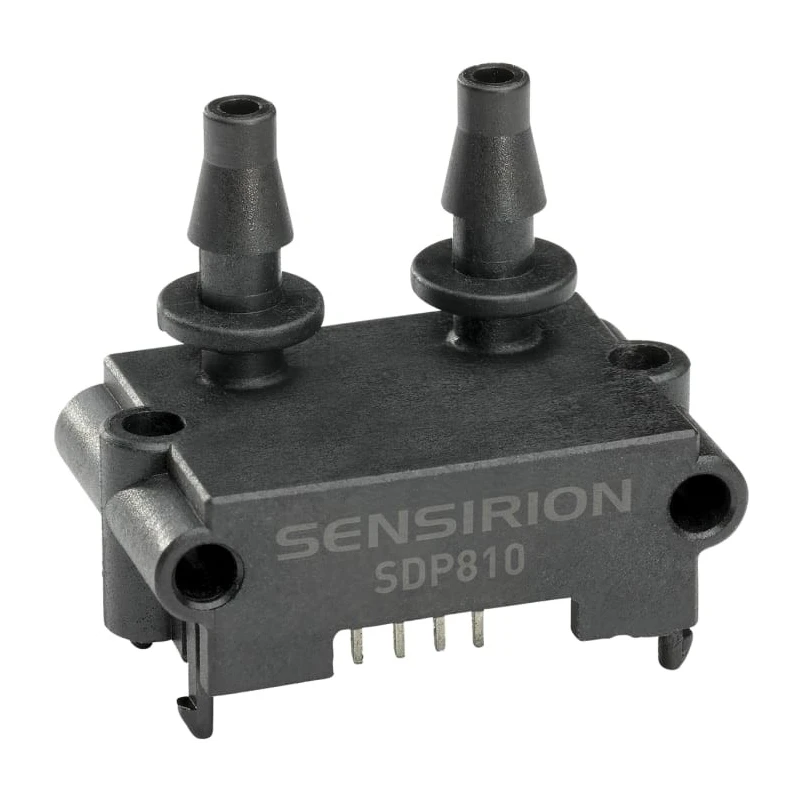

Sensirion Digital Differential Pressure Sensor Manifold 41 bar SDP810-500Pa
Specifications
| Country of Origin | Switzerland |
|---|---|
| Brand | Sensirion |
| Maximum Operating Pressure | 500 pA |
| Height | 23.75mm |
| Length | 29mm |
| Model | SDP810-500Pa |
| Sensor Type | Differential Pressure Sensor |
| Mount Type | Manifold |
| Series | SDP800 |
| Maximum Operating Temperature | 85°C |
| Port Type | Tube, Manifold |
| Minimum Operating Temperature | -40°C |
| Standards/Approvals | REACH and RoHS |
| Pin Count | 4 |
| Maximum Supply Voltage | 5.5V |
| Minimum Supply Voltage | 3V |
| Minimum Operating Pressure | -500Pa |
| Maximum Overload Pressure | 1bar |
Key Features
- Offers accurate differential pressure sensing for air and non-aggressive gases.
- Operates reliably within a temperature range of -40°C to 85°C.
- Features a compact manifold mount design with 4-pin interface.
- Operates with supply voltages from 3V to 5.5V.
- Includes REACH and RoHS compliance for environmental safety.
- Capable of handling maximum overload pressure of 1 bar.
- Manufactured in Switzerland ensuring high-quality standards.
Product Description
The Sensirion SDP810-500Pa model is a specialized digital differential pressure sensor manifold used for precise pressure measurements up to 500 Pa differential and equipped to withstand maximum operating pressures up to 41 bar (5000 kPa). This sensor offers high accuracy and stability in sensing differential pressures, making it ideal for industrial, laboratory, HVAC, and commercial applications requiring reliable air or non-aggressive gas pressure monitoring.
Built with CMOSens Technology, the sensor delivers excellent signal-to-noise ratio and long-term stability. It is designed for easy integration with microprocessors featuring a 2-wire interface and 4-pin manifold mount for secure and compact installation. The sensor operates safely within supply voltages ranging from 3V to 5.5V, and withstands operating temperatures between -40°C and 85°C, accommodating harsh environments.
With dimensions of 29mm length and 23.75mm height, the compact form factor is advantageous in space-constrained setups. Manufactured in Switzerland, the SDP810-500Pa reflects rigorous quality and engineering standards.
Offers accurate differential pressure sensing for air and non-aggressive gases. Operates reliably within a temperature range of -40°C to 85°C. Features a compact manifold mount design with 4-pin interface. Operates with supply voltages from 3V to 5.5V.
Includes REACH and RoHS compliance for environmental safety. Capable of handling maximum overload pressure of 1 bar. Compact dimensions: 29mm length and 23.75mm height. Manufactured in Switzerland ensuring high-quality standards.
This digital differential pressure sensor is applicable in industrial automation, HVAC systems, laboratory instrumentation, and manufacturing processes requiring precise pressure measurements. The manifold mounting option facilitates integration into pneumatic and hydraulic systems, enhancing system reliability and performance.
Explore more sensors and pressure measurement solutions on EnvMart for advanced and reliable instrumentation options.
