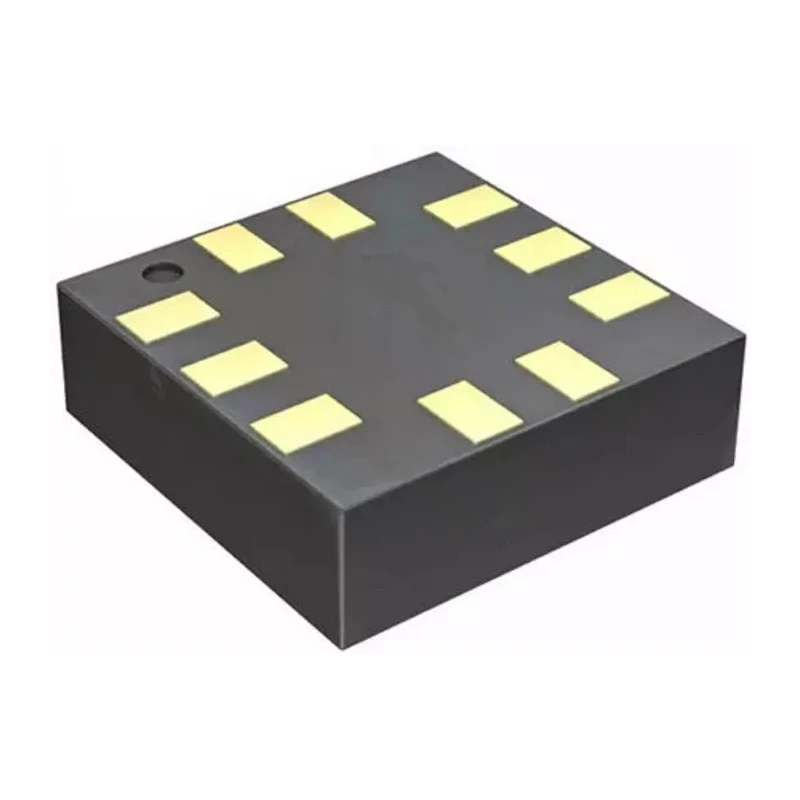

STMicroelectronics MEMS Absolute Pressure Sensor Digital Barometer Surface Mount 10-Pin HLGA Package LPS22HBTR

STMicroelectronics LPS22HBTR is an advanced MEMS (Micro Electro-Mechanical Systems) absolute pressure sensor designed as a digital barometer for precise pressure and temperature measurements. This surface-mount sensor uses ST’s proprietary VENSENS technology, providing a high-resolution sensing element with embedded temperature compensation in a compact 10-pin HLGA package.

Operating from -40°C to 85°C, it offers an absolute pressure range of 260 to 1260 hPa and a maximum operating pressure of 126 kPa. The sensor features low power consumption below 4 μA while maintaining high accuracy at ±0.1 hPa with pressure noise lower than 1 Pa RMS.

Its digital interface supports SPI and I²C communication protocols, making it suitable for integration with a wide variety of electronic applications including smartphones, tablets, wearable devices, and weather monitoring systems. The robust design endures a maximum overload pressure of 2000 kPa, ensuring durability in demanding industrial environments.

The package dimensions provide a compact form factor with a 2 mm length and 760 μm height, allowing flexible mechanical design in space-constrained applications. Being ECOPACK lead-free certified, it complies with environmental standards.

Temperature compensated absolute pressure sensing with high resolution. Low power consumption under 4 μA operation allows energy-efficient designs. Digital output data via SPI and I²C interfaces for seamless system integration.

High maximum overload capability of 2000 kPa ensures sensor robustness. Small HLGA surface-mount package with 10 pins and compact size. Pressure noise less than 1 Pa RMS for precise measurement stability. Wide supply voltage range from 1.7 V to 3.6 V adapts to various electronic circuits.

Manufactured in Malta with state-of-the-art MEMS technology.

This sensor is ideal for use in industrial, consumer electronics, environmental monitoring, HVAC, and scientific instrumentation where precise pressure monitoring is crucial. It supports applications needing reliable barometric and altimetric data.
