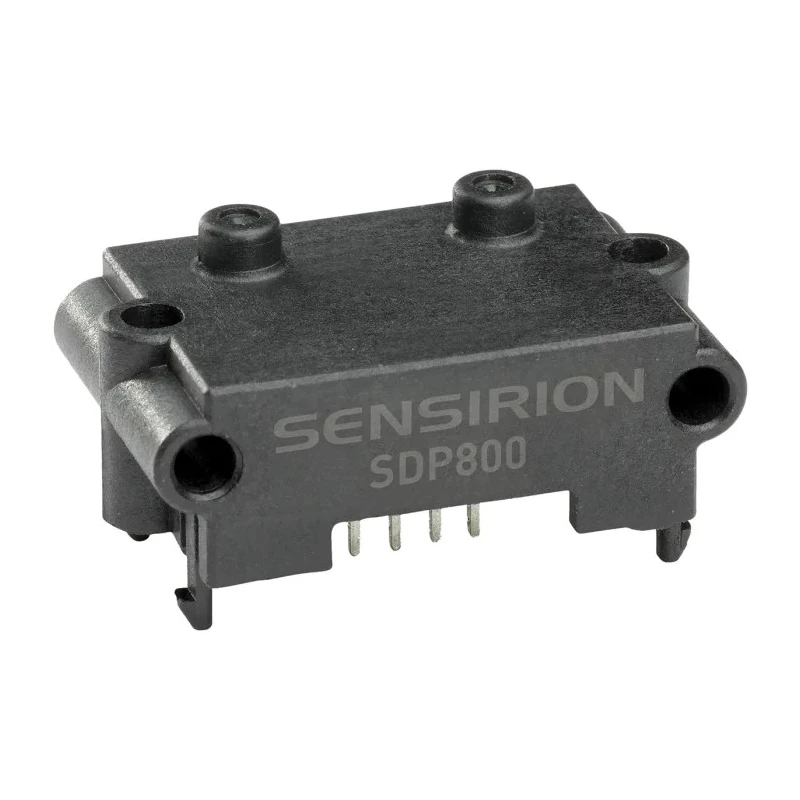

Sensirion Differential Pressure Sensor Manifold 41 bar 3-5.5V Analog Output SDP806-500Pa

Sensirion SDP806-500Pa differential pressure sensor is a high-performance analog sensor designed for precise measurement of differential pressure up to 500 Pa. It features a manifold mounting type with a 4-pin configuration, making it suitable for integration in compact electronic systems.

Operating with a supply voltage range of 3 V to 5.5 V, the sensor outputs an analog ratiometric voltage signal ranging from 100 mV to 900 mV, configurable between linear or square root output via an external pin. Its compact size (29 mm length and 14.25 mm height) and robust CMOSens technology deliver high accuracy of ±0.1 Pa and long-term stability.

The sensor is intended for use with air or other non-aggressive gases and can operate reliably within a temperature range of -40°C to 85°C. It withstands a maximum overload pressure of 1 bar and a maximum operating pressure of 500 Pa, providing durability in demanding applications.

Typical applications include HVAC systems, medical devices, industrial process control, and automotive air flow monitoring where precise differential pressure measurements are essential. The manifold port type facilitates easy installation and maintenance.

Operates at supply voltage from 3 V to 5.5 V with analog output voltage between 100 mV and 900 mV. Body dimensions of 29 mm in length and 14.25 mm in height support compact design integration. Accuracy of ±0.1 Pa assures high precision measurements.

Wide operating temperature range from -40°C to 85°C ensures reliability in various environments. Maximum overload pressure of 1 bar protects the sensor from damage. Manufactured using CMOSens technology for enhanced signal to noise ratio and stability.
