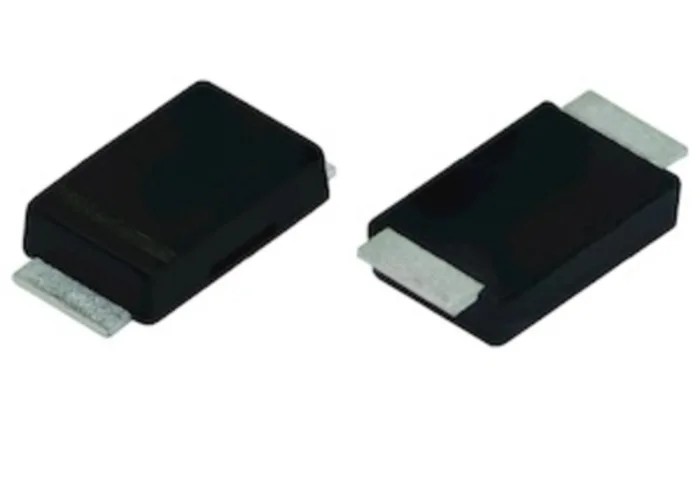

Vishay 60 V 2 A Surface Mount Schottky Barrier Diode 2-Pin DO-221AD VSS8D2M6HM3/H
Specifications
| Country of Origin | China |
|---|---|
| Brand | Vishay |
| Height | 2.7mm |
| Length | 5mm |
| Model | VSS8D2M6HM3/H |
| Mount Type | Surface |
| Series | VSS8D2M15 |
| Maximum Operating Temperature | 175°C |
| Package Type | DO-221AD |
| Minimum Operating Temperature | -40°C |
| Standards/Approvals | RoHS |
| Pin Count | 2 |
| Automotive Standard | AEC-Q101 |
| Maximum Continuous Forward Current If | 2A |
| Peak Reverse Repetitive Voltage Vrrm | 60V |
| Diode Configuration | Single |
| Rectifier Type | Schottky |
| Peak Non-Repetitive Forward Surge Current Ifsm | 60A |
| Maximum Forward Voltage Vf | 0.46V |
Key Features
- Features a 2-pin DO-221AD package suitable for surface mounting.
- Maximum continuous forward current rating of 2 amperes.
- Peak reverse repetitive voltage of 60 volts for reliable blocking.
- Maximum forward voltage of 0.46 volts to minimize power losses.
- Wide operating temperature range from -40°C to 175°C.
- Designed with Schottky barrier technology for low leakage current.
- Peak non-repetitive forward surge current up to 60 amperes.
- Compliant with RoHS standards and AEC-Q101 automotive qualification.
Product Description
Vishay VSS8D2M6HM3/H is a surface mount Schottky Barrier Diode rated for 60 V and 2 A, housed in a 2-pin DO-221AD package. It is engineered for fast switching and low forward voltage drop, making it ideal for use in high frequency inverters, freewheeling diodes, DC/DC converters, and polarity protection circuits in commercial, industrial, and automotive electronic applications.
The diode operates reliably over a temperature range from -40°C to 175°C, ensuring durability in harsh environments. Its low leakage current and low power losses contribute to efficient circuit performance. The diode handles peak non-repetitive forward surge currents of up to 60 A, which lends robustness during transient conditions.
This diode complies with RoHS environment standards and meets the stringent automotive AEC-Q101 certification, verifying its suitability for automotive electronics systems. Its compact physical size of 5 mm length and 2.7 mm height supports automated PCB assembly and compact board design constraints.
2-pin DO-221AD surface mount package. 60 V peak reverse voltage rating. 2 A maximum continuous forward current. Maximum forward voltage of 0.46 V. Operating temperature range from -40°C to 175°C. Low forward voltage drop and minimal leakage current.
Peak surge current rating of 60 A. RoHS compliant and AEC-Q101 automotive qualified. Compact dimensions for automated placement.
This component is essential for industries including automotive electronics, power management systems, and industrial controls where efficient rectification and switching are critical. You can explore more Schottky diodes and rectifiers under the Semiconductor category on EnvMart for varied application needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current rating is 2 amperes.
The peak reverse repetitive voltage is 60 volts.
The maximum forward voltage drop is 0.46 volts.
It operates within a temperature range from -40°C to 175°C.
This diode is housed in a 2-pin DO-221AD package suitable for surface mounting.
The peak non-repetitive forward surge current rating is up to 60 amperes.
Yes, it complies with RoHS standards and is AEC-Q101 automotive qualified.
The diode has a height of 2.7 mm and a length of 5 mm.
This diode is classified as a Schottky rectifier.
It is suitable for high frequency inverters, freewheeling diodes, DC/DC converters, and polarity protection circuits.
This diode has a pin count of 2.
The country of origin for this diode is China.
