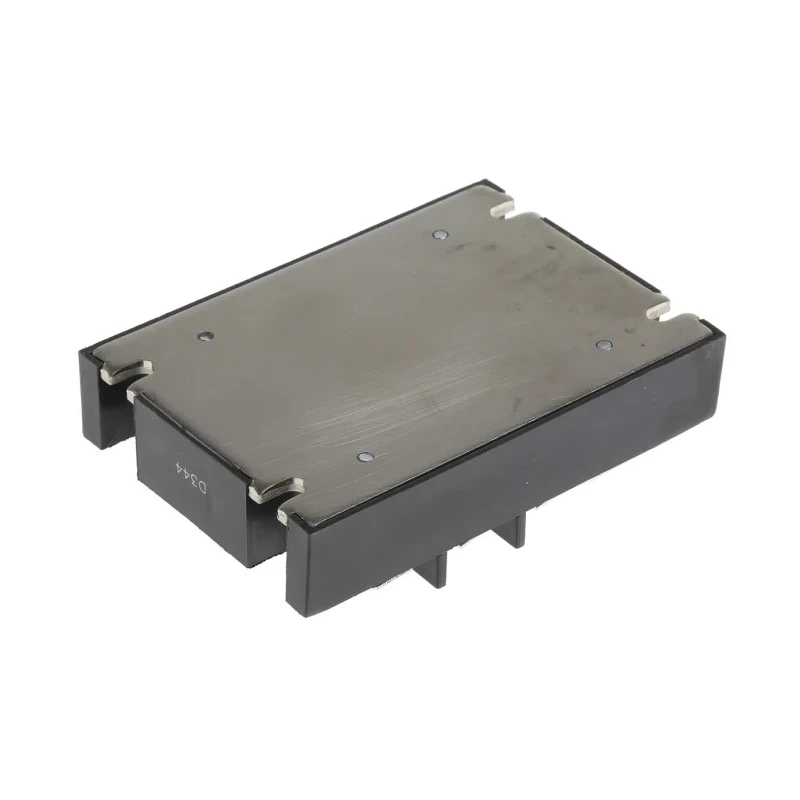

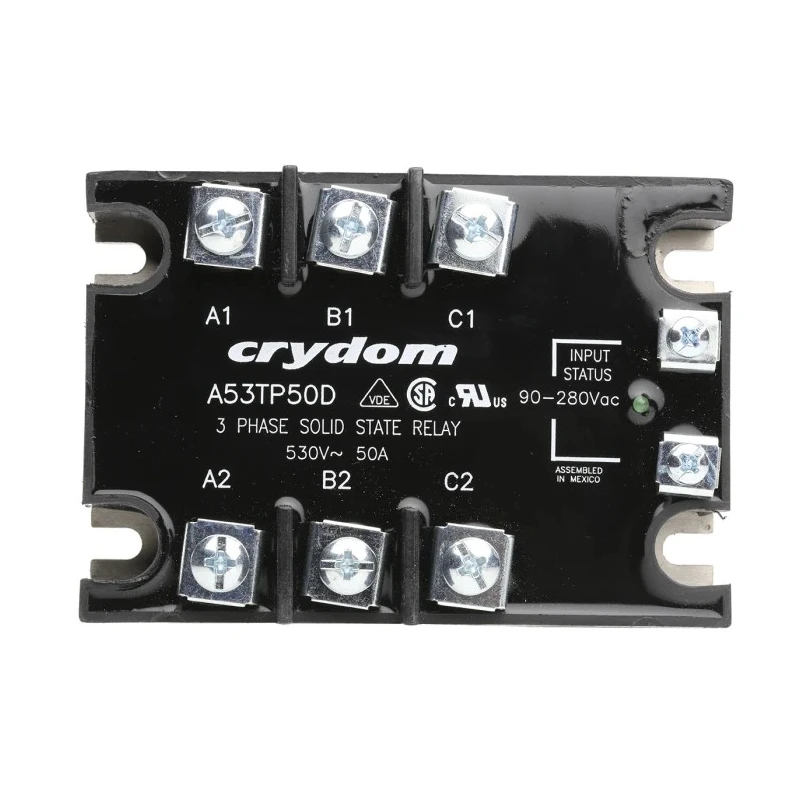

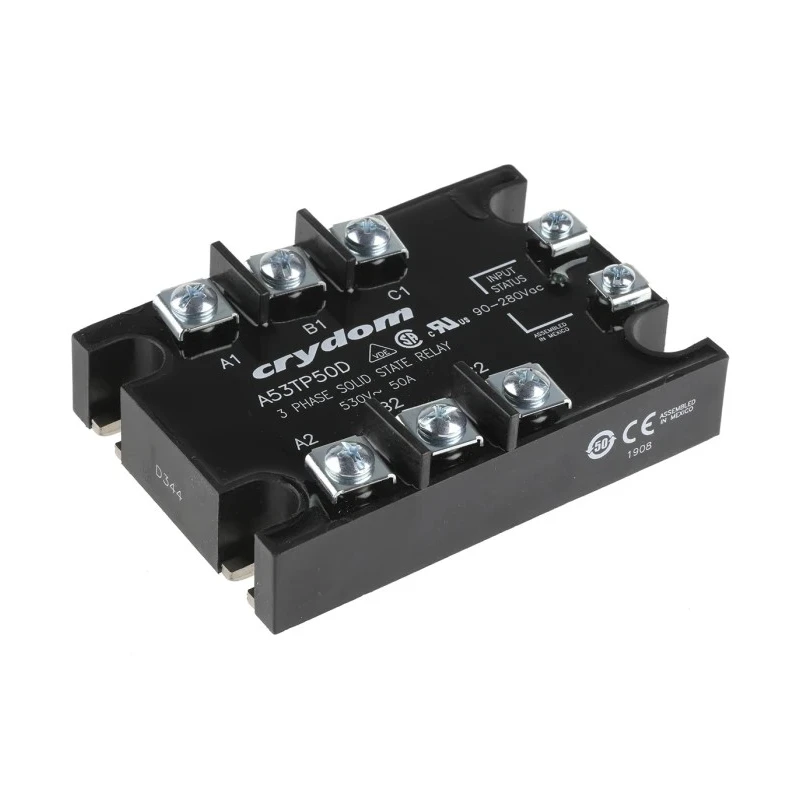

Crydom 53TP Series Solid State Relay 50 A Load, Panel Mount, 530 Vrms Load Voltage, 280Vrms Control Voltage A53TP50D
Specifications
| Country of Origin | Mexico |
|---|---|
| Brand | Crydom |
| Height | 30mm |
| Length | 103.8mm |
| Model | A53TP50D |
| IP Rating | IP20 |
| Width | 73.4mm |
| Mount Type | Panel |
| Output type | SCR |
| Series | 53TP |
| Maximum Operating Temperature | 80°C |
| Capacitance | 8pF |
| Minimum Operating Temperature | -40°C |
| Terminal type | Screw |
| Switching Function | Zero Voltage Switching |
| Maximum Load Current | 50A |
| Standards/Approvals | RoHS |
| Minimum Load Voltage | 48V ac |
| Off State Leakage Current | 10mA |
Key Features
- Operates with a maximum load current of 50A for high-power switching.
- Suitable for panel mounting with zinc-plated steel screws for corrosion resistance.
- Features zero voltage switching function for minimized electrical noise.

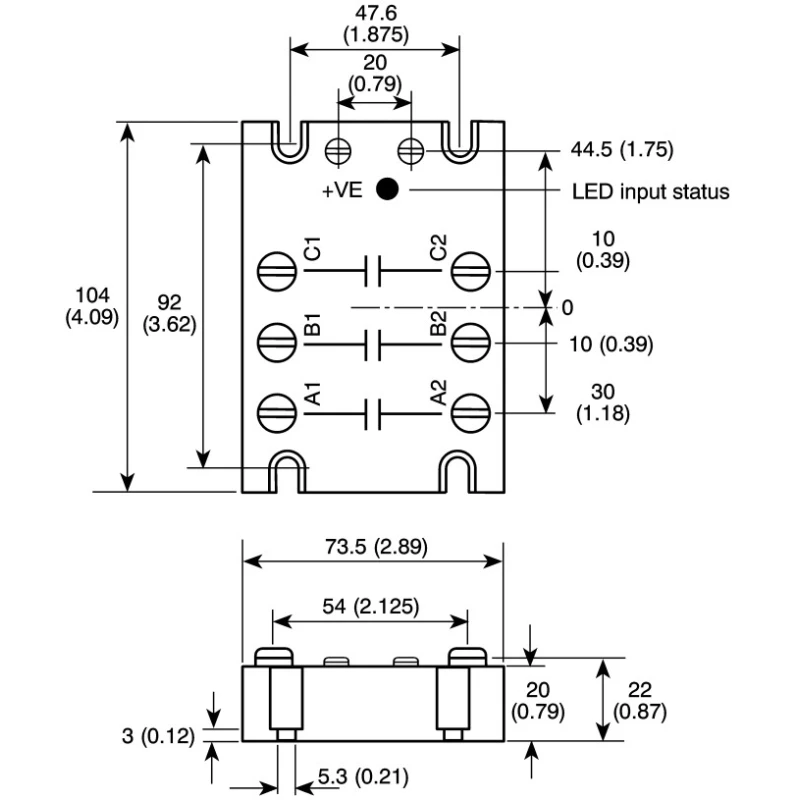

- Compact dimensions of 103.8mm length, 30mm height, and 73.4mm width fit tight control panels.
- Broad operating temperature range from -40°C to +80°C for demanding environments.
- LED input status indicator for easy monitoring of relay operation.
- Maximum turn-on and turn-off time of 50ms for fast switching response.
- Off state leakage current of only 10mA reduces power loss when inactive.
Product Description
The Crydom A53TP50D is a high-quality solid state relay from the 53TP Series designed for industrial and automation applications requiring reliable AC load switching. It supports a maximum load current of 50A and can operate across a wide load voltage range of 48V to 530 Vrms, enabling compatibility with diverse power systems.
This device utilizes a zero voltage switching function which minimizes switching noise and electrical stress on connected equipment, enhancing longevity. Its compact panel mount design with dimensions 103.8mm (L) x 30mm (H) x 73.4mm (W) allows installation in confined equipment enclosures.
With an operating temperature range from -40°C to 80°C, the relay is suitable for harsh industrial environments including HVAC, motor control, pumping operations, and automation processes. The device features high-quality zinc-plated steel screws and saddle clamps providing corrosion resistance and mechanical durability.
Additional functional highlights include an LED input status indicator for easy visual operation monitoring and a rapid turn-on/off switching time of up to 50 milliseconds. The off state leakage current is low at 10mA, and the output type is SCR, optimized for controlling AC loads with stable performance.
High current capacity suitable for medium-power industrial applications. Robust mechanical construction ensures long service life in tough conditions. Flexible voltage ratings accommodate various AC load requirements. Compact form factor simplifies integration into control panels.
Wide temperature tolerance supports operation in diverse environments. Low off state leakage reduces energy consumption during standby. Easy panel mounting using screw terminals for secure installation. LED indicator enhances operational visibility and troubleshooting.
Zero voltage switching reduces electrical noise generation. Reliable SCR output type supports precise load control.
This Crydom Solid State Relay is manufactured in Mexico and complies with RoHS standards for environmental compliance. Its rugged design and technical specifications make it an ideal choice for industrial automation, manufacturing systems, and electrical control panels. Browse the Electronics & Electricals category at EnvMart for compatible relay products and accessories.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum load current for this model is 50A, making it suitable for high-power switching applications.
This solid state relay operates across a load voltage range of 48V to 530 Vrms, allowing compatibility with various power systems.
It features a zero voltage switching function, which minimizes electrical noise and stress on connected equipment during operation.
The dimensions of this model are 103.8mm in length, 30mm in height, and 73.4mm in width, making it compact for panel mounting.
The relay can operate within a temperature range of -40°C to 80°C, suitable for harsh industrial environments.
This model uses screw terminals for secure installation in control panels.
The off state leakage current is 10mA, which helps reduce power loss when the relay is inactive.
Yes, it features an LED input status indicator that allows for easy monitoring of the relay's operation.
The output type of this relay is SCR, optimized for controlling AC loads with stable performance.
Yes, it complies with RoHS standards for environmental compliance, ensuring it meets specific safety and environmental regulations.
This solid state relay is manufactured in Mexico, ensuring adherence to quality standards during production.
It is suitable for industrial and automation applications, including HVAC, motor control, and pumping operations.
