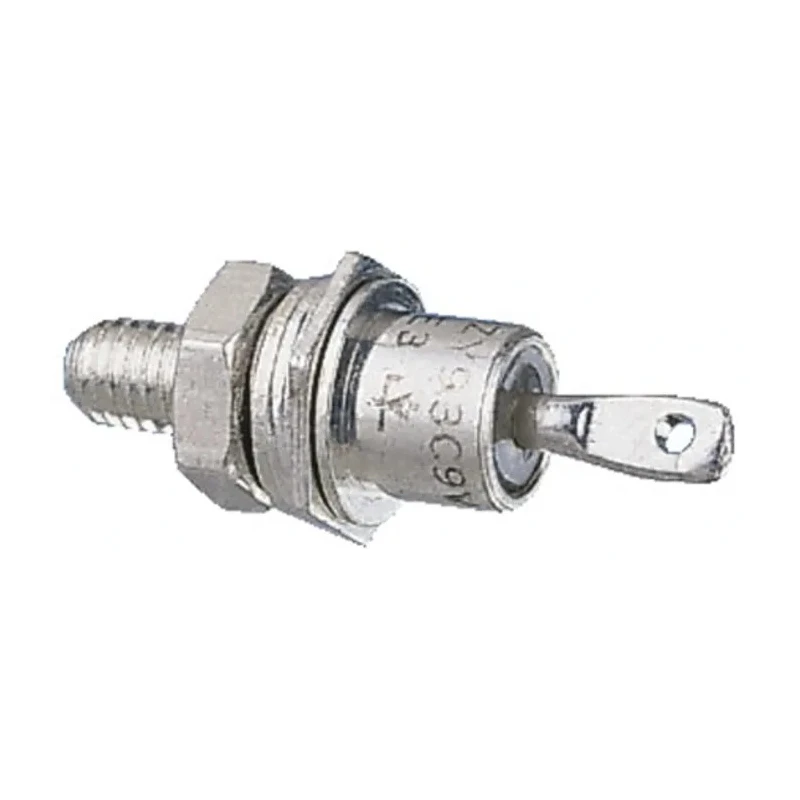

Vishay 800 V 80 A Standard Recovery Rectifier Diode 2-Pin DO-2013AB VS-80PFR80

Vishay VS-80PFR80 is a standard recovery rectifier diode designed for power electronic applications requiring a high continuous forward current of 80 A and a peak reverse voltage rating of 800 V. Packaged in a rugged 2-pin DO-2013AB stud mount style, this diode offers reliable mounting and effective heat dissipation, making it suitable for heavy industrial and electronic assembly environments.

This semiconductor diode is engineered to withstand harsh operating conditions with a temperature range from -55°C minimum operating temperature up to 180°C maximum operating temperature. Its peak non-repetitive forward surge current of 1.6 kA accommodates transient surges common in power circuits.

The diode's maximum forward voltage of 1.4 V ensures efficient power conduction with minimal voltage loss, improving overall circuit efficiency. The low peak reverse current of 9 mA helps reduce standby losses and improves device longevity.

Dimensionally, the diode measures 36.4 mm in length, 18.9 mm in width, and 17.25 mm in diameter/height, offering a compact form factor suitable for power rectification in industrial, electronic components, semiconductor, and power supply equipment applications.

RoHS compliant, the Vishay VS-80PFR80 is manufactured in India and meets modern environmental standards. It is commonly used in power rectifier circuits, industrial machinery, power conversion systems, and other demanding semiconductor applications requiring durable and efficient rectification components.

This diode is designed for stud mount applications ensuring reliable mounting and thermal dissipation. The maximum forward voltage drop is 1.4 V, providing efficient conduction. It operates over a wide temperature range, from -55°C to 180°C maximum.

The diode offers a peak non-repetitive forward surge current of 1.6 kA for transient conditions. Its compact rectangular shape has dimensions approximately 36.4 mm length, 18.9 mm width, and 17.25 mm height/diameter. The device has a low peak reverse current of 9 mA and supports robust electrical performance.

Compliant with RoHS standards, suitable for environmentally safe electronic designs. Manufactured in India, ensuring local origin quality assurance. Explore a broad range of Semiconductor Diodes and electronic components on EnvMart for industrial, laboratory, and manufacturing uses with confidence in quality and origin.
