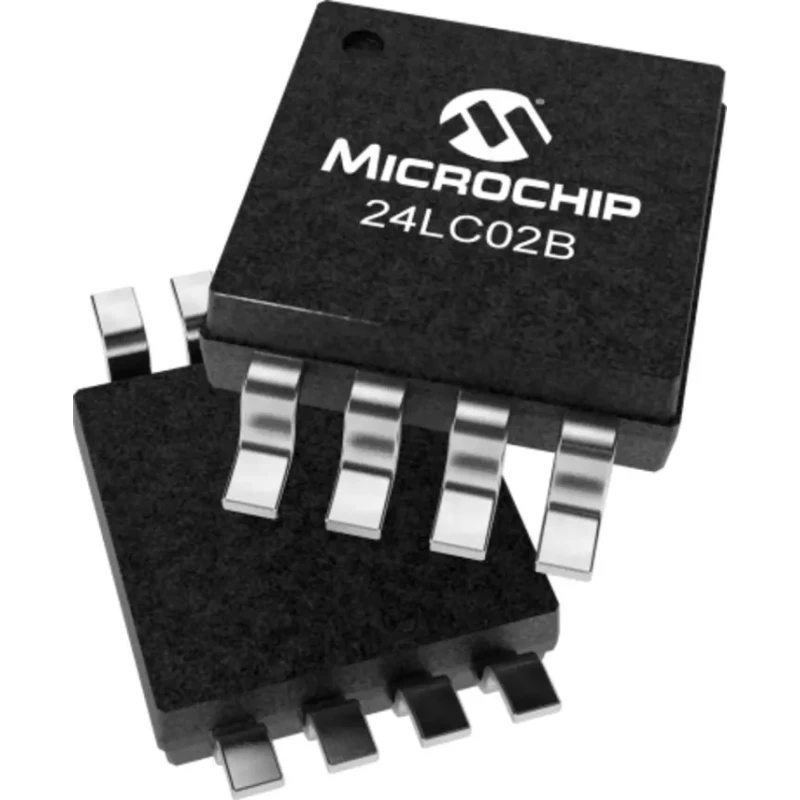

Microchip 2 kB Serial EEPROM, 900 ns Access Time, 8-Pin SOIC Serial-I2C 24LC02B/SN

Microchip 24LC02B/SN is a highly reliable 2 kB serial electrically erasable programmable read-only memory (EEPROM) featuring a fast 900 ns maximum random access time. Designed in a compact 8-pin SOIC surface-mount package, it delivers efficient non-volatile data storage ideal for embedded applications and electronic systems.

This device organizes memory as a single block of 256 words by 8 bits, communicating data via a 2-wire I2C serial interface with a maximum clock frequency of 400 kHz. It supports a robust operating supply voltage range from 2.5 V to 5.5 V, allowing seamless integration into varied electronic circuits.

Engineered for industrial-grade performance, the 24LC02B/SN functions reliably within ambient temperature limits from 0°C to 70°C and meets the automotive standard AEC-Q100, underscoring its durability in automotive and demanding applications. It also sustains data retention for up to 200 years, assuring persistent memory preservation over long deployment periods.

The device's compact footprint with dimensions of 4.9 mm length and 6 mm width supports efficient PCB layout designs, while the low supply current of 3 mA minimizes power consumption, optimizing energy use in embedded systems.

Applications include industrial control systems, consumer electronics, automotive electronics, and any system requiring reliable non-volatile memory with fast access. Factory programming services are available to customize the memory contents.

This EEPROM offers 2 kB memory size, organized as 256 x 8-bit memory words. Operates via a 2-wire Serial-I2C interface supporting up to 400 kHz clock frequency. Feature surface mount technology with an 8-pin SOIC package type.

Functions over a supply voltage range from 2.5 V to 5.5 V for flexibility. Designed for operation between 0°C and 70°C, suitable for typical industrial environments. Includes automotive standard AEC-Q100 compliance ensuring reliability.

Maintains data retention of up to 200 years for long-term storage stability. Low supply current of 3 mA enhances power efficiency. The compact dimensions of 4.9 mm length and 6 mm width facilitate space-saving PCB design.
