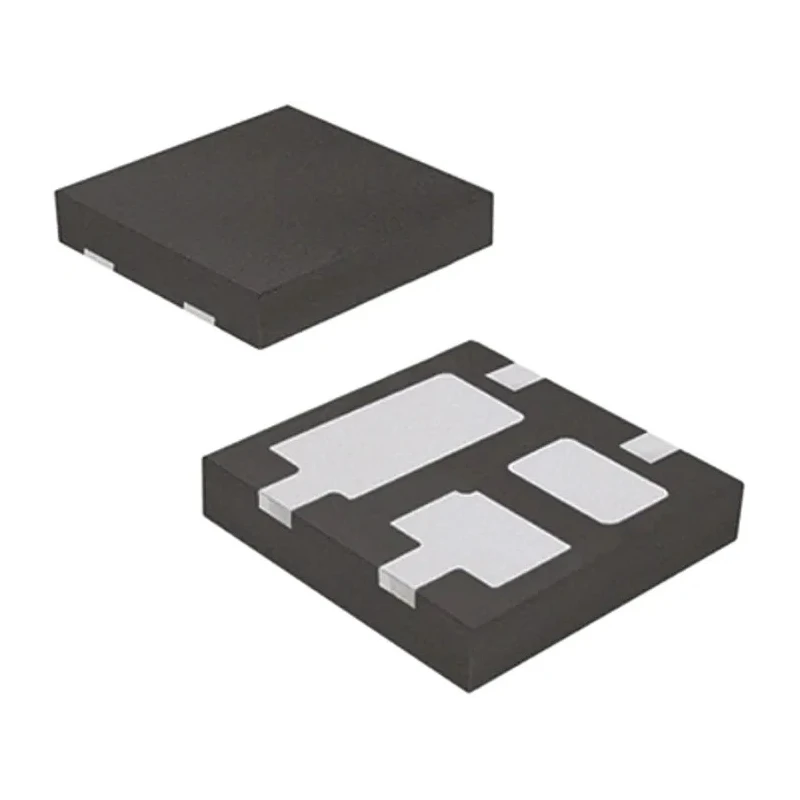

DiodesZetex Bridge Rectifier DFN Package 100 V 8 A 4-Pin Surface Mount SBR05M100BLP-7
Specifications
| Country of Origin | India |
|---|---|
| Brand | DiodesZetex |
| Height | 3.1mm |
| Length | 3.1mm |
| Model | SBR05M100BLP-7 |
| Width | 3.1mm |
| Mount Type | Surface |
| Series | SBR |
| Configuration | Single |
| Maximum Operating Temperature | 150°C |
| Package Type | DFN |
| Minimum Operating Temperature | -55°C |
| Number of Phases | 1 |
| Pin Count | 4 |
| Peak Reverse Repetitive Voltage Vrrm | 100V |
| Peak Reverse Current Ir | 250μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 8A |
| Forward Current If | 500mA |
| Peak Forward Voltage Vf | 730mV |
Key Features
- Equipped with SBR series Super Barrier Rectifier technology for ultra-low leakage current.
- Designed for outstanding high temperature stability with maximum operation up to 150°C.
- Compact DFN package sized 3.1 mm by 3.1 mm with 4 pins for surface mounting.
- Forward current rating of 500 mA and peak forward voltage of 730 mV ensures efficient conduction.
- Operates reliably from -55°C minimum operating temperature to 150°C maximum.
- Optimized for soft and fast switching capabilities suitable for power conversion.
- Peak reverse current of 250 µA minimizes power loss in circuits.
- A single-phase bridge rectifier configuration designed for AC to DC conversion.
Product Description
DiodesZetex SBR05M100BLP-7 Bridge Rectifier is a compact surface mount semiconductor device in a DFN package type that offers reliable AC to DC conversion for electronic power applications. It provides a peak repetitive reverse voltage of 100 V and a peak non-repetitive forward surge current rating of 8 A. The device features the Super Barrier Rectifier (SBR) technology by Diodes Inc, ensuring ultra-low leakage currents and excellent high temperature operating stability, making it suitable for demanding industrial and commercial electronic environments.
The bridge rectifier's compact dimensions of 3.1 mm height and length enable efficient PCB space utilization in electronic assemblies. With a forward current capacity of 500 mA and peak forward voltage drop of 730 mV, it supports efficient power conduction with minimal losses. It operates reliably across a wide temperature range from -55°C to 150°C, suitable for applications requiring thermal robustness.
This single-phase diode bridge with 4 pins is optimized for soft and fast switching, benefiting power supply designs, signal rectification, and power management in electronics. Its low peak reverse current of 250 µA reduces leakage losses and enhances overall efficiency.
The rectifier finds applications in industrial power control, consumer electronics, automotive electronics (though not automotive standard certified), and general purpose power rectification tasks. It is ideal for electronic engineers designing efficient, heat-stable power circuits using surface mount technology.
Ultra-low leakage current technology enhances efficiency. Stable operation up to 150°C maximum temperature rating. Compact 3.1 mm × 3.1 mm DFN package suitable for surface mounting. Configured as a single-phase bridge rectifier with 4 pins.
Reliable AC to DC conversion for power electronics and industrial applications. Fast switching characteristics beneficial for switching power supplies. Wide operating temperature range from -55°C to 150°C.
Explore more high-performance Bridge Rectifiers and semiconductor components in the Electronics & Electricals category at EnvMart to support your industrial and laboratory power electronics projects.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The peak reverse repetitive voltage rating is 100 V.
It can operate reliably at a maximum temperature of 150°C.
The forward current rating is 500 mA.
The rectifier comes in a compact DFN package measuring 3.1 mm by 3.1 mm.
The peak forward voltage drop is 730 mV.
It has a peak non-repetitive forward surge current rating of 8 A.
It operates reliably from a minimum temperature of -55°C to a maximum of 150°C.
It is configured as a single-phase bridge rectifier.
The peak reverse current is 250 µA.
It is suitable for industrial power control, consumer electronics, and general purpose power rectification tasks.
The bridge rectifier has 4 pins.
It utilizes Super Barrier Rectifier (SBR) technology for ultra-low leakage current.
