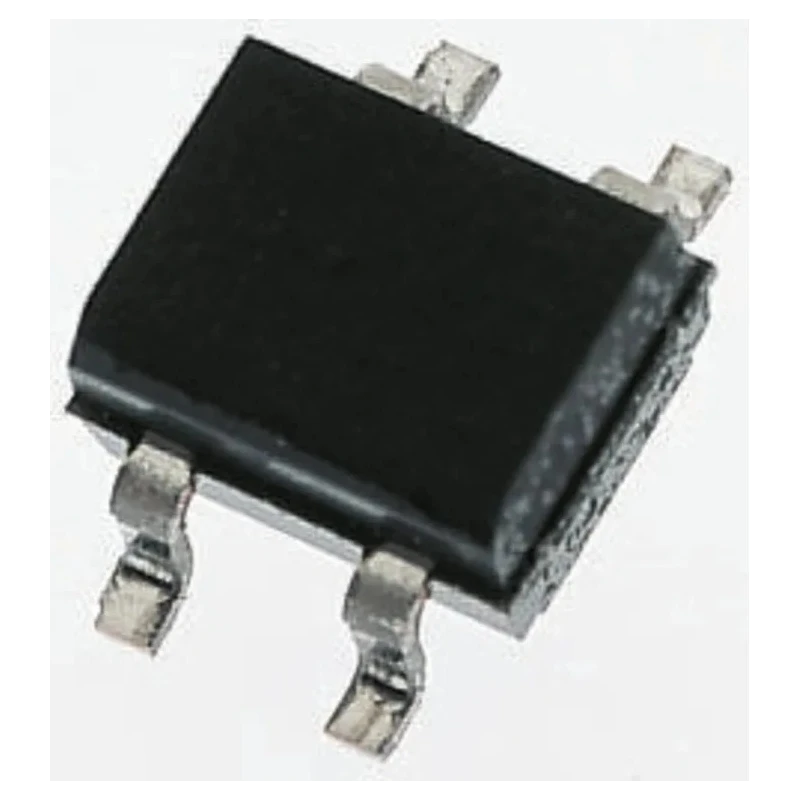

DiodesZetex Bridge Rectifier 400 V 30 A 4-Pin Mini-DIP Surface Mount HD04-T

Free Delivery in India | Lowest Global Shipping Charges

DiodesZetex Bridge Rectifier 400 V 30 A 4-Pin Mini-DIP Surface Mount HD04-T

Name: DiodesZetex Bridge Rectifier 400 V 30 A 4-Pin Mini-DIP Surface Mount HD04-T
Brand: DiodesZetex
SKU: 287010
Price: 0.23 USD
Availability: InStock



Category Bridge Rectifier Brand DiodesZetex Condition New

Specifications

Country of Origin	China
Brand	DiodesZetex
Height	2.7mm
Length	4.9mm
Model	HD04-T
Width	4mm
Mount Type	Surface
Series	HD-T
Configuration	Single
Maximum Operating Temperature	150°C
Package Type	Mini-DIP
Minimum Operating Temperature	-55°C
Number of Phases	1
Pin Count	4
Automotive Standard	AEC-Q100
Peak Reverse Repetitive Voltage Vrrm	400V
Peak Reverse Current Ir	500μA
Peak Non-Repetitive Forward Surge Current Ifsm	30A
Forward Current If	800mA
Peak Forward Voltage Vf	1V

Key Features

This single-phase bridge rectifier converts AC input to DC output effectively.
It supports a maximum forward current of 800 mA ensuring reliable operation.
Operates in extreme temperature ranges from -55°C to 150°C.
Features a low peak forward voltage drop of 1 V for efficient performance.
Designed according to Automotive Standard AEC-Q100 for enhanced reliability.
Peak non-repetitive forward surge current capability of 30 A for transient conditions.
Has a peak reverse current of 500 μA minimizing leakage losses.
Ideal for automated assembly in electronic circuits requiring precise semiconductor control.

Product Description

DiodesZetex HD04-T Bridge Rectifier is a reliable, single-phase semiconductor device designed to convert alternating current (AC) into direct current (DC) through a 4-pin Mini-DIP surface mount configuration. It is constructed to handle a peak reverse repetitive voltage of 400 V and a peak forward surge current of 30 A, offering exceptional durability in demanding electronic environments.

This bridge rectifier is tailored for PCB surface mount applications and features compact dimensions of 4.9 mm length, 4 mm width, and 2.7 mm height, making it suitable for automated manufacturing processes. It supports a continuous forward current of 800 mA, with a peak forward voltage drop of just 1 V, which contributes to high efficiency and low power loss during operation.

The HD04-T model adheres to automotive standard AEC-Q100, ensuring robust performance in automotive and industrial electronic applications. It is engineered to operate reliably over a wide temperature range, from -55°C minimum to a maximum of 150°C, allowing it to perform well under varying environmental conditions.

This single-phase bridge rectifier is commonly used in power supply circuits, motor control, and various industrial electronics where AC to DC conversion is necessary. Its compact Mini-DIP package supports automated assembly and standardized PCB mounting, reducing production costs and improving assembly accuracy.

The device's efficient electrical characteristics, including low forward voltage and minimal reverse leakage current, enable stable and efficient power conversion. Designed and manufactured in China, the HD04-T model is part of the HD series by Diodes Inc, recognized for its quality and reliability in semiconductor components.

Its peak forward surge capability protects circuits from transient surges, enhancing overall system longevity and safety.

The DiodesZetex HD04-T Bridge Rectifier is ideal for industrial, automotive, consumer electronics, and laboratory applications requiring reliable and efficient AC to DC conversion. It fits seamlessly into electronic assemblies demanding robust semiconductor Bridge Rectifiers.
