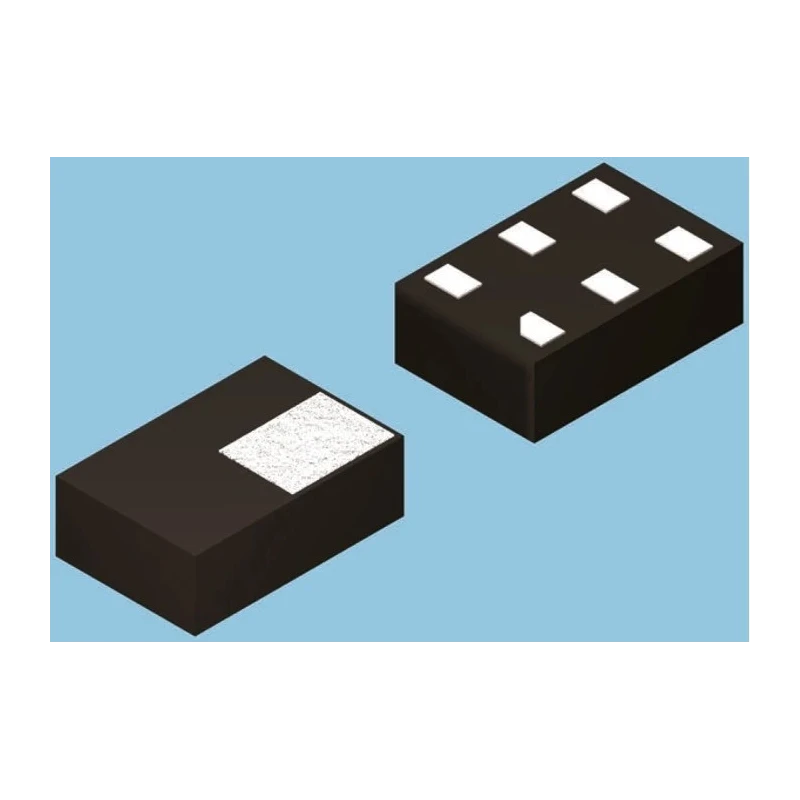

Nexperia Uni-Directional 5-Element ESD Protection Diode 25W 6-Pin SOT-886 PESD3V3L5UF,115

Nexperia PESD3V3L5UF,115 is a 5-element uni-directional ESD Protection Diode designed for protecting sensitive electronic equipment from electrostatic discharges. The device features a common anode diode configuration implemented in a compact 6-pin SOT-886 surface mount package. It is engineered to handle transient voltage spikes up to 25 W of peak pulse power dissipation.

The diode ensures stability with a minimum breakdown voltage of 5.3 V and a maximum reverse stand-off voltage of 3.3 V. It offers a peak pulse current capability of 2.5 A and clamps voltage at a maximum of 10 V to safeguard downstream circuits. Its maximum reverse leakage current is low at 300 μA contributing to minimal power loss during normal operation.

With operating temperature ranging from -65°C to 150°C, this diode is suitable for use in a wide variety of environments from industrial to commercial electronics. The small form factor of 1.5 mm length, 1.05 mm width, and 0.5 mm height facilitates integration on high-density PCBs with space constraints.

Applications of this device include transient voltage suppression in power & signal lines, and electrostatic discharge protection in consumer electronics, automotive electronics (non-certified), manufacturing equipment, and industrial control systems. The product is ideally suited for circuit designers seeking reliable ESD mitigation with compact footprint and robust electrical characteristics.

Provides electrostatic discharge protection with a common anode diode configuration. Minimum breakdown voltage of 5.3 V and maximum reverse stand-off voltage of 3.3 V. Compact package with dimensions 1.5 mm length, 1.05 mm width, and 0.5 mm height.

Supports peak pulse current up to 2.5 A with a clamping voltage of 10 V. Operates reliably between temperatures of -65°C to 150°C. Designed for surface mount applications with 6 pins in the SOT-886 package type. Maximum reverse leakage current is 300 μA ensuring low leakage during operation.

Comprises five diode elements integrated per chip for effective transient voltage suppression. Manufactured to industrial standards with no specific automotive certification. Explore a wide range of semiconductor devices and ESD protection components at EnvMart designed to enhance the safety and durability of electronic systems.
