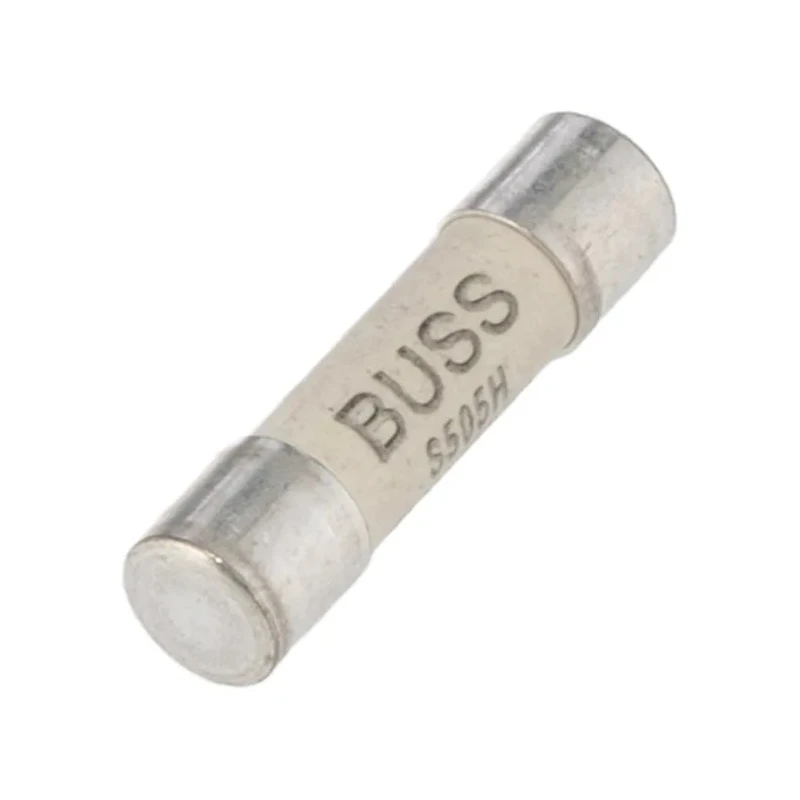

Eaton 6.3A T Ceramic Cartridge Fuse 5 x 20 mm S505H-6.3-R
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 250V ac |
| Diameter | 5mm |
| Brand | Eaton |
| Body Material | Ceramic |
| Model | S505H-6.3-R |
| Overall Length | 20mm |
| Current Rating | 6.3A |
| Series | S505H |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -40°C |
| Standards/Approvals | CCC, cURus, IEC 60127-2, PSE, TUV |
| Fuse Characteristics | Time Delay |
| Fuse Size | 5 x 20 mm |
Key Features
- Constructed with ceramic body for enhanced thermal resistance and mechanical durability.
- Time-delay fuse characteristic protects against transient inrush currents effectively.
- High breaking capacity suitable for 400V DC and 500-600V AC applications.
- Complies with IEC 60127-2, CCC, cURus, PSE, and TUV standards for quality and safety assurance.
- Compatible with power supplies, adapters, laptops, TVs, lighting ballasts, and gaming systems.
- Operates reliably between -40°C and 85°C ambient temperature ranges.
- Optional axial leads available for varied installation configurations.
Product Description
Eaton S505H-6.3-R ceramic Cartridge Fuse is a reliable protective device rated at 6.3 amps with a compact 5 x 20 mm fuse size. Designed for industrial and electronic applications, it features a robust ceramic body that withstands high temperatures and mechanical stresses.
The fuse's time-delay characteristic allows it to handle transient overloads and inrush currents up to 60 minutes at 1.5 times rated current, which helps maintain circuit integrity without nuisance blows. It supports continuous operation at voltages up to 250V AC and is suitable for usage in a wide range of equipment including power supplies, adapters, computers, TVs, printers, lighting ballasts, and air conditioning units.
Manufactured under stringent quality and safety standards such as IEC 60127-2, CCC, cURus, PSE, and TUV, this fuse ensures dependable protection against overloads and short circuits. Its design incorporates plated end caps and optional axial leads for flexible installation options in circuits.
Operating temperature ranges from -40°C minimum to +85°C maximum, enabling performance stability in demanding environments. Its high breaking capacity rating supports applications up to 400V DC and 500-600V AC, making it versatile for both industrial and consumer electronics.
Robust ceramic body construction for heat and impact resistance. Time-delay functionality to handle temporary surges efficiently. Complies with multiple international safety and performance standards. Suitable for diverse applications such as computing, lighting, and HVAC systems.
Operates over a wide temperature range ensuring durability. High breaking capacity for superior overload and short circuit protection. Optional axial leads for flexible circuit installation. This Eaton fuse is ideal for engineers and technicians requiring high-quality circuit protection solutions for industrial, laboratory, manufacturing, and commercial applications.
Explore more quality circuit breakers and fuses for your professional needs at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Eaton S505H-6.3-R fuse has a current rating of 6.3 amps.
This fuse has a size of 5 x 20 mm, with a diameter of 5 mm and an overall length of 20 mm.
The maximum operating temperature for the Eaton S505H-6.3-R is 85°C.
It can handle continuous operation at voltages up to 250V AC and supports applications up to 400V DC and 500-600V AC.
The fuse has a time-delay characteristic, which allows it to handle transient overloads and inrush currents effectively.
The Eaton S505H-6.3-R complies with several standards including IEC 60127-2, CCC, cURus, PSE, and TUV.
The fuse is constructed with a ceramic body, which provides enhanced thermal resistance and mechanical durability.
The minimum operating temperature for the Eaton S505H-6.3-R is -40°C.
This model is suitable for a wide range of applications including power supplies, adapters, laptops, TVs, and lighting ballasts.
Yes, it has optional axial leads available for varied installation configurations in circuits.
The fuse has a high breaking capacity suitable for applications up to 400V DC and 500-600V AC.
This fuse is manufactured in India.
