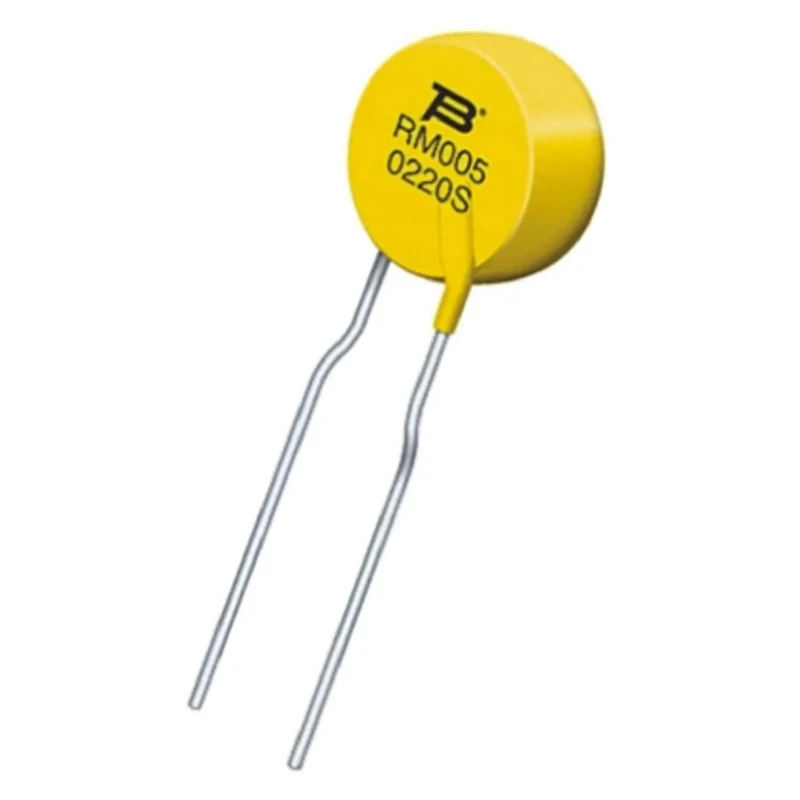

Bourns Resettable Fuse Radial Lead 240V AC, 0.05 A Hold Current, 1A Rating, MF-RM005/240-2

Name: Bourns Resettable Fuse Radial Lead 240V AC, 0.05 A Hold Current, 1A Rating, MF-RM005/240-2
Brand: BOURNS
SKU: 232535
Price: 0.56 USD
Availability: InStock



Category Resettable Fuse Brand BOURNS Condition New

Specifications

Country of Origin	China
Voltage	240V ac
Brand	Bourns
Height	12.9mm
Length	8.3mm
Model	MF-RM005/240-2
Width	3.8mm
Current Rating	1A
Series	MF-RM
Maximum Operating Temperature	85°C
Minimum Operating Temperature	-20°C
Trip Current	120mA
Power Dissipation	0.9W
Standards/Approvals	UL, RoHS
Lead Diameter	0.51mm
Time to Trip	10s
Hold Current	0.05A
Minimum Resistance	18.5Ω
Maximum Resistance	65Ω
Lead Orientation	Radial
Littelfuse 0.05A Resettable Fuse, 240V ac/dcBrand	Littelfuse

Key Features

Radial lead orientation facilitates easy PCB mounting.
Features quick resettable function providing thousands of automatic resets.
Compact dimensions of 8.3mm length, 12.9mm height, and 3.8mm width.
Hold current rated at 0.05 A and maximum current rating 1 A.
Power dissipation of 0.9 W ensures efficient protection.
Operating temperature range from -20°C to 85°C for versatile applications.
Complies with UL and RoHS standards for safety and environmental protection.
Suitable for applications including power supplies, HVAC, automotive and electronic circuits.

Product Description

Bourns MF-RM005/240-2 Resettable Fuse is a high-quality radial lead PTC fuse designed for automatic overcurrent and overtemperature protection in electrical and electronic equipment. It operates at 240V AC with a hold current of 0.05 A and is rated to carry up to 1 A current with rapid tripping in fault conditions.

This resettable fuse integrates a robust flame retardant epoxy polymer insulated body, compliant with UL 94V-0, providing high electrical insulation and safety. Its compact size with dimensions 8.3mm (length), 12.9mm (height), and 3.8mm (width) allows incorporation in space-constrained PCB designs.

The MF-RM series is known for fast response, reduced electromagnetic interference, and maintenance-free operation. It rapidly switches from low to high resistance during electrical overloads or short circuits and automatically resets after power is removed, significantly extending equipment life and reducing repair costs.

Common applications include food blenders, coffee machines, HVAC systems, electric fans, blowers, AC adapters, power supplies, automotive and medical equipment, instrumentation, control systems, computers, and audiovisual telecommunications devices.

Automatic resettable operation capable of thousands of resets. Radial leads with 0.51mm diameter for reliable soldering. Hold current of 0.05 A with a trip current at 120mA and a trip time of 10 seconds. Operating temperature range between -20°C and +85°C.

Power dissipation rating of 0.9 W for efficient fault management. Product meets international safety standards including UL and RoHS certifications. Maintenance-free design eliminates fuse holder requirements. Manufactured in China with proven quality controls.

This Bourns Resettable Fuse is ideal for industrial, commercial, and consumer electronic applications requiring reliable circuit protection. For more options, explore EnvMart’s comprehensive electrical fuse and circuit protection category for products matching various voltage and current ratings.
