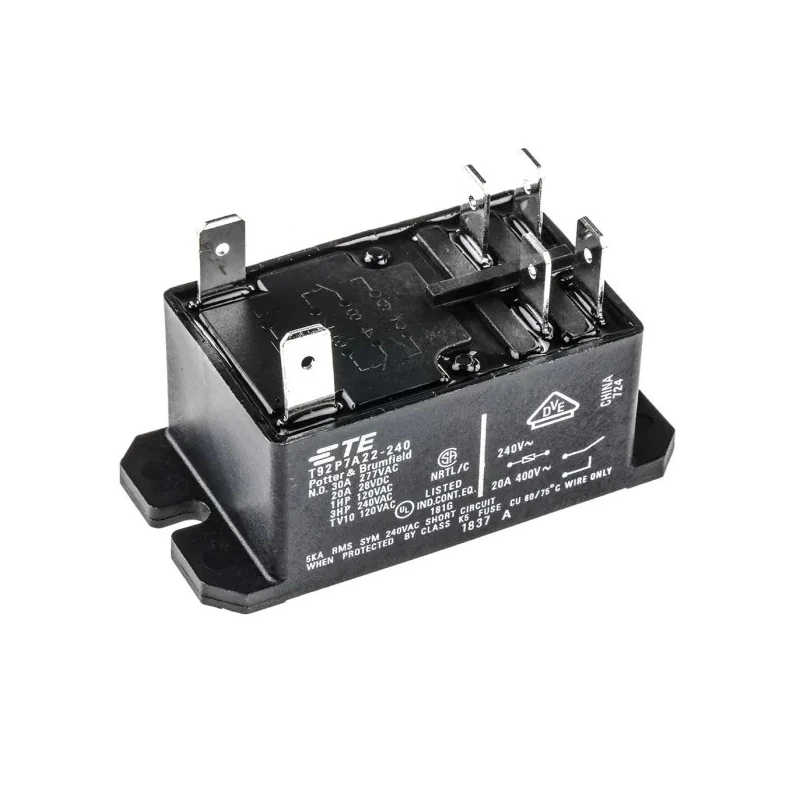

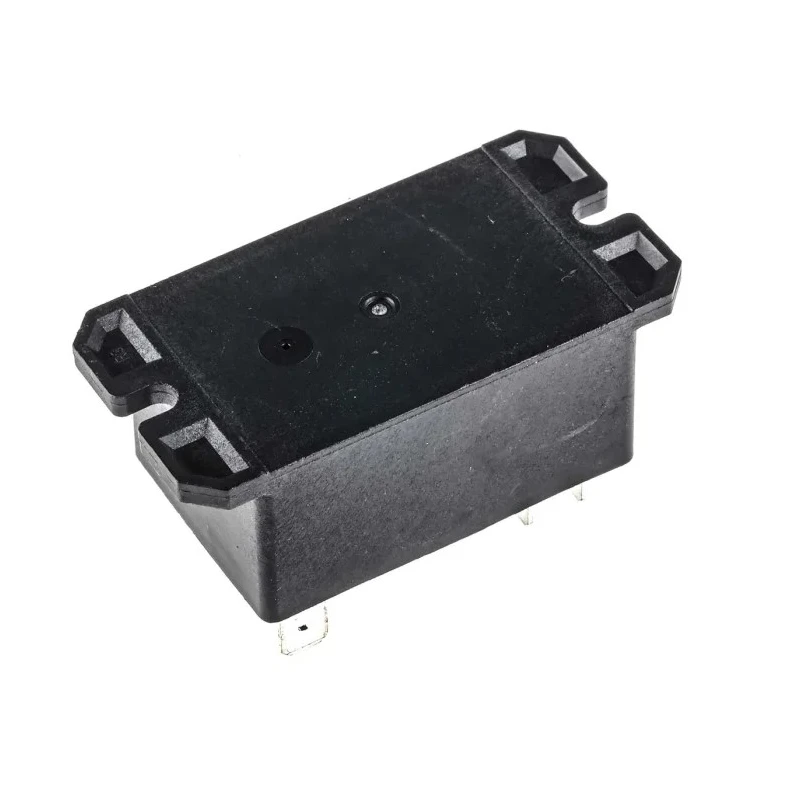

TE Connectivity Power Relay 240V AC Coil 30A Switching Current DPST Model T92P7A22-240 6-1393211-2
Specifications
| Country of Origin | China |
|---|---|
| Brand | TE Connectivity |
| Height | 38mm |
| Length | 68.6mm |
| Model | T92P7A22-240 6-1393211-2 |
| Width | 34.5mm |
| Contact Material | Silver Alloy |
| Series | T92 |
| Maximum Operating Temperature | 65°C |
| Contact Configuration | DPST |
| Minimum Operating Temperature | -55°C |
| Switching Current | 30A |
| Terminal type | Quick Connect |
| Standards/Approvals | RoHS |
| Coil Resistance | 3.8kΩ |
| Coil Voltage | 240V ac |
| Switching DC Voltage | 28V dc |
| Switching AC Voltage | 600V ac |
Key Features
- This relay supports a coil resistance of 3.8 kΩ for efficient operation.
- It operates reliably over a temperature range from -55°C to 65°C.
- Designed to switch AC voltages up to 600V and DC voltages up to 28V.
- Constructed with silver alloy contacts for high conductivity and durability.

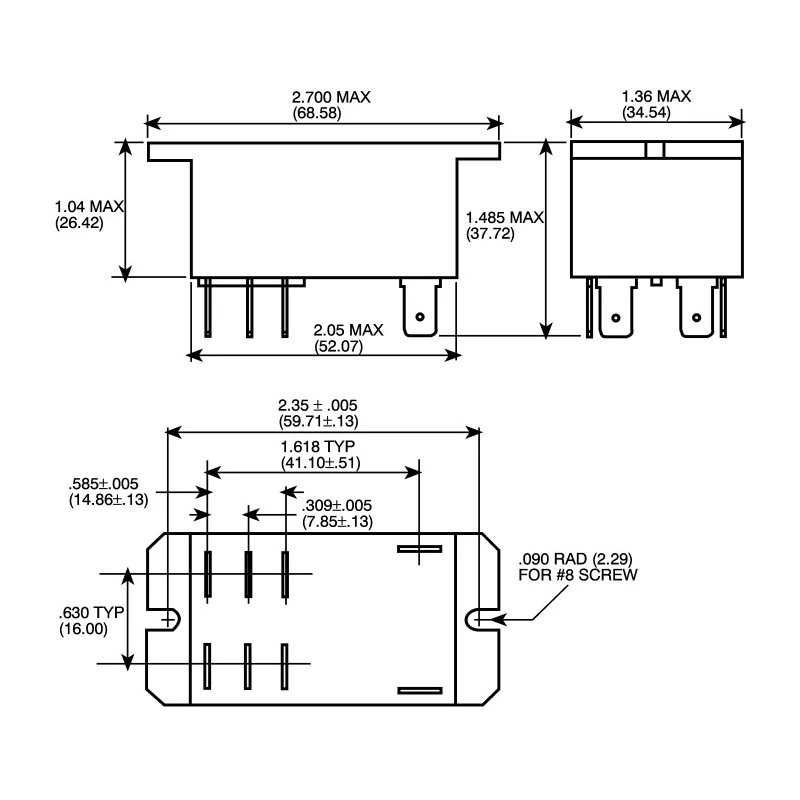

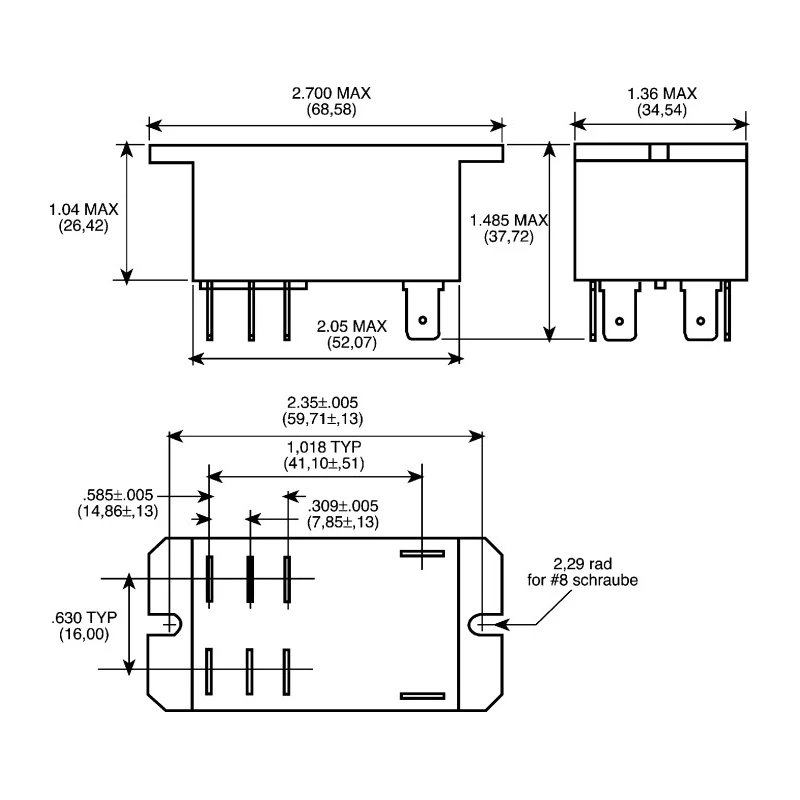

- Compact dimensions include 68.6 mm length, 38 mm height, and 34.5 mm width.
- Utilizes quick connect terminal type to enable easy installation.
- Complies with RoHS standards ensuring environmental safety.
- Ideal for controlling compressor loads up to 3.5 tons with 25.3 FLA and 110 LRA ratings.
Product Description
TE Connectivity presents the T92P7A22-240 6-1393211-2 Power Relay, a robust industrial component engineered for high power electrical control applications. This DPST configuration relay is actuated with a 240V AC coil and supports a switching current of 30A, making it suitable for demanding environments including industrial, automation, HVAC, and manufacturing processes.
Its coil resistance of 3.8 kΩ ensures efficient coil operation, while the silver alloy contacts provide excellent conductivity and resistance to wear over extended use. The relay is designed for use in a wide temperature range from -55°C up to 65°C, allowing reliable performance under harsh climatic conditions.
This model supports switching DC voltages up to 28V and AC voltages up to 600V, catering to various electrical control circuit requirements. The quick connect terminal design allows for straightforward and secure mounting within electrical panels or control systems.
With compact dimensions measuring 68.6 mm in length, 38 mm in height, and 34.5 mm in width, the relay fits seamlessly in constrained spaces without compromising performance. It meets environmental compliance standards with RoHS certification and is manufactured in China.
Power relays like the TE Connectivity T92 series are commonly used in industrial automation, HVAC compressors, manufacturing machinery control circuits, and other electrical switching systems where reliable high current load handling is necessary.
This relay features a coil resistance of 3.8 kΩ. Operating temperature ranges from -55°C to 65°C. Silver alloy contact material ensures longevity and electrical efficiency. Designed for switching AC voltages up to 600V and DC voltages up to 28V.
Quick connect terminals for easy installation and maintenance. Compact dimensions of 68.6 mm (L) × 34.5 mm (W) × 38 mm (H). RoHS compliant for environmental safety. Suitable for controlling compressor loads 3.5 tons, 25.3 FLA, and 110 LRA.
Explore EnvMart's wide range of Power Relays and electrical components designed for industrial and commercial applications to ensure safety, reliability, and efficient electrical control solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The relay is rated for a coil voltage of 240V AC.
It can handle a maximum switching current of 30A.
This relay measures 68.6 mm in length, 34.5 mm in width, and 38 mm in height.
It is constructed with silver alloy contacts for high conductivity and durability.
The relay operates reliably over a temperature range from -55°C to 65°C.
It is designed to switch AC voltages up to 600V and DC voltages up to 28V.
It utilizes a quick connect terminal type for easy installation.
The coil resistance is 3.8 kΩ, ensuring efficient operation.
Yes, it complies with RoHS standards for environmental safety.
This model is suitable for controlling compressor loads up to 3.5 tons, with 25.3 FLA and 110 LRA ratings.

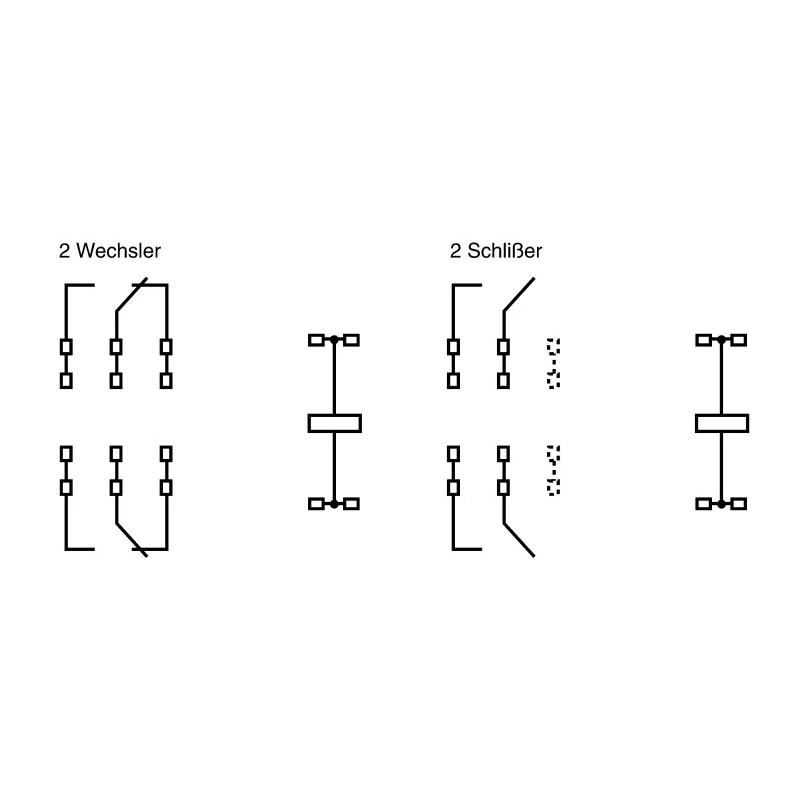

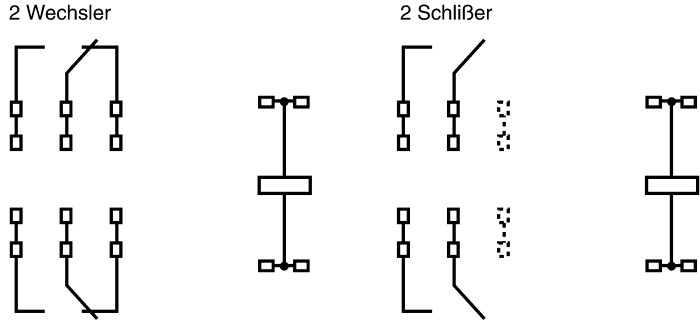

The relay features a DPST (Double Pole Single Throw) contact configuration.
The relay is manufactured in China.
