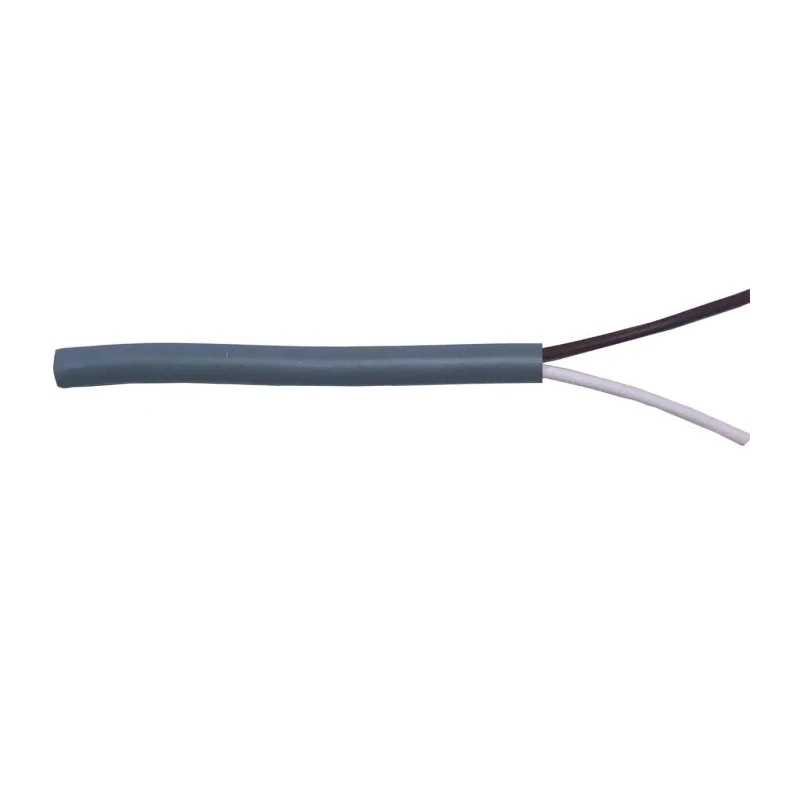

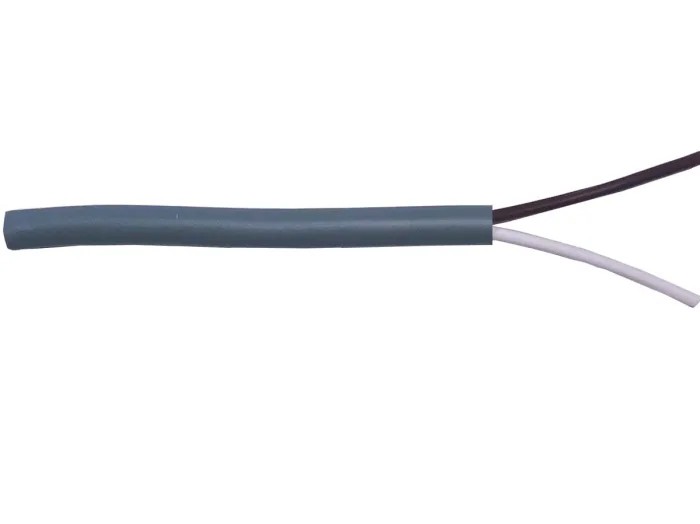

RS PRO Industrial Data Cable 2 Cores 0.34 mm² 100 m Grey Polyvinyl Chloride Sheath 195-9506
Specifications
| Country of Origin | China |
|---|---|
| Voltage | 300V |
| Brand | RS PRO |
| Operating Temperature | -5 °C to +80 °C |
| CROSS SECTIONAL AREA | 0.34 mm² |
| Model | 195-9506 |
| Cable Length | 100m |
| Outside diameter | 4.7mm |
| Maximum Operating Temperature | 70°C |
| Number Of Cores | 2 |
| Conductor Material | Copper |
| Bend Radius | 37.6 (outer diameter mm x 8) |
| Minimum Operating Temperature | -20°C |
| Jacket Material | Polyvinyl Chloride |
| Operating Voltage | 250 V |
| Standards/Approvals | CE, EAC, EN |
| Jacket Colour | Grey |
| Fire Behaviour | Flame Retardant |
| Conductor Type | Stranded |
| Conductor resistance (20℃ Ω/km) | 55 max |
Key Features
- The cable features 2 stranded copper cores with a cross-sectional area of 0.34 mm².
- It has a grey PVC protective sheath ensuring flame retardant properties.
- The cable length spans 100 meters with an overall diameter of 4.7 mm.
- Operating temperature range is -5 °C to +80 °C suitable for varied industrial use.
- The cable offers good insulation and low conductor resistance of 55 Ω/km max at 20 °C.
- Bend radius specification ensures flexible installation with 37.6 mm minimum bending diameter.
- Standards compliance includes CE, EAC, and EN certifications.
- Ideal for electrical, industrial, and automation applications requiring neat multicore wiring.
Product Description
RS PRO 195-9506 Data Cable 2 Cores 0.34 mm² 100 m Grey Sheath Polyvinyl Chloride is a high-quality industrial multicore cable designed for electrical and automation applications. It features two stranded 7/0.25 mm copper cores enclosed in a durable, flame retardant grey PVC sheath offering excellent insulation and mechanical protection.
The cable is optimized for flexible and reliable installations in compact or visible setups, reducing tripping hazards and improving system organization. Its overall diameter is 4.7 mm, making it easy to route in tight spaces.
Operating temperature ranges from -5 °C to +80 °C with maximum voltage ratings of 300 V ensure safety and performance across diverse industrial and manufacturing environments. Conductor resistance is kept low at 55 Ω/km at 20 °C, enhancing electrical efficiency.
This RS PRO cable complies with international standards including CE, EAC, and EN, confirming its suitability for industrial power, control, and signal wiring. The polyvinyl chloride sheath offers flame retardant properties, adding safety in operation.
The cable contains 2 stranded copper conductors with 0.34 mm² cross section. The grey PVC jacket provides flame retardability and mechanical protection. 100 meter cable length supports extensive wiring requirements. Overall cable diameter of 4.7 mm supports flexible installation in tight spaces.
Rated for 250 V operating voltage and 300 V maximum voltage. Operating temperature from -5 °C to +80 °C supports varied applications. Bend radius of 37.6 mm facilitates easy routing and installation. Compliant with CE, EAC, and EN industry standards.
Designed for industrial, electrical automation, machine control, and data wiring uses.
Ideal for embedding in machine assemblies, control panels, entertainment industry wiring, conveyor systems, and other industrial environments requiring safe, flexible, and durable electrical connectivity.
RS PRO products are engineered for reliability, meeting rigorous quality controls accepted worldwide. This cable meets industrial demands for optimized installation and performance, making it a preferred choice for engineers and technicians.
Explore more RS PRO electrical wires and cables at EnvMart for consistent quality and trusted industrial solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum voltage rating for this data cable is 300V.
This model operates within a temperature range of -5 °C to +80 °C.
The cable features a cross-sectional area of 0.34 mm² for each of its two cores.
The overall diameter of the cable is 4.7 mm.
The jacket of the cable is made from polyvinyl chloride (PVC), which provides flame retardant properties.
The minimum bend radius for this cable is 37.6 mm, facilitating flexible installation.
This cable uses stranded copper conductors.
This cable complies with CE, EAC, and EN standards.
The maximum conductor resistance at 20 °C is 55 Ω/km.
The cable length is 100 meters, supporting extensive wiring requirements.
This cable is suitable for industrial, electrical automation, machine control, and data wiring applications.
The maximum operating temperature for this cable is 70 °C.
