| Country of Origin | China |
|---|---|
| Diameter | 1.7mm |
| Brand | Vishay |
| Height | 1.7mm |
| Length | 3.9mm |
| Model | 1N914TAP |
| Width | 1.7mm |
| Mount Type | Through Hole |
| Series | 1N914 |
| Maximum Operating Temperature | 175°C |
| Case | DO-204AL, molded epoxy over glass body |
| Package Type | DO-35 |
| Sub Type | Silicon Junction |
| Minimum Operating Temperature | -55°C |
| Polarity | Color band denotes cathode end |
| Terminals | Matte tin plated leads, solderable per |
| Pin Count | 2 |
| Maximum Power Dissipation Pd | 500mW |
| Diode Configuration | Single |
| Peak Non-Repetitive Forward Surge Current Ifsm | 4A |
| Maximum Forward Voltage Vf | 1V |
| Peak Reverse Recovery Time trr | 4ns |
| Maximum Forward Current If | 300mA |
| Maximum Peak Reverse Repetitive Voltage Vrrm | 75V |

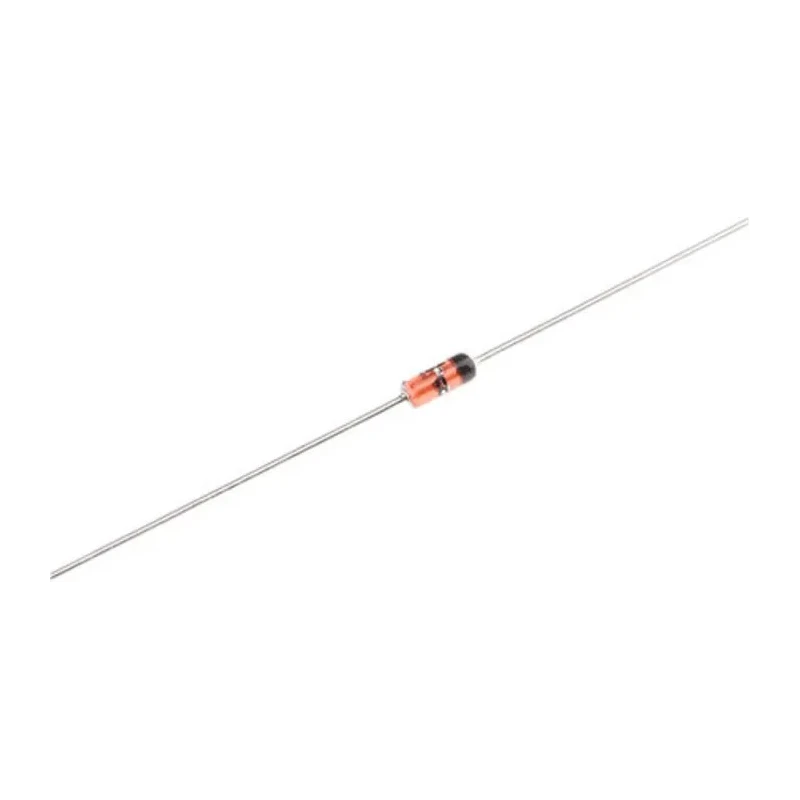

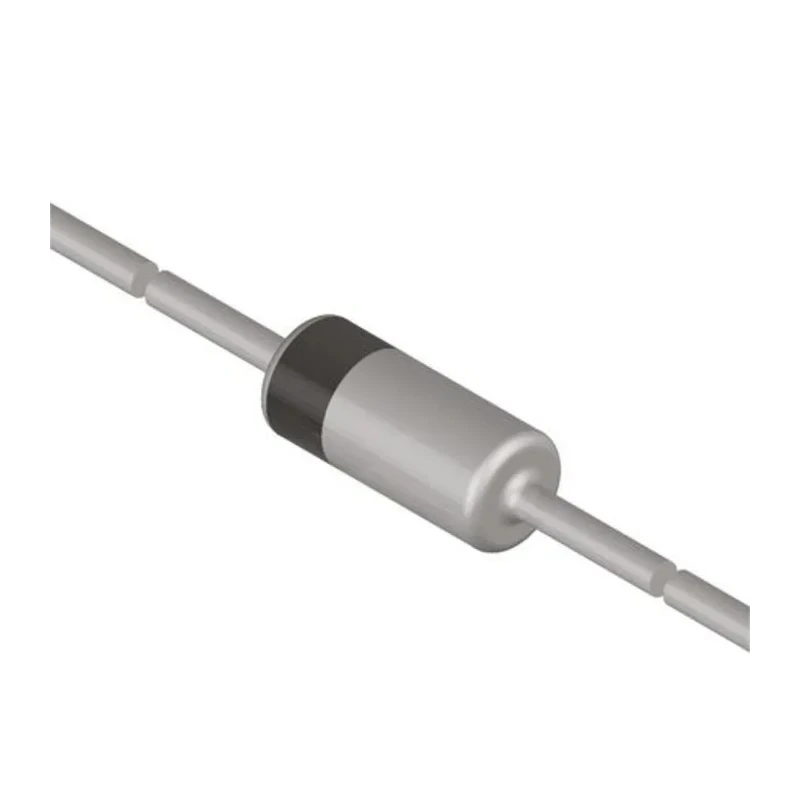

Vishay 1N914TAP silicon junction switching diode is designed for fast switching applications with a maximum forward current of 300 mA and maximum peak reverse voltage of 75 V. This diode comes in a robust DO-35 plastic package with glass passivated junction for high reliability and durability.
The device features a superectifier structure that ensures a cavity-free glass-passivated junction, resulting in low leakage current typically less than 0.2 μA and fast reverse recovery time of 4 ns. It is rated for maximum power dissipation of 500 mW and can operate reliably in temperatures ranging from -55°C to 175°C.
The diode's terminals have matte tin plating and are solderable according to industry standards, making it ideal for through hole mounting. The color band clearly marks the cathode end to ensure correct polarity during installation.
Typical applications include high voltage rectification in G2 grid CRT and television circuits, snubber circuits for camera flash units, and other switching diode roles in electronic circuits.
High reliability superectifier glass-passivated junction. Cavity-free design for enhanced performance. Fast switching with 4 ns recovery time. Low leakage current under typical conditions. High forward surge capability of up to 4 A.
Epoxy molded DO-35 package offering mechanical protection. Wide temperature range for versatile applications. Matte tin plated, solderable leads for easy installation. Clear cathode marking with color band.
This product is well suited to industrial, consumer electronics, and laboratory environments where precision switching diodes are required. The 1N914TAP is a reliable component in Vishay’s 1N914 series and complies with RoHS standards ensuring environmentally friendly production.
