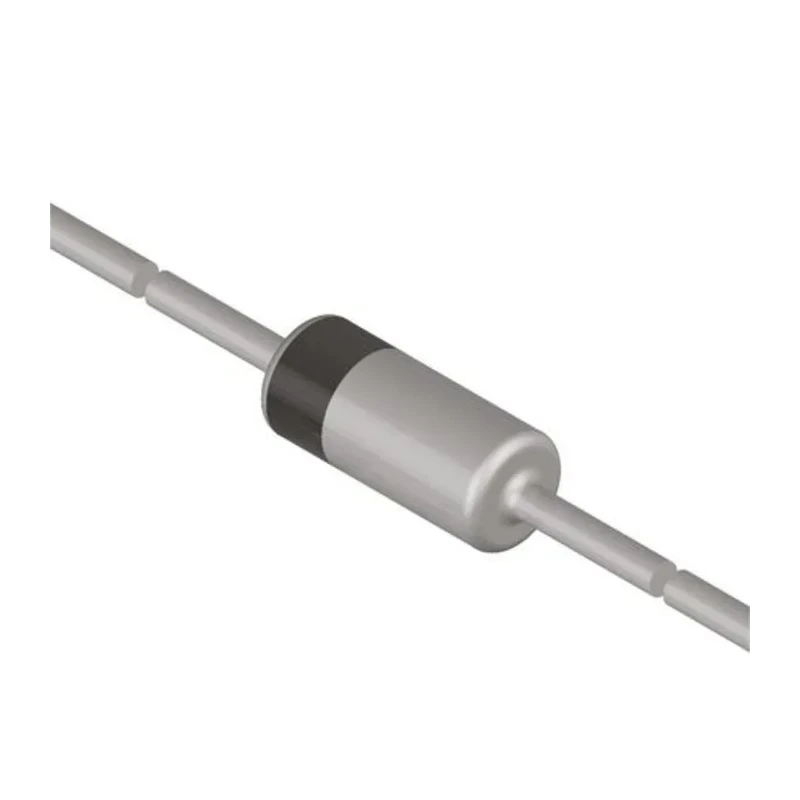

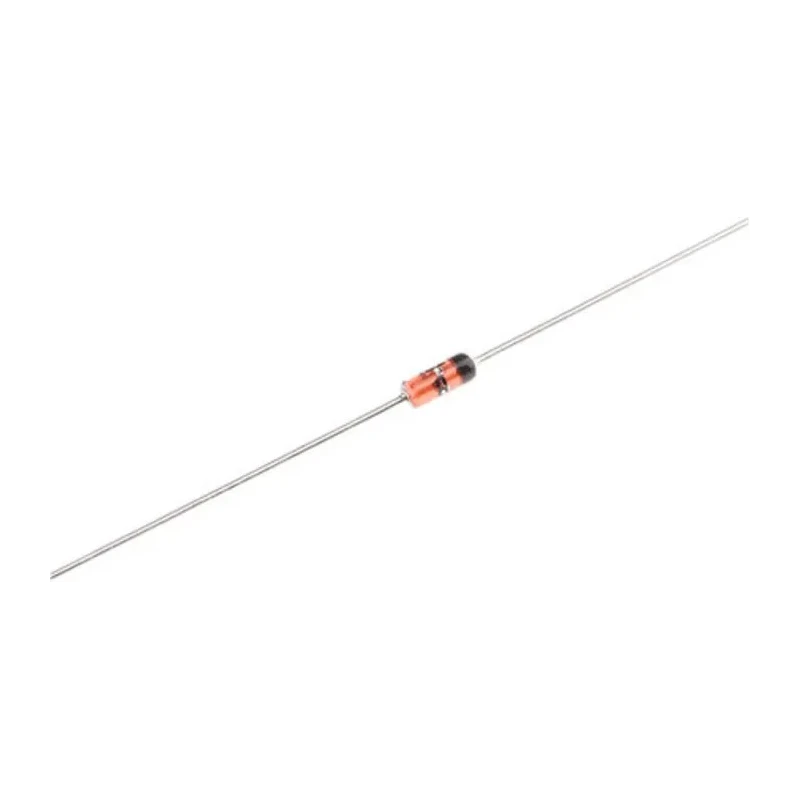

Vishay Silicon Junction Switching Diode, Single, 300 mA, 2-Pin DO-35, 75 V 1N914TAP

Vishay 1N914TAP is a single diode silicon junction switching diode designed for fast switching and high reliability in industrial and electronic applications. It features a DO-35 through-hole package with 2 pins, making it suitable for PCB mounting and integration in discrete semiconductor circuits.

This diode supports a maximum forward current of 300 mA and a peak repetitive reverse voltage of 75 V, making it ideal for use in power supply rectification, snubber circuits, and high voltage rectification of G2 grid CRT and TV applications. Its glass passivated junction and molded epoxy glass body provide long-term stability and high durability. The typical leakage current is less than 0.2 μA, contributing to higher efficiency in sensitive circuits.

The diode can withstand a maximum power dissipation of 500 mW and peak forward surge current of 4 A, ensuring robustness in transient conditions. The peak reverse recovery time is 4 nanoseconds, supporting use in high-speed switching.

The operating temperature range is extensive, from -55°C to 175°C, enabling use in harsh industrial environments. The product has matte tin plated leads solderable per industry standards J-STD-002 and JESD 22-B102. The cathode is marked by a color band, facilitating correct polarity recognition during assembly.

Typical applications include switching circuits, snubber circuits of camera flashes, and high voltage rectification in television and CRT grid applications. The component maintains compliance with RoHS regulations and is manufactured in China with commercial grade quality.

Single diode configuration for fast switching efficiency. Through hole mounting with DO-35 epoxy molded glass package. High temperature and power dissipation ratings for industrial robustness. Low leakage and fast recovery characteristics for improved circuit performance.

Standard package dimensions with a length of 3.9 mm and diameter of 1.7 mm.

This Vishay diode is an essential component in semiconductor discrete devices suitable for electronics manufacturing, power conversion, and various industrial electronics uses. EnvMart provides comprehensive support for sourcing this diode as part of semiconductor and switching diode category browsing.
