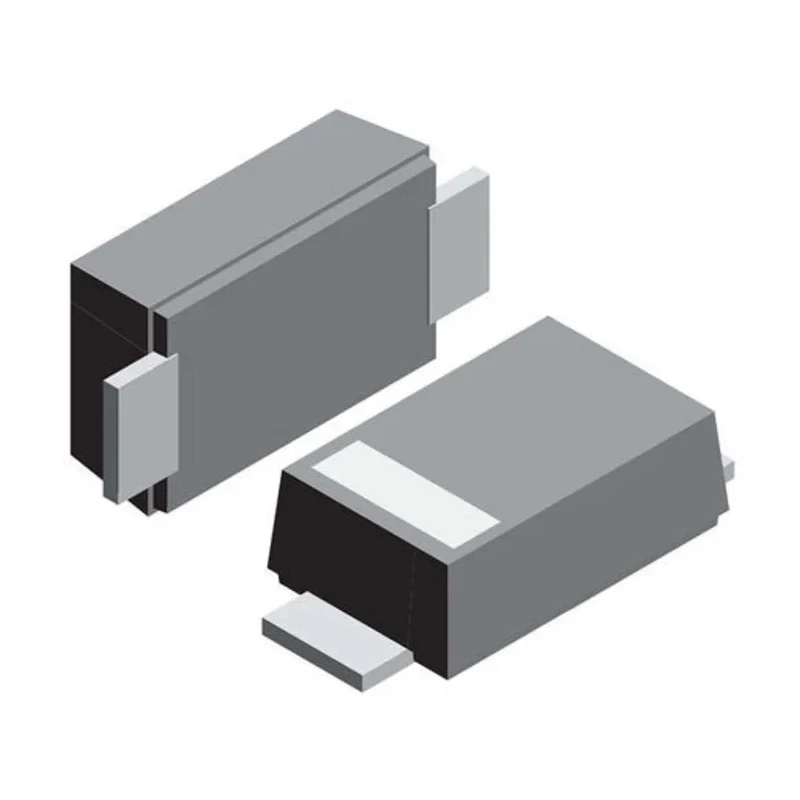

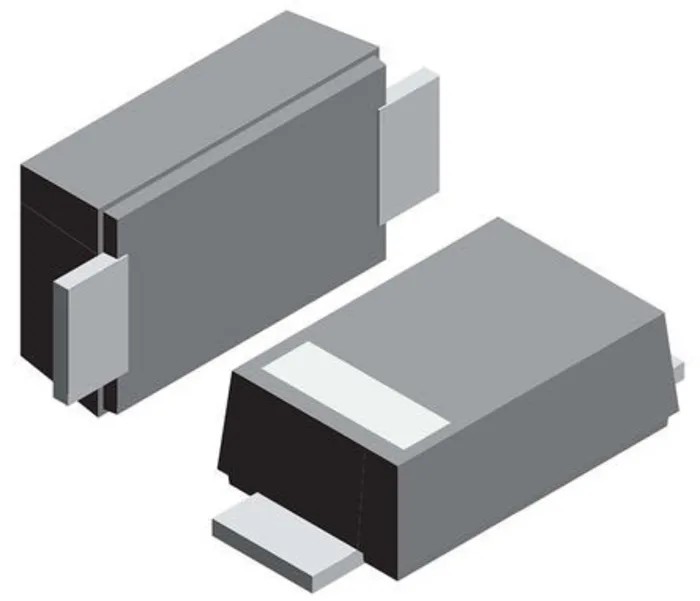

Vishay High Performance Schottky Diode 40 V 1 A Surface Mount DO-219AB SS1F4-M3/H
Specifications
| Country of Origin | China |
|---|---|
| Brand | Vishay |
| Height | 1.08mm |
| Length | 2.9mm |
| Model | SS1F4-M3/H |
| Width | 1.9mm |
| Mount Type | Surface |
| Series | SS1F4 |
| Maximum Operating Temperature | 175°C |
| Package Type | DO-219AB |
| Minimum Operating Temperature | -55°C |
| Pin Count | 2 |
| Maximum Continuous Forward Current If | 1A |
| Peak Reverse Repetitive Voltage Vrrm | 40V |
| Diode Configuration | Single |
| Rectifier Type | Schottky |
| Peak Reverse Current Ir | 150μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 40A |
| Maximum Forward Voltage Vf | 520mV |
Key Features
- Featuring a low forward voltage drop of 520 mV for efficient power usage.
- Capable of handling peak non-repetitive forward surge currents up to 40 A.
- Wide operating temperature range from -55°C to 175°C enabling robust performance.
- Compact dimensions of 2.9 mm length, 1.9 mm width, and 1.08 mm height for space-saving applications.
- Extremely fast switching times due to Schottky rectifier technology.
- Designed for surface mount technology facilitating automated PCB assembly.
- Peak reverse current limited to 150 μA ensuring minimal leakage.
- No automotive certification; suitable for general industrial and electronic applications.
Product Description
Vishay SS1F4-M3/H is a high-performance Schottky diode designed for discrete semiconductor applications requiring fast switching capabilities, low forward voltage drops, and efficient power management. This diode is housed in a compact DO-219AB package optimized for surface mount technology, facilitating integration into modern PCB manufacturing processes.
Operating with a maximum continuous forward current of 1 A and a peak repetitive reverse voltage of 40 V, it is suited for electronic designs where efficient rectification with minimal loss is critical. The device withstands peak non-repetitive surge currents of up to 40 A and maintains stable operation within a wide temperature range spanning from -55°C to 175°C.
The Schottky rectifier construction ensures extremely fast switching times and improved energy efficiency, ideal for power rectification, protection circuits, and voltage clamping in power supplies, automotive electronics, industrial control systems, and consumer electronic devices.
With small dimensions of 2.9 mm length, 1.9 mm width, and 1.08 mm height, it effectively saves space on densely populated printed circuit boards while delivering reliable electrical characteristics such as a maximum forward voltage of 520 mV and a low peak reverse current leakage of 150 μA.
Low forward voltage drop of 520 mV ensures energy-efficient operation. Handles peak surge currents up to 40 A for transient conditions. Wide temperature range (-55°C to 175°C) for versatile applications. Compact DO-219AB surface mount package supports high-density PCB designs.
Fast switching characteristics reduce power losses and electromagnetic interference. Single diode configuration with 2 pins suitable for straightforward circuit integration. Ideal for use in industrial electronics, power supply rectifiers, signal modulation, and other semiconductor device applications requiring quick recovery and low leakage currents.
Explore more Vishay semiconductor products and related Schottky diodes on EnvMart to find compatible components for your design projects and enhance circuit performance.
Explore more products in our Schottky Diodes & Rectifiers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current of this model is 1 A.
It has a peak reverse repetitive voltage rating of 40 V.
This diode has dimensions of 2.9 mm in length, 1.9 mm in width, and 1.08 mm in height.
The operating temperature range is from -55°C to 175°C.
The maximum forward voltage drop is 520 mV.
It can handle peak non-repetitive forward surge currents up to 40 A.
It is housed in a DO-219AB package, which is optimized for surface mount technology.
The peak reverse current is limited to 150 μA.
This model has a pin count of 2.
This is a Schottky rectifier type diode.
It is suitable for general industrial and electronic applications, including power supply rectifiers and protection circuits.
The fast switching characteristics reduce power losses and electromagnetic interference, making it efficient for various applications.
