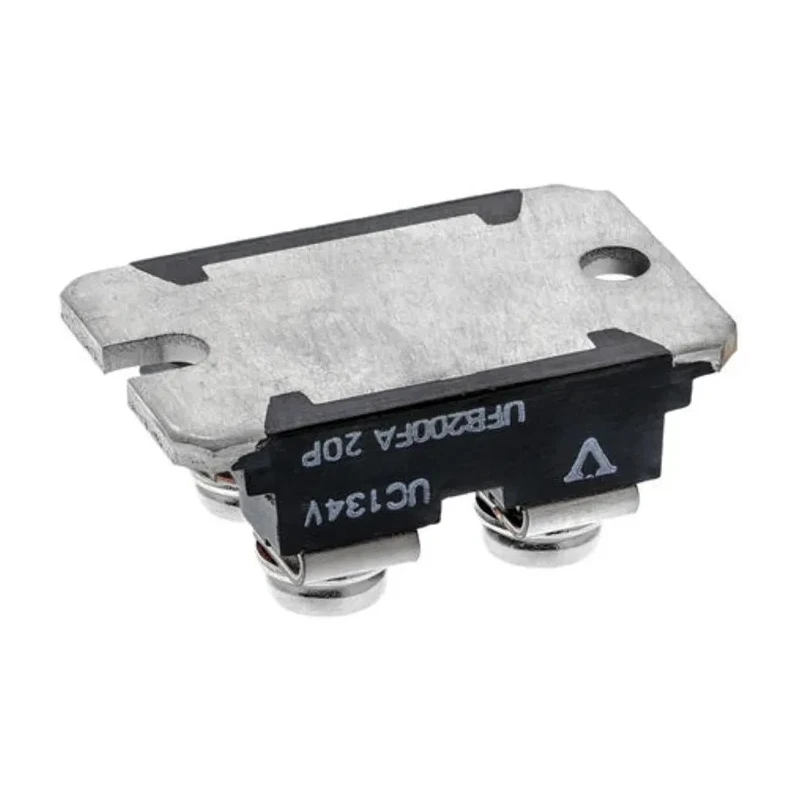

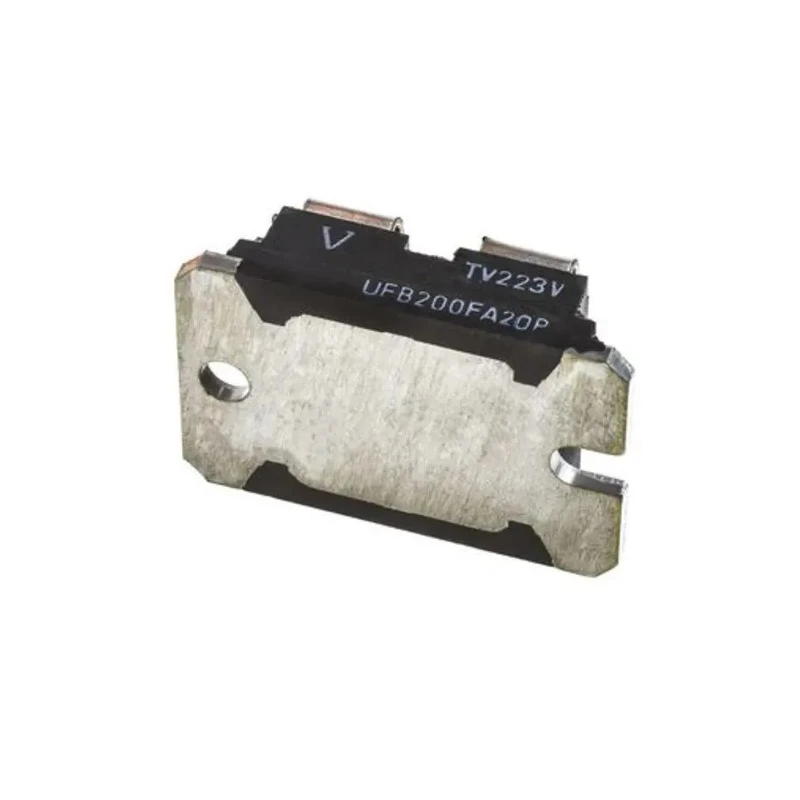

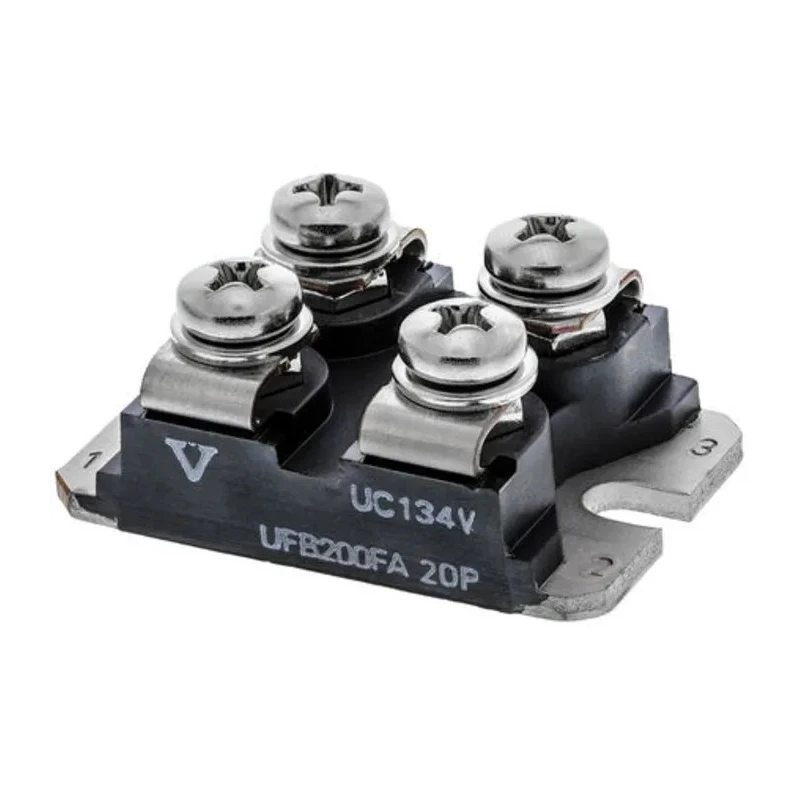

Vishay 200 V 175 A Fast Recovery Diode 4-Pin SOT-227 VS-UFB280FA20
Specifications
| Country of Origin | Philippines |
|---|---|
| Diameter | 12.3mm |
| Brand | Vishay |
| Height | 12.3mm |
| Length | 38.3mm |
| Model | VS-UFB280FA20 |
| Width | 25.7mm |
| Mount Type | Surface |
| Series | VS-UFB |
| Maximum Operating Temperature | 175°C |
| Package Type | SOT-227 |
| Minimum Operating Temperature | -55°C |
| Pin Count | 4 |
| Maximum Continuous Forward Current If | 175A |
| Peak Reverse Repetitive Voltage Vrrm | 200V |
| Diode Configuration | Single |
| Rectifier Type | Fast Recovery |
| Peak Reverse Current Ir | 2mA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 1.7kA |
| Maximum Forward Voltage Vf | 1.1V |
| Peak Reverse Recovery Time trr | 58ns |
| Vishay 200V 120A, Dual Silicon Junction Diode, 4-Pin SOT-227 VS-UFB200FA20PBrand | Vishay |
Key Features
- Designed for fast recovery rectification applications.
- Maximum continuous forward current of 175 A.
- Peak reverse repetitive voltage rated at 200 V.
- Peak non-repetitive forward surge current of 1.7 kA.
- Maximum forward voltage drop of 1.1 V ensures energy efficiency.
- Peak reverse recovery time of 58 ns for high-speed switching.
- Operating temperature range from -55°C to 175°C.
- Compact dimensions suitable for PCB surface mounting.
Product Description
Vishay VS-UFB280FA20 is a high-performance fast recovery diode designed for industrial and electronic applications requiring efficient rectification.
This semiconductor diode features a maximum continuous forward current rating of 175 A and a peak reverse repetitive voltage of 200 V, making it suitable for demanding power circuits.
Housed in a 4-pin SOT-227 surface-mount package, the diode exhibits a low forward voltage drop of 1.1 V, enhancing overall power efficiency in operation. With a fast peak reverse recovery time of 58 ns, it supports rapid switching applications in power electronics, industrial machinery, and automotive electronics.
The device operates reliably in a wide temperature range from -55°C up to 175°C, ensuring stable performance under harsh environmental conditions. Its compact size, including dimensions of approximately 38.3 mm length, 25.7 mm width, and 12.3 mm height, facilitates easy integration on printed circuit boards.
Designed for fast recovery rectification applications. Maximum continuous forward current of 175 A. Peak reverse repetitive voltage of 200 V. Peak non-repetitive forward surge current of 1.7 kA. Maximum forward voltage of 1.1 V ensures low power loss.
Peak reverse recovery time is 58 ns for efficient switching. Wide operating temperature from -55°C to 175°C. Compact 4-pin SOT-227 surface-mount package. Robust construction suitable for industrial use. Manufactured in the Philippines.
This Vishay fast recovery diode is ideal for power supply circuits, industrial rectification, motor drives, and other applications requiring rapid diode switching and high current capacity.
Explore more Vishay semiconductor products in the Schottky Diodes & Rectifiers category at EnvMart for your electronic and industrial component needs.
Explore more products in our Schottky Diodes & Rectifiers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current of this diode is 175 A.
The peak reverse repetitive voltage rating is 200 V.
The peak non-repetitive forward surge current is rated at 1.7 kA.
The dimensions of the SOT-227 package are approximately 38.3 mm in length, 25.7 mm in width, and 12.3 mm in height.
The peak reverse recovery time is 58 ns, which supports high-speed switching applications.
The operating temperature range is from -55°C to 175°C.
The maximum forward voltage drop is 1.1 V, which enhances energy efficiency during operation.
This diode is designed for surface mounting in a compact SOT-227 package.
This diode has a single diode configuration.
This diode is manufactured in the Philippines.
This fast recovery diode is suitable for power supply circuits, industrial rectification, motor drives, and other applications requiring rapid switching and high current capacity.
This diode belongs to the VS-UFB series.
