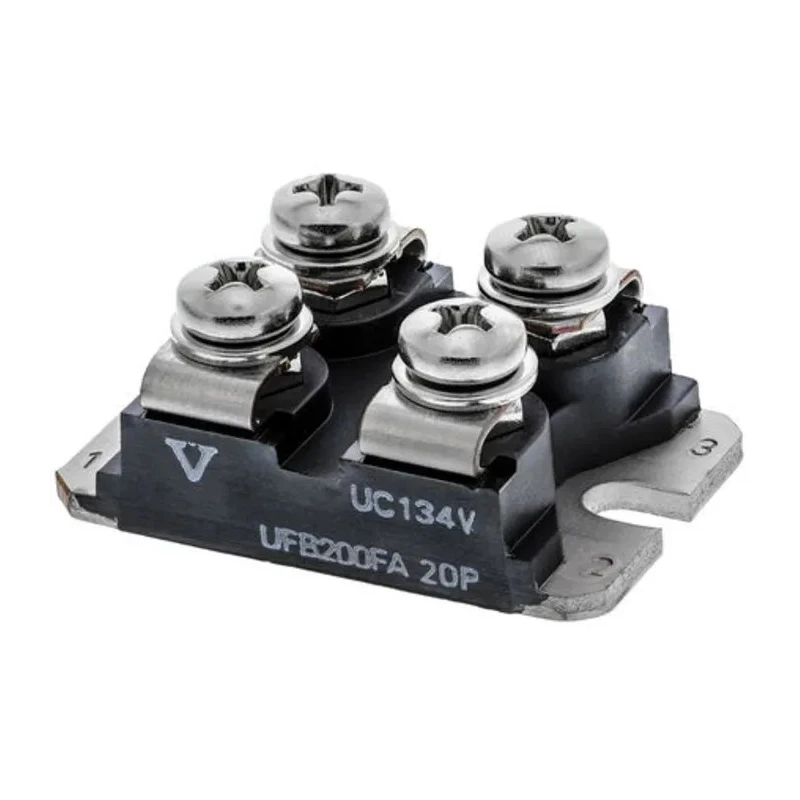

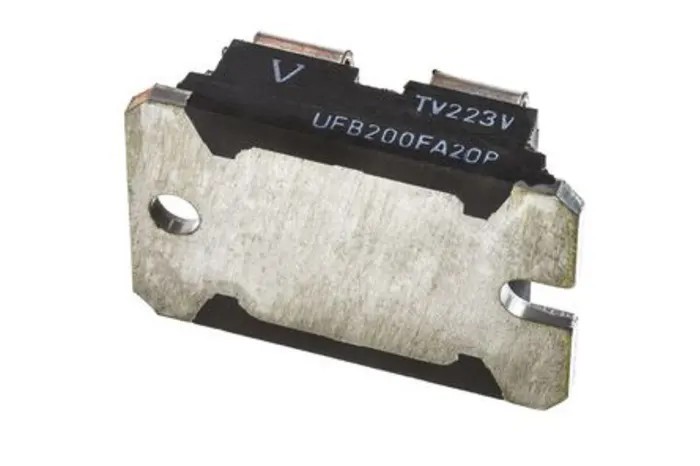

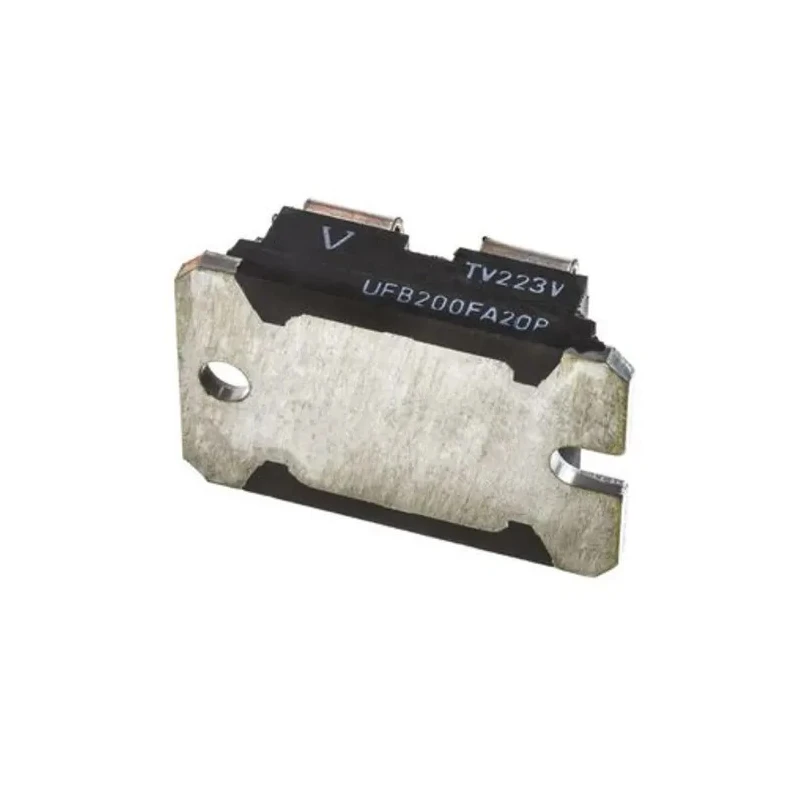

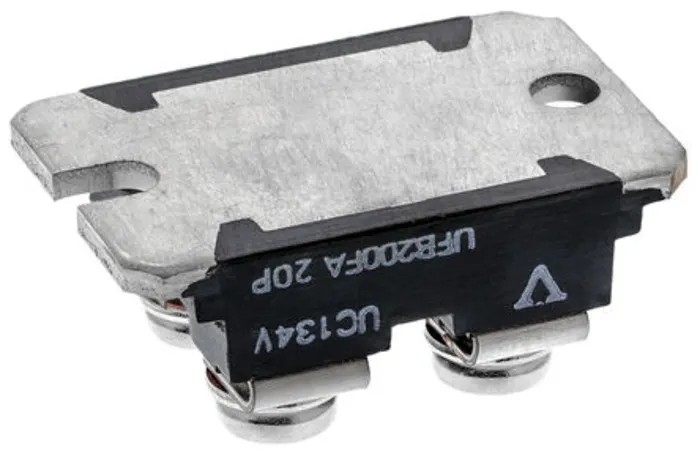

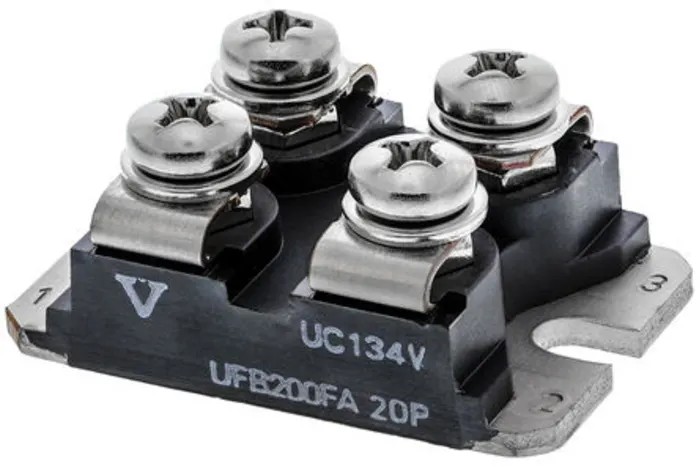

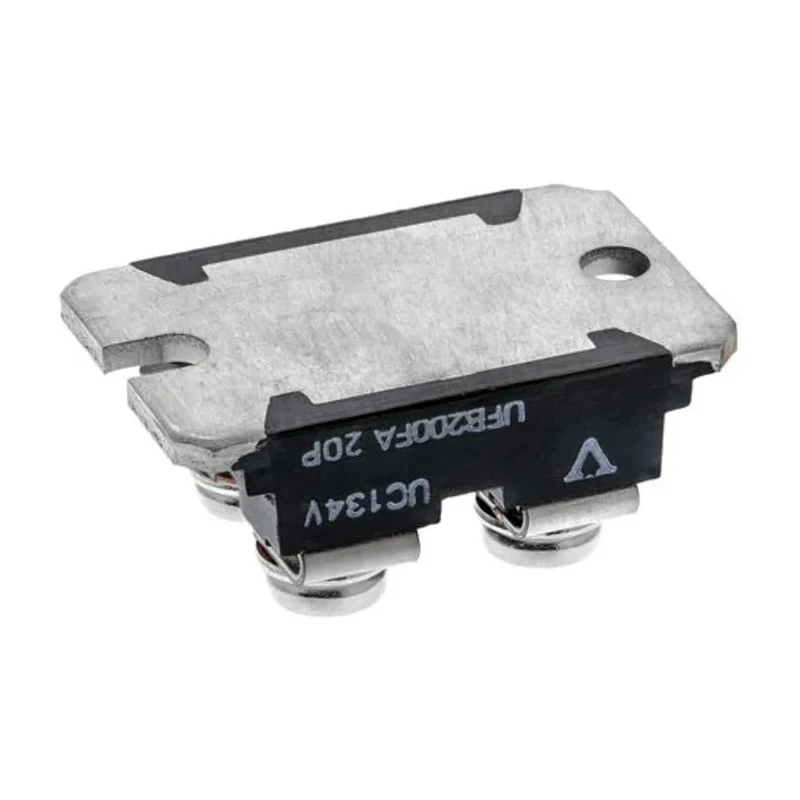

Vishay 200 V 175 A Fast Recovery Diode Single Configuration 4-Pin SOT-227 VS-UFB280FA20
Specifications
| Country of Origin | Philippines |
|---|---|
| Diameter | 12.3mm |
| Brand | Vishay |
| Height | 12.3mm |
| Length | 38.3mm |
| Model | VS-UFB280FA20 |
| Width | 25.7mm |
| Mount Type | Surface |
| Series | VS-UFB |
| Maximum Operating Temperature | 175°C |
| Package Type | SOT-227 |
| Minimum Operating Temperature | -55°C |
| Pin Count | 4 |
| Maximum Continuous Forward Current If | 175A |
| Peak Reverse Repetitive Voltage Vrrm | 200V |
| Diode Configuration | Single |
| Rectifier Type | Fast Recovery |
| Peak Reverse Current Ir | 2mA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 1.7kA |
| Maximum Forward Voltage Vf | 1.1V |
| Peak Reverse Recovery Time trr | 58ns |
| Vishay 200V 120A, Dual Silicon Junction Diode, 4-Pin SOT-227 VS-UFB200FA20PBrand | Vishay |
Key Features
- Fast recovery time of 58 nanoseconds for efficient switching.
- Maximum forward voltage drop of 1.1 V ensuring low conduction losses.
- Operates reliably between -55°C and 175°C temperature range.
- Designed as a single diode configuration for high current rectification.
- Peak non-repetitive forward surge current rating of 1.7 kA.
- Low peak reverse current leakage of 2 mA for minimal power loss.
- Manufactured in the Philippines ensuring quality standards.
Product Description
Vishay VS-UFB280FA20 is a high-performance fast recovery diode designed for power electronics applications requiring robust rectification capabilities. Packaged in a 4-pin SOT-227 surface mount type, this diode features a maximum continuous forward current rating of 175 A and peak reverse repetitive voltage of 200 V, making it suitable for industrial, automotive, and power conversion use cases.
The fast recovery characteristic with a reverse recovery time of 58 ns enhances switching efficiency, minimizing losses in high-frequency circuits. The diode exhibits a maximum forward voltage drop of just 1.1 V, reducing heat dissipation and improving system reliability.
Its operation temperature range from -55°C to 175°C ensures stable performance in harsh environments. The peak non-repetitive forward surge current of 1.7 kA enhances its tolerance to transient overloads.
Compact physical dimensions of 38.3 mm in length, 25.7 mm in width, and 12.3 mm in height allow for efficient PCB space utilization. The device's low peak reverse current leakage of 2 mA further contributes to its energy efficiency.
Manufactured in the Philippines, this diode meets quality expectations and is widely used in electronic components, power connectors, semiconductor devices, and other industrial sectors including manufacturing and HVAC systems.
Fast recovery time of 58 nanoseconds for efficient switching. Maximum forward voltage drop of 1.1 V ensuring low conduction losses. Wide operating temperature range from -55°C to 175°C. Robust current handling capability of 175 A continuous forward current.
Single diode configuration in a compact 4-pin SOT-227 package. Peak reverse voltage rating of 200 V for reliable operation. Low peak reverse current leakage of 2 mA for efficiency. Manufactured in the Philippines ensuring product quality.
This Vishay fast recovery diode model VS-UFB280FA20 is ideal for applications in power supplies, industrial rectifiers, electronic testing equipment, and automotive electronics. EnvMart offers this diode alongside a broad range of semiconductor devices to support industrial and commercial electrical engineering needs.
Explore more products in our Schottky Diodes & Rectifiers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current rating of this diode is 175 A.
The peak reverse repetitive voltage rating for this model is 200 V.
This diode has a fast recovery time of 58 nanoseconds.
The maximum forward voltage drop is 1.1 V, which helps in reducing conduction losses.
It operates reliably between -55°C and 175°C.
This model is designed as a single diode configuration.
The dimensions of the SOT-227 package are 38.3 mm in length, 25.7 mm in width, and 12.3 mm in height.
The peak non-repetitive forward surge current rating is 1.7 kA.
The peak reverse current leakage is 2 mA, contributing to minimal power loss.
This diode is manufactured in the Philippines.
It uses surface mounting, suitable for compact PCB designs.
This diode is suitable for applications in power supplies, industrial rectifiers, electronic testing equipment, and automotive electronics.
