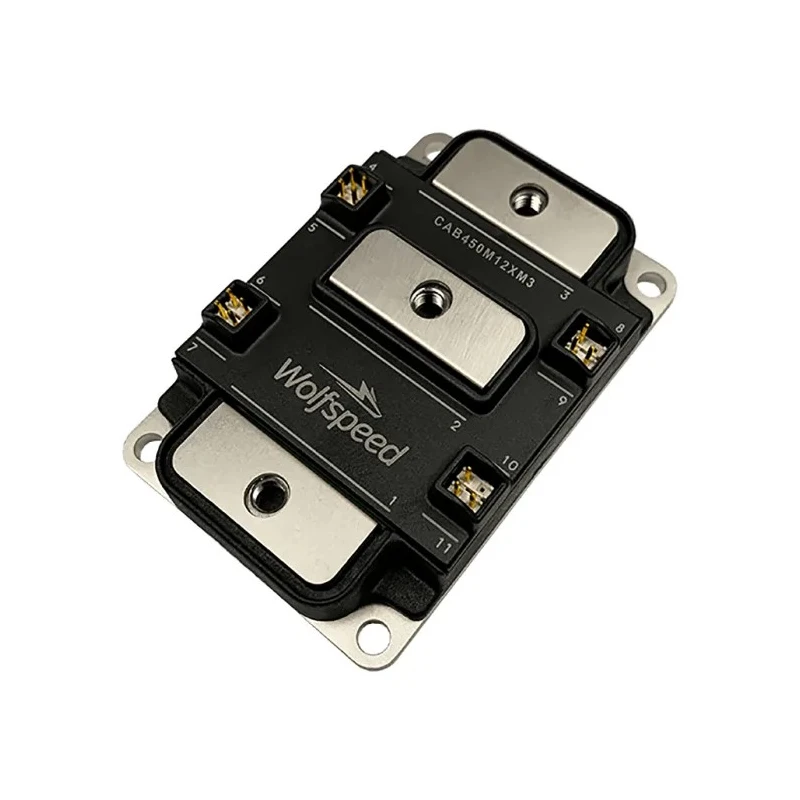

Wolfspeed Half Bridge N-Channel MOSFET 450 A, 1.2 kV CAB450M12XM3

Wolfspeed CAB450M12XM3 is a Half Bridge N-Channel MOSFET engineered for demanding power semiconductor applications. Rated for a maximum continuous drain current of 450 amperes and a maximum drain source voltage of 1.2 kilovolts, it supports high power density and high temperature operation up to 175°C. Its half bridge transistor configuration with dedicated features like a drain-Kelvin pin and low inductance design facilitates efficient power switching and conduction.

The device incorporates conduction-optimized third generation MOSFET technology enhancing its performance in motor drives, traction systems, UPS units, and electric vehicle chargers. Its screw mount type supports robust and straightforward installation. With compact dimensions of 80 mm length, 53 mm width, and 15.75 mm height, it balances size and power handling effectively.

Additional features include a forward voltage drop of 4.7 V, maximum drain source resistance of 3.7 milliohms, and a typical gate charge of 1330 nC at gate-source voltage. Constructed with a silicon nitride insulator and copper baseplate, it provides superior thermal conduction and insulation.

This MOSFET does not conform to automotive standards and is manufactured in the United States, reflecting a quality build for industrial electronic components. High power density footprint suitable for compact power modules.

Capable of sustaining high temperature operation at 175 °C. Low inductance design to reduce switching losses and improve efficiency. Dedicated drain-Kelvin pin for enhanced conduction and reduced noise. Ideal for applications in motor and traction drives, UPS, and EV charging stations.

Robust construction with screw mount assembly for durability. Silicon nitride insulator combined with copper baseplate for optimal heat dissipation. Explore more Wolfspeed power semiconductor devices and electronic components at EnvMart for industrial applications.
