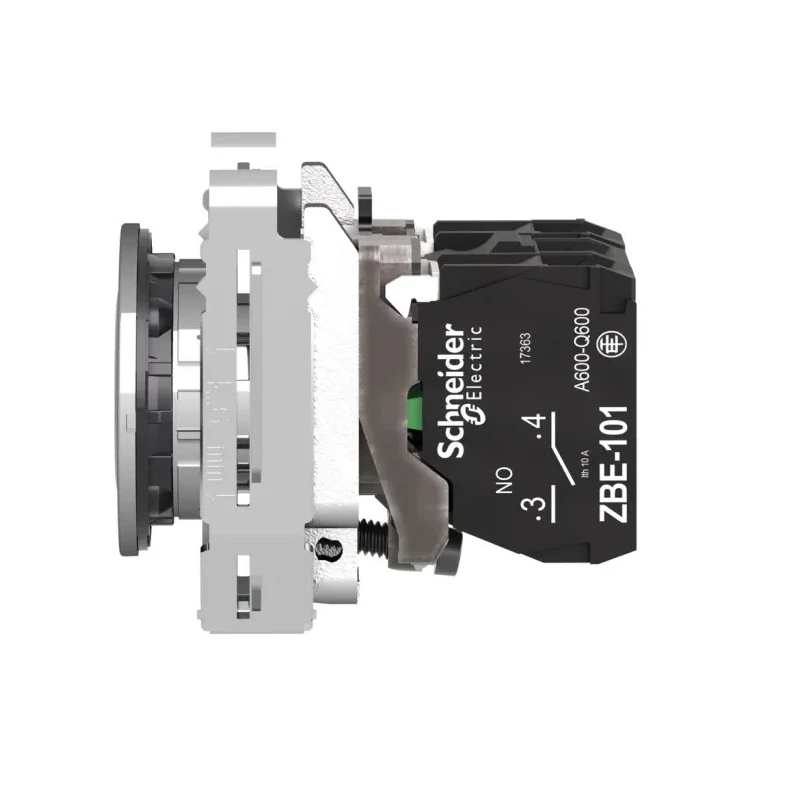

Schneider Electric Harmony XB4 Series Illuminated Push Button Switch Spring Return Panel Mount 30 mm Cutout SPDT XB4FW31M5

Schneider Electric XB4FW31M5 is part of the Harmony XB4 series, providing an illuminated push button switch designed for industrial, automation, and electrical control applications. This unit features a spring return operation and is mounted via a panel with a 30 mm cutout diameter. The switch has a single pole double throw (SPDT) contact configuration that supports 6A current and up to 600V AC/DC voltage, ideal for robust control panel circuitry.

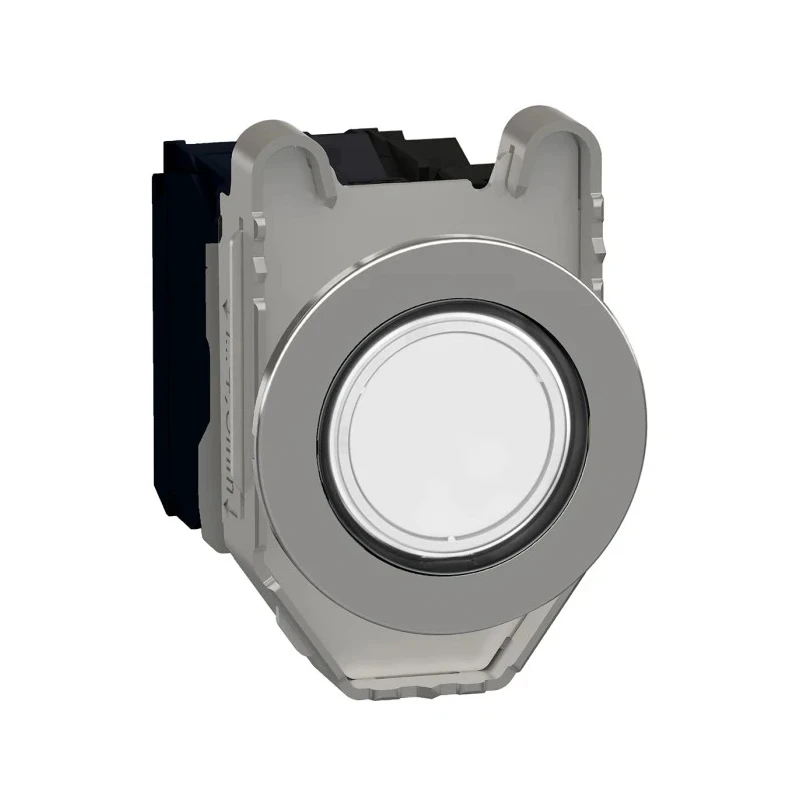

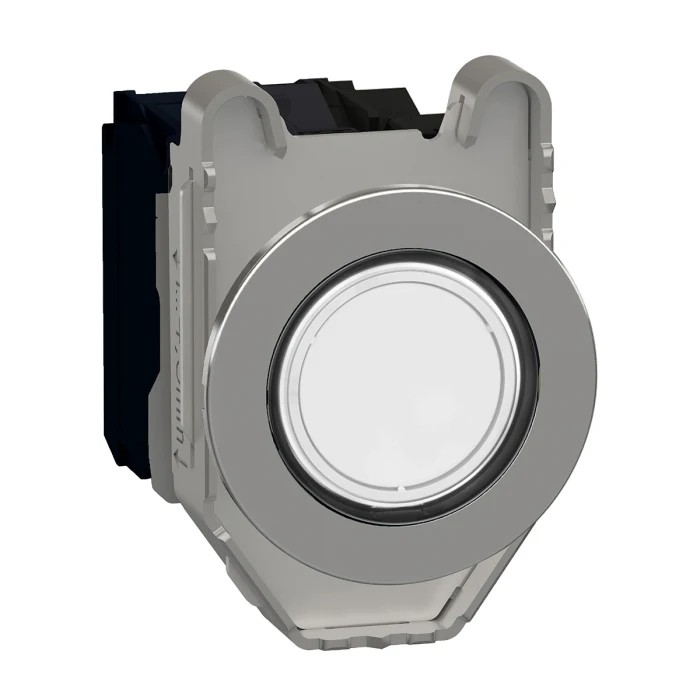

The actuator is white and round in shape, with illumination from a universal LED source providing clear visual status feedback in operation. The bezel is chromium plated, and the fixing collar is made of zamak, ensuring strength and corrosion resistance. The switch assembly measures 47 mm in height, 55 mm in length, and 36.6 mm in width with a total weight of 132 grams, making it compact and ergonomically designed for easy panel integration.

This push button switch meets rigorous certification standards including EN/IEC 60947 series, UL 508, CSA C22.2 No 14, CE, JIS C8201, and more, demonstrating compliance with safety and performance requirements globally. The switch is designed for extreme environments such as food and beverage production, automotive manufacturing, mining, water treatment, and building infrastructure applications.

Durability is assured with high ingress protection ratings (IP66, IP67, IP69, IP69K) and IK06 impact resistance, ensuring protection against dust, water, and mechanical shocks. It offers a variety of connection types including screw clamp, Faston connector, and printed circuit board, facilitating flexible installation options. The switch's spring return mechanism enhances operator ergonomics and reliability.

Installation is simplified with a flush mount design and cross-head screwdriver fixing. Accessories such as flush mounting kits and protective washers are available separately to customize installations. The switch is a sustainable Better World product that complies with environmental directives like RoHS, WEEE, and REACh and is repairable by the end user.

Illuminated push button with spring return operation for industrial control. Panel mount with 30 mm cutout, suitable for ergonomic integration. SPDT contact configuration rated for 6A current and 600V voltage. White LED illumination for clear operator feedback.

Robust construction with chromium plated bezel and zamak collar. Certified to international standards including EN/IEC, UL, CSA, CE, and JIS. IP66, 67, 69, 69K ingress protection and IK06 impact resistance for harsh environments.

Flexible connections including screw clamp and PCB options. Applications in food and beverage, automotive, mining, water treatment, and infrastructure. Better World sustainable product compliant with RoHS, WEEE, and REACh.
