Schneider Electric Harmony Series Illuminated Push Button Switch, Spring Return, Panel Mount, 30 mm Cutout, SPDT XB5FW36B5

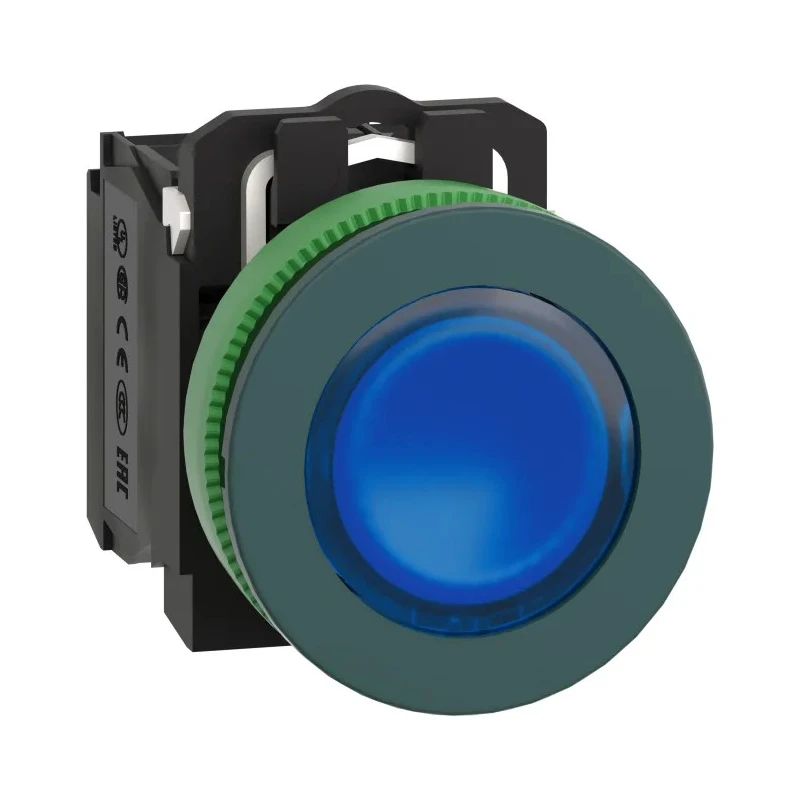

Schneider Electric XB5FW36B5 is an illuminated push button switch from the Harmony Series, featuring spring return operation and designed for panel mounting with a 30 mm cutout. This switch provides reliable performance with a round blue actuator and a universal blue LED for illumination, making it ideal for identifying switch status in control panels.

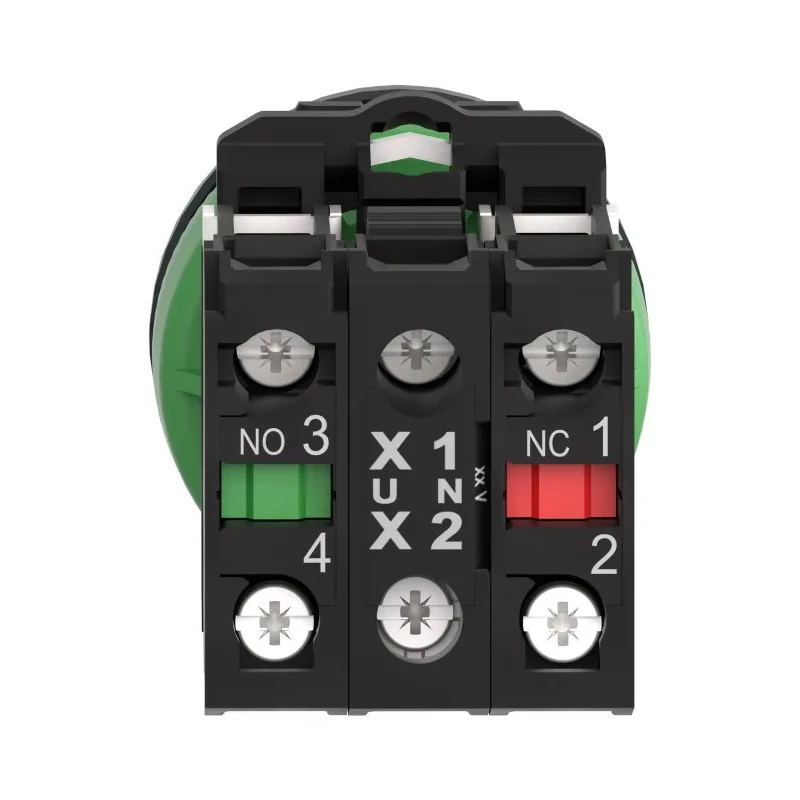

The contact configuration is SPDT, offering one normally open (NO) and one normally closed (NC) slow break contact, suitable for various control circuit applications. The switch operation uses a spring return mechanism, ensuring the actuator returns to its default position after being pressed.

This push button is rated for operation in harsh industrial environments, withstanding temperature ranges from -40°C up to 70°C. It supports contact currents up to 6 amperes and can handle both 600V AC and DC voltages, making it versatile across numerous electrical control systems.

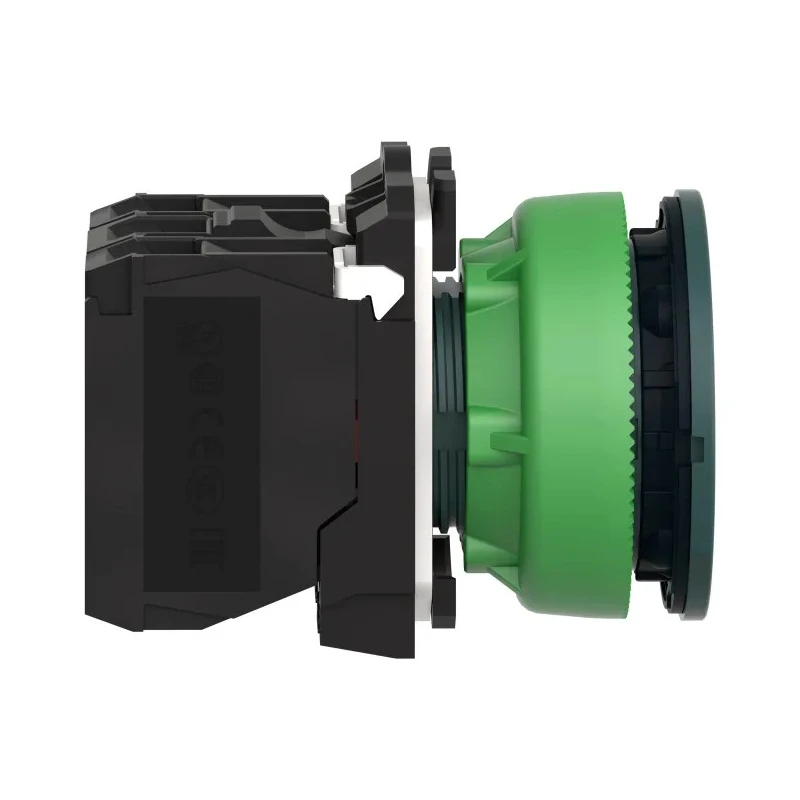

The screw clamp terminal design facilitates secure and vibration-resistant wiring, enhancing the safety and longevity of installations. The switch body is constructed with a flush mount plastic design for improved ergonomics and aesthetic appeal. Antimicrobial properties add hygienic value for sensitive environments.

With protection ratings of IP66, IP67, IP69, and IK03, the XB5FW36B5 provides excellent resistance against dust, water ingress, and mechanical shocks, satisfying the rigorous demands of industries such as manufacturing, food and beverage processing, marine applications, and building infrastructure projects.

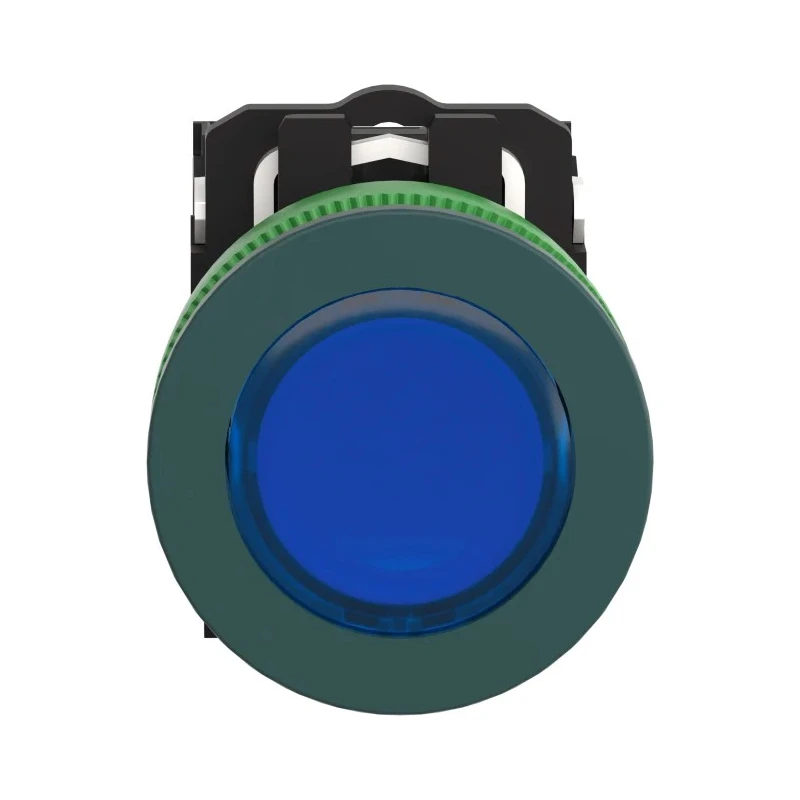

Round blue illuminated actuator with spring return operation. SPDT contact configuration with 1 NO and 1 NC slow break contacts. Screw clamp terminals for secure connections. Wide operating temperature range from -40°C to 70°C.

Rated for 6A contact current at 600V AC/DC. Flush mount plastic construction with antimicrobial characteristics. Protection ratings IP66, IP67, IP69, IK03 for harsh environments. Compliant with EN/IEC, UL, CSA, and JIS standards.

Repairable by the end user for sustainability. Suitable for industrial, marine, food processing, and building infrastructure applications.

The packaging contains one unit of the Push Button Switch. Installation is straightforward using a crosshead screwdriver to secure mounting in the panel cutout. Accessories such as plastic flush mounting kits, metal rings, and blanking plugs are available separately to customize panels efficiently.
