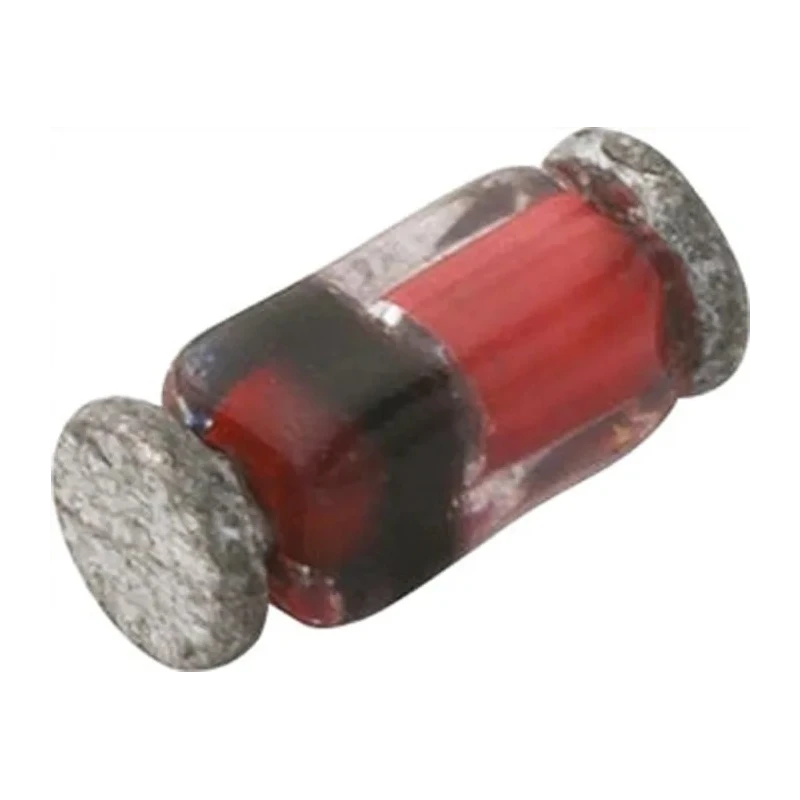

Vishay 50 V 200 mA Schottky Diode 2-Pin Surface Mount SOD-80 BAS286-GS08

Free Delivery in India | Lowest Global Shipping Charges

Vishay 50 V 200 mA Schottky Diode 2-Pin Surface Mount SOD-80 BAS286-GS08

Name: Vishay 50 V 200 mA Schottky Diode 2-Pin Surface Mount SOD-80 BAS286-GS08
Brand: Vishay
SKU: 287680
Price: 20.22 USD
Availability: InStock



Category Schottky Diodes & Rectifiers Brand Vishay Condition New

Specifications

Country of Origin	China
Diameter	2.5mm
Brand	Vishay
Height	1.6mm
Length	3.7mm
Model	BAS286-GS08
Width	1.6mm
Mount Type	Surface
Series	BAS286
Maximum Operating Temperature	125°C
Package Type	SOD-80
Minimum Operating Temperature	65°C
Standards/Approvals	AEC-Q101, RoHS
Pin Count	2
Automotive Standard	AEC-Q101
Maximum Continuous Forward Current If	200mA
Peak Reverse Repetitive Voltage Vrrm	50V
Diode Configuration	Single
Rectifier Type	Schottky
Peak Reverse Current Ir	5μA
Peak Non-Repetitive Forward Surge Current Ifsm	5A
Maximum Forward Voltage Vf	900mV

Key Features

Features a low forward voltage drop of 900 mV ensuring efficient power use.
Supports a peak non-repetitive forward surge current of 5 A for transient handling.
Operates reliably within a temperature range from -65°C to 125°C.
Compact dimensions of 3.7 mm length, 1.6 mm width, and 1.6 mm height enable surface mount installation.
Complies with automotive-grade AEC-Q101 and RoHS standards.
Designed as a small signal Schottky diode with a single diode configuration.
Has a pin count of 2 for easy integration into electronic circuits.

Product Description

Vishay BAS286-GS08 is a high-performance Schottky diode designed for surface mount applications with a SOD-80 package. It features a maximum continuous forward current of 200 mA and a peak reverse repetitive voltage of 50 V, making it suitable for low power, fast switching circuits in industrial, automotive, and consumer electronics sectors.

This diode exhibits a low forward voltage drop of 900 mV, reducing power loss and improving energy efficiency in power-sensitive designs. The device's peak surge current of 5 A enables it to handle transient current spikes without damage, enhancing circuit robustness.

Operating reliably from -65°C up to 125°C, this diode meets demanding temperature requirements of automotive and industrial environments. The compact 3.7 mm by 1.6 mm by 1.6 mm package supports dense PCB layouts and surface mount automation.

The BAS286-GS08 diode complies with AEC-Q101 automotive qualification standards and conforms to RoHS directives, assuring quality, reliability, and environmental compliance. Its single diode configuration and 2-pin count facilitate straightforward circuit integration.

Low forward voltage drop for efficient power usage. High surge current capacity improves durability. Wide operating temperature range for versatility. Compact SOD-80 surface mount package. Automotive AEC-Q101 and RoHS compliant.

Single Schottky diode configuration. 2-pin design for easy mounting. Made in China by Vishay.

This diode is ideal for use in semiconductor discrete components for power and signal rectification, switching power supplies, and automotive electronic circuits. Vishay’s reputation for semiconductor quality ensures dependable performance in critical applications.
