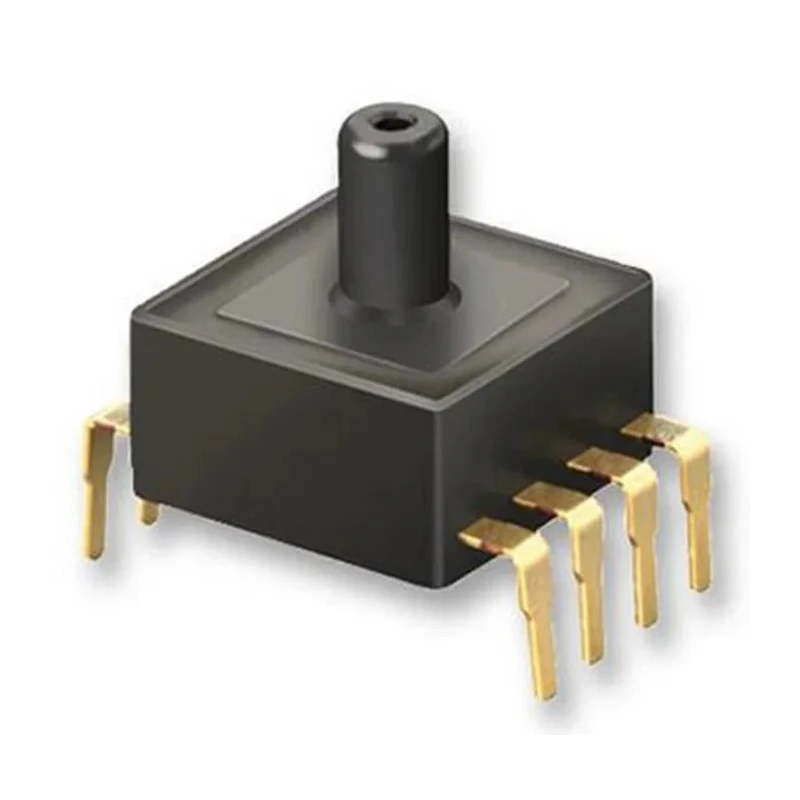

Panasonic Gauge Pressure Sensor Surface Mount PS-A Series High Accuracy 50°C Max Operating Temp ADP5121

Free Delivery in India | Lowest Global Shipping Charges

Panasonic Gauge Pressure Sensor Surface Mount PS-A Series High Accuracy 50°C Max Operating Temp ADP5121

Name: Panasonic Gauge Pressure Sensor Surface Mount PS-A Series High Accuracy 50°C Max Operating Temp ADP5121
Brand: Panasonic
SKU: 254342
Price: 20.22 USD
Availability: InStock



Category Pressure Sensor ICs Brand Panasonic Condition New

Specifications

Country of Origin	Japan
Accuracy	±2.5 %FS (Low-pressure type), ±1.25 %FS (Standard)
Brand	Panasonic
Height	6.5mm
Model	ADP5121
Sensor Type	Gauge Pressure Sensor
Mount Type	Surface
Series	PS-A
Maximum Operating Temperature	50°C
Minimum Operating Temperature	0°C
Typical Sensitivity	1.3%FS
Standards/Approvals	RoHS Compliant
Maximum Output Voltage	4.5V
Minimum Output Voltage	300mV
Minimum Operating Pressure	0kPa
Base area	7.2 x 7.2 mm

Key Features

Built-in amplifier and compensating circuit ensuring high-level precision.
Typical sensitivity of 1.3%FS for reliable sensing.
Accuracy up to ±1.25 %FS standard and ±2.5 %FS for low-pressure variants.
Compact size with a base area of 7.2 x 7.2 mm and height of 6.5 mm.
Maximum output voltage of 4.5 V with a minimum output of 300 mV.
Designed for industrial, medical, and household appliance applications.
Supports surface mounting for efficient PCB integration.
RoHS compliant ensuring environmental safety standards.

Product Description

Panasonic ADP5121 is a gauge pressure sensor designed for surface mounting, part of the PS-A series known for its high accuracy and reliability. Operating with a maximum temperature of 50°C, this sensor includes a built-in amplifier and compensating circuit to deliver precise pressure measurements with typical sensitivity of 1.3%FS.

The sensor achieves an accuracy of ±1.25 %FS for standard models and ±2.5 %FS for low-pressure types, suitable for demanding applications. Its compact base area of 7.2 x 7.2 mm and a height of 6.5 mm make it ideal for space-constrained designs.

This device offers a maximum output voltage of 4.5 V and a minimum output of 300 mV while supporting pressure measurements starting from 0 kPa. The ADP5121 sensor is RoHS compliant, confirming adherence to environmental regulations.

Common applications include industrial devices such as pressure switches and pneumatic equipment, medical instruments like blood pressure monitors, and water level detection in household appliances. The surface mount configuration facilitates easy integration onto PCBs, enhancing manufacturing efficiency.

Built-in amplifier and compensating circuit for high precision. Typical sensitivity of 1.3%FS. Accuracy of ±2.5 %FS (low-pressure) and ±1.25 %FS (standard). Compact dimensions with 7.2 x 7.2 mm base and 6.5 mm height. Max output voltage 4.5 V, minimum output 300 mV.

Operating temperature range from 0°C to 50°C. RoHS compliant for environmental safety. Suitable for industrial, medical, and household applications. Ideal for surface mounting on PCBs. Explore Panasonic pressure sensor products and other sensor ICs at EnvMart for advanced electronic component solutions.
