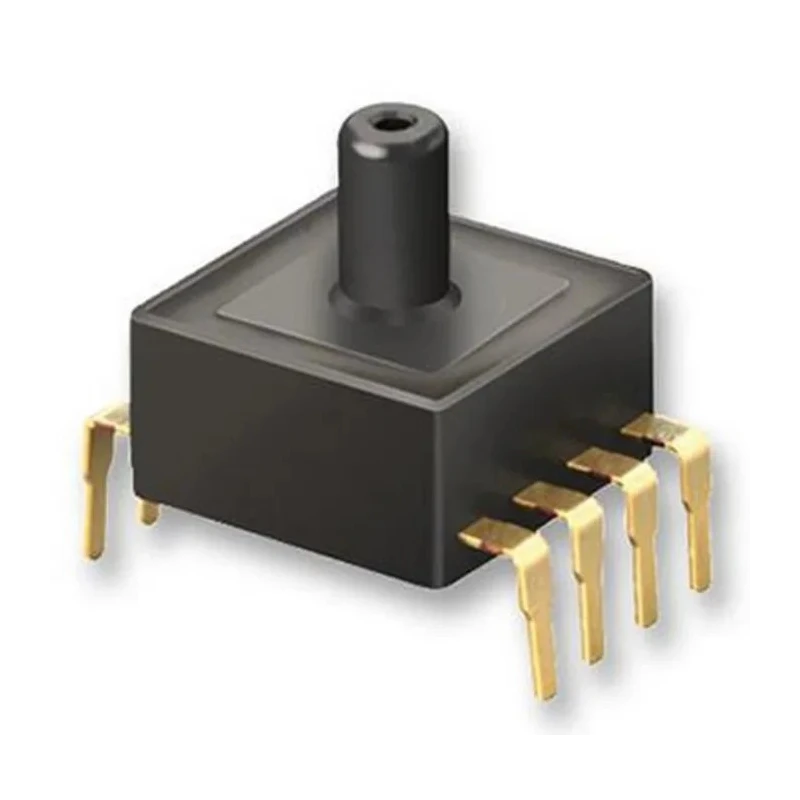

Panasonic Gauge Pressure Sensor Surface Mount Type, 1.3% FS Sensitivity, ±1.25 %FS Accuracy, 0-50°C Operating ADP5121

Free Delivery in India | Lowest Global Shipping Charges

Panasonic Gauge Pressure Sensor Surface Mount Type, 1.3% FS Sensitivity, ±1.25 %FS Accuracy, 0-50°C Operating ADP5121

Name: Panasonic Gauge Pressure Sensor Surface Mount Type, 1.3% FS Sensitivity, ±1.25 %FS Accuracy, 0-50°C Operating ADP5121
Brand: Panasonic
SKU: 254341
Price: 20.22 USD
Availability: InStock



Category Pressure Sensor ICs Brand Panasonic Condition New

Specifications

Country of Origin	Japan
Accuracy	±2.5 %FS (Low-pressure type), ±1.25 %FS (Standard)
Brand	Panasonic
Height	6.5mm
Model	ADP5121
Sensor Type	Gauge Pressure Sensor
Mount Type	Surface
Series	PS-A
Maximum Operating Temperature	50°C
Minimum Operating Temperature	0°C
Typical Sensitivity	1.3%FS
Standards/Approvals	RoHS Compliant
Maximum Output Voltage	4.5V
Minimum Output Voltage	300mV
Minimum Operating Pressure	0kPa
Base area	7.2 x 7.2 mm

Key Features

Typical sensitivity of 1.3% full scale for accurate readings.
Accuracy options include ±2.5 %FS for low-pressure and ±1.25 %FS standard variants.
Maximum operating temperature is 50°C suitable for various industrial environments.
Compact design with a base area of 7.2 x 7.2 mm and height of 6.5 mm.
Output voltage ranges from 300mV minimum to 4.5V maximum for reliable signal processing.
Surface mount type for easy PCB integration in electronic applications.
Supports minimum operating pressure of 0 kPa for gauge pressure sensing.
RoHS compliant ensuring adherence to environmental standards.

Product Description

Panasonic ADP5121 is a high-precision gauge pressure sensor featuring a surface mount type package designed for compactness and reliability in electronic systems. The sensor includes a built-in amplifier and compensating circuit to ensure stable and accurate pressure measurement with typical sensitivity of 1.3% full scale.

It offers accuracy options of ±2.5 %FS for low-pressure types and ±1.25 %FS for standard models, supporting operating temperatures from 0°C up to a maximum of 50°C.

Its small footprint of 7.2 x 7.2 mm base area and 6.5 mm height makes it ideal for integration into space-constrained industrial, medical, pneumatic, and household appliance applications.

The sensor outputs a voltage range between 300 mV minimum and 4.5 V maximum, suitable for use in interface circuits demanding reliable analog signals. It operates at a minimum pressure of 0 kPa, measuring gauge pressure accurately.

Notably, this product is RoHS compliant and manufactured in Japan, guaranteeing environmental safety and high manufacturing standards.

Typical applications include industrial pressure switches, pneumatic devices, medical blood pressure monitors, compressed air pressure measurement, air beds, and water level detection for household appliances.

Typical sensitivity of 1.3% full scale for precise pressure measurements. High reliability with built-in amplifier and compensation circuits. Compact surface mount form factor saving PCB space. Wide operating temperature range from 0°C to 50°C.

RoHS compliant meeting environmental regulations. Manufactured in Japan ensuring quality assurance. Suitable for industrial, medical, pneumatic, and household appliance applications. Output voltage range from 300 mV to 4.5 V enabling effective signal processing.

Base area of 7.2 x 7.2 mm and height of 6.5 mm for compact integration. Explore the wide range of Pressure Sensor ICs and electronic components at EnvMart for all your industrial and commercial needs.
