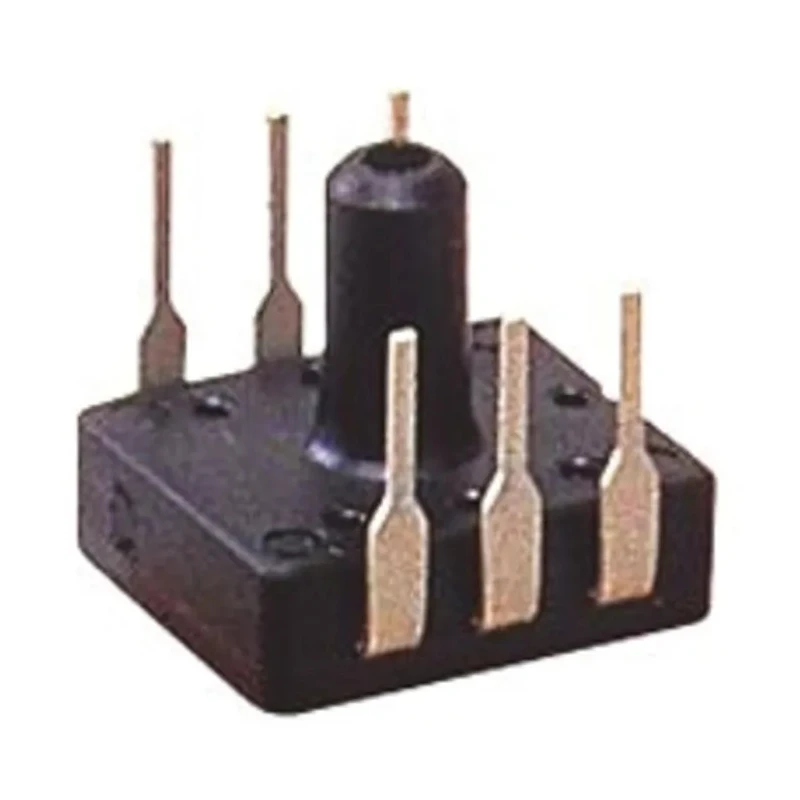

Panasonic Gauge Pressure Sensor DIP 6 Pin, Maximum Operating Pressure 980.7 kPa, Accuracy ±0.3 %, Model ADP1251
Specifications
| Country of Origin | Japan |
|---|---|
| Accuracy | ±0.3 % |
| Brand | Panasonic |
| Maximum Operating Pressure | 980.7 kPa |
| Height | 9.3mm |
| Length | 10mm |
| Model | ADP1251 |
| Sensor Type | Gauge Pressure Sensor |
| Mount Type | DIP |
| Series | P |
| Maximum Operating Temperature | 100°C |
| Port Type | NFI Pressure Inlet Direction |
| Minimum Operating Temperature | -20°C |
| Standards/Approvals | RoHS Compliant |
| Maximum Output Voltage | 65mV |
| Pin Count | 6 |
| Minimum Output Voltage | 40mV |
| Minimum Operating Pressure | 4.9kPa |
| Base area | 10 x 8.6 mm |
Key Features
- Features semiconductor strain gauge technology for linear detection characteristics.
- Maximum operating pressure of 980.7 kPa with ±0.3 % accuracy.
- Operates in temperature range from -20°C to 100°C.
- Compact base area measuring 10 x 8.6 mm with length 10 mm and height 9.3 mm.
- Port type with NFI pressure inlet direction for reliable sensing.
- RoHS compliant ensuring environmental safety standards.
- Typical applications include medical, domestic appliances, gas equipment, and industrial devices.
Product Description
Panasonic ADP1251 is a high-precision gauge pressure sensor with a DIP 6 pin mount designed for various industrial and medical applications. Utilizing semiconductor strain gauge method, this sensor delivers accurate and linear output with a maximum operating pressure rating of 980.7 kPa and an accuracy of ±0.3 %.
It is engineered to operate within a wide temperature range from -20°C to 100°C, making it suitable for diverse environments. The compact form factor features a base area of 10 x 8.6 mm, length of 10 mm, and height of 9.3 mm facilitating space-efficient integration into equipment.
Output voltage varies between a minimum of 40 mV to a maximum of 65 mV, with a port type designed for NFI pressure inlet direction. Panasonic pressure sensor ADP1251 complies with RoHS environmental standards and is made in Japan assuring quality and reliability.
Commonly deployed in electronic hemodynamometers, vacuum cleaners, microprocessor gas meters, gas leak detectors, and industrial absorption devices, it serves critical roles in medical, household, gas, and industrial sectors.
Features semiconductor strain gauge technology for linear and accurate pressure detection. Maximum pressure rating of 980.7 kPa with high accuracy. Wide operating temperature range from -20°C to 100°C. Compact dimensions enabling versatile use in tight spaces.
RoHS compliant for environmental and safety standards. 6 pin DIP package mount for ease of integration on PCB. Suitable for medical, home appliance, gas, and industrial equipment. Explore more high-quality Pressure Sensor ICs from Panasonic and related components at EnvMart for your industrial and laboratory electronics needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating pressure of the ADP1251 sensor is 980.7 kPa.
This gauge pressure sensor has an accuracy of ±0.3 %.
The dimensions of the ADP1251 sensor are a base area of 10 x 8.6 mm, a length of 10 mm, and a height of 9.3 mm.
It operates within a temperature range from -20°C to 100°C.
The output voltage of the ADP1251 varies between a minimum of 40 mV and a maximum of 65 mV.
This sensor uses a DIP (Dual In-line Package) mounting type with 6 pins.
The port type of this pressure sensor is designed for NFI pressure inlet direction.
Yes, the ADP1251 is RoHS compliant, ensuring it meets environmental safety standards.
This sensor is commonly used in medical devices, domestic appliances, gas equipment, and industrial applications.
The minimum operating pressure for the ADP1251 sensor is 4.9 kPa.
The ADP1251 sensor is manufactured in Japan.
It utilizes semiconductor strain gauge technology for linear detection characteristics.
