DiodesZetex DMP Type P-Channel MOSFET 3.7 A 20 V Enhancement 3-Pin SC-59 DMP2066LSN-7

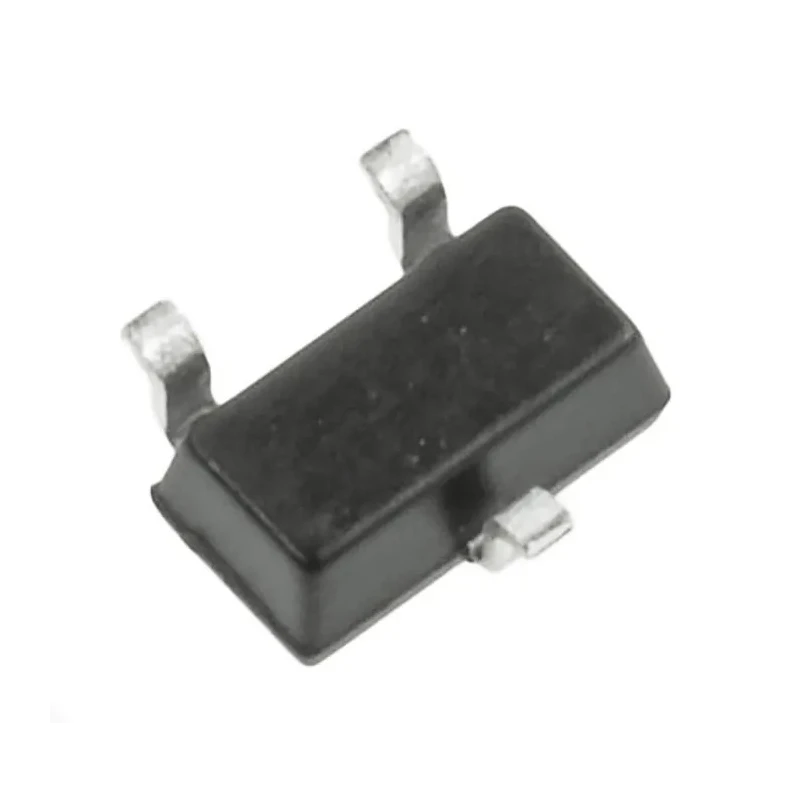

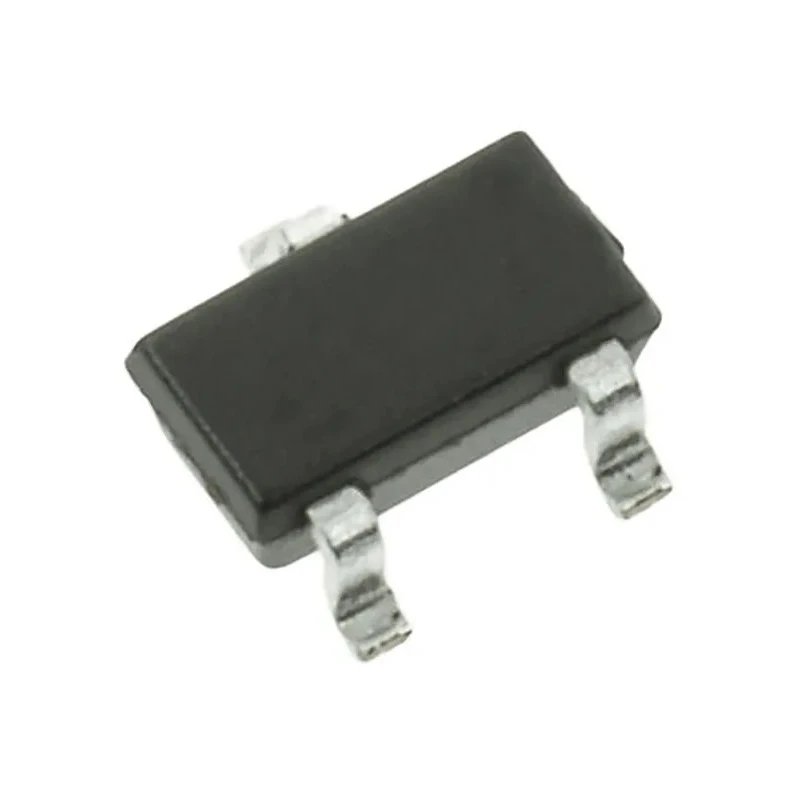

DiodesZetex DMP2066LSN-7 is a P-Channel MOSFET featuring a maximum continuous drain current of 3.7 A and a maximum drain-source voltage of 20 V. Packaged in a compact 3-pin SC-59 surface mount package, this device offers enhancement mode operation optimized for efficient power switching and control.

The transistor measures 1.3 mm in height, 3.1 mm in length, and 1.7 mm in width, making it ideal for compact circuit designs. It supports high power dissipation up to 1.25 W and operates reliably within a wide temperature range from -55°C to 150°C, suitable for automotive and industrial applications.

With a typical gate charge of 10.1 nC, the DMP2066LSN-7 enables rapid switching with low gate drive current demand. Its maximum gate-source voltage rating is ±12 V, with a forward voltage of -0.72 V, ensuring stable operation in multiple circuit configurations.

This MOSFET complies with the AEC-Q101 automotive standard, assuring high reliability in automotive electronics and other demanding environments. Being surface mount capable with its SC-59 package and 3-pin layout, it supports automated PCB assembly for volume production.

Manufactured in China under new condition, this DiodesZetex MOSFET is widely applied in electronic components, power supplies, motor drivers, and automotive electronics. Enhancement mode P-Channel MOSFET for efficient power switching.

Compact 3-pin SC-59 surface mount package for space-saving designs. Maximum continuous drain current of 3.7 A and drain-source voltage of 20 V. Wide operating temperature from -55°C to 150°C for automotive and industrial use.

Typical gate charge of 10.1 nC enables fast switching speeds. Meets AEC-Q101 automotive standard for quality and reliability. Discover more high-quality power semiconductors in the Power MOSFET category at EnvMart to support your industrial, automotive, and electronics manufacturing needs.
