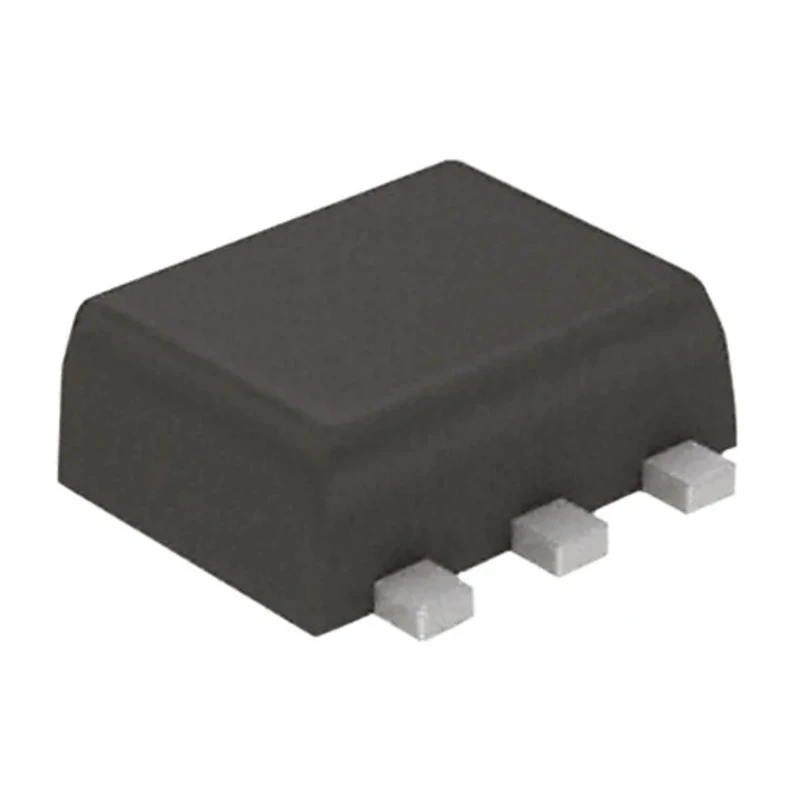

DiodesZetex Isolated 2 Type P, Type N-Channel Power MOSFET 620mA 60V Enhancement 6-Pin SOT-563 DMG1029SV-7
Specifications
| Country of Origin | China |
|---|---|
| Brand | DiodesZetex |
| Height | 0.6mm |
| Length | 1.7mm |
| Model | DMG1029SV-7 |
| Width | 1.25mm |
| Mount Type | Surface |
| Maximum Operating Temperature | +150°C |
| Package Type | SOT-563 |
| Minimum Operating Temperature | -55°C |
| Standards/Approvals | J-STD-020, MIL-STD-202, AEC-Q101, RoHS, UL 94V-0 |
| Pin Count | 6 |
| Number of Elements per Chip | 2 |
| Automotive Standard | AEC-Q101 |
| Channel Type | Type P, Type N |
| Maximum Continuous Drain Current Id | 620mA |
| Maximum Drain Source Voltage Vds | 60V |
| Maximum Drain Source Resistance Rds | 6Ω |
| Channel Mode | Enhancement |
| Maximum Power Dissipation Pd | 1W |
| Typical Gate Charge Qg @ Vgs | 0.3nC |
| Maximum Gate Source Voltage Vgs | -20, +20V |
| Forward Voltage Vf | 1.4V |
| Transistor Configuration | Isolated |
Key Features
- This power MOSFET features isolated dual N/P channels for enhanced circuit design flexibility.
- The device supports a maximum continuous drain current of 620mA.
- Maximum drain-source voltage rating is 60 volts with a low drain-source resistance of 6 ohms.
- Compact surface-mount design with a 6-pin SOT-563 package ensures easy PCB integration.
- Operating temperature ranges from -55°C to +150°C for reliable performance under harsh conditions.
- Typical gate charge is 0.3 nanocoulombs at gate-source voltage, enabling efficient switching.
- Meets automotive AEC-Q101 standards and complies with RoHS.
- Suitable for electronic applications demanding low power dissipation up to 1 watt.
Product Description
DiodesZetex DMG1029SV-7 is an isolated dual type P and type N channel power MOSFET designed for high efficiency and reliable semiconductor switching applications. It has a compact 6-pin SOT-563 surface mount package with dimensions 1.7mm length, 1.25mm width, and 0.6mm height, suitable for space-constrained electronic devices.
This power MOSFET supports a maximum continuous drain current of 620mA and withstands drain-source voltages of up to 60 volts. Its enhancement mode operation and low maximum drain-source resistance of 6 ohms enable efficient power management.
The device has a maximum power dissipation of 1 watt and operates reliably across a wide temperature range from -55°C to +150°C, making it suitable for industrial, automotive, and general electronic applications requiring robust thermal handling.
Typical gate charge is only 0.3nC, and maximum gate-source voltage tolerances are -20 to +20 volts, making it suitable for precision gate control. It also features a forward voltage of 1.4 volts and isolated transistor configuration for enhanced circuit isolation.
The DMG1029SV-7 meets key industry standards such as J-STD-020, MIL-STD-202, AEC-Q101 automotive qualification, RoHS compliance, and UL 94V-0 flammability rating, ensuring quality and safety.
This power MOSFET is ideal for use in automotive electronics, industrial control circuits, power management systems, and other surface mount applications requiring dual N/P channel functionality in a compact package.
Isolated dual N/P channel Power MOSFET for versatile circuit applications. Supports maximum continuous drain current of 620mA at 60V. Enhancement mode with low drain-source resistance of 6Ω for efficiency. Surface mount 6-pin SOT-563 package for compact PCB integration.
Wide operating temperature range from -55°C to +150°C for industrial use. Meets automotive standard AEC-Q101 and RoHS compliance. Complies with J-STD-020 and MIL-STD-202 quality standards. Low typical gate charge of 0.3 nanocoulombs for rapid switching.
Explore more power semiconductors and MOSFETs at EnvMart for your professional electronic component needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous drain current for this model is 620mA.
The maximum drain-source voltage rating is 60 volts.
The typical gate charge is 0.3 nanocoulombs at gate-source voltage.
It comes in a 6-pin SOT-563 surface mount package with dimensions of 1.7mm length, 1.25mm width, and 0.6mm height.
The operating temperature range is from -55°C to +150°C.
It complies with J-STD-020, MIL-STD-202, AEC-Q101 automotive qualification, RoHS, and has a UL 94V-0 flammability rating.
The maximum power dissipation is 1 watt.
This model features isolated dual N and P channel configurations.
The maximum drain-source resistance is 6 ohms.
The forward voltage is 1.4 volts.
The maximum gate-source voltage tolerance is between -20 to +20 volts.
It is suitable for automotive electronics, industrial control circuits, and power management systems requiring dual N/P channel functionality.
