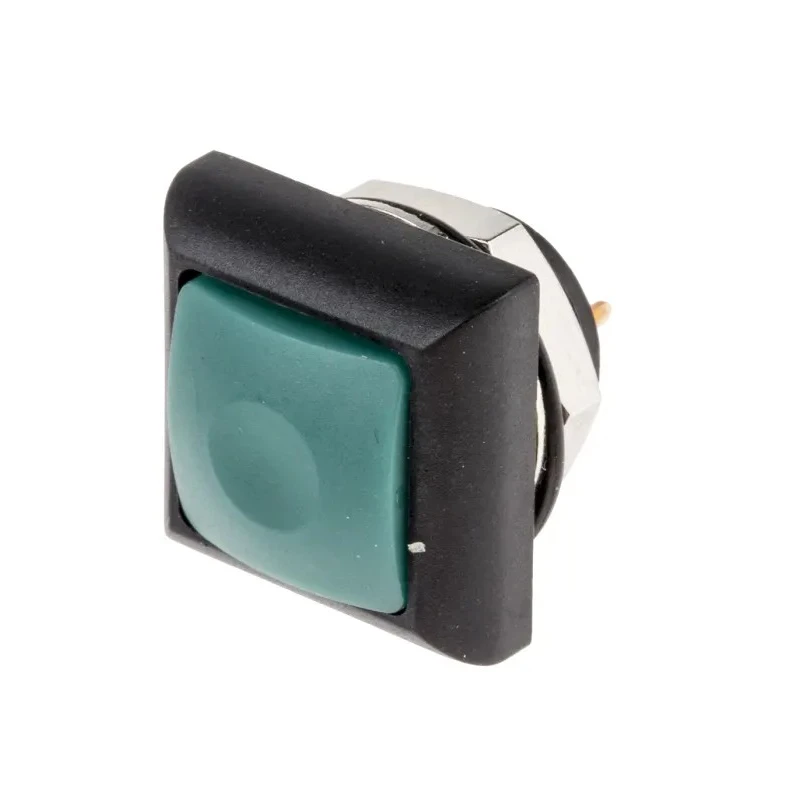

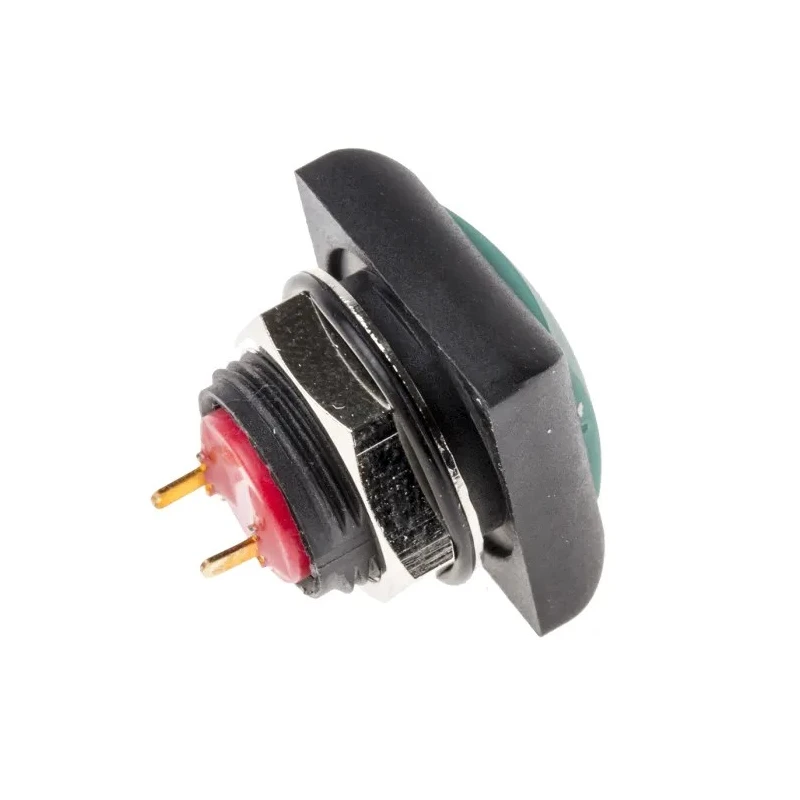

RS PRO Push Button Switch Momentary PCB Mount Green LED 13.6 mm Cutout SPST IP67 50V dc 32V ac 820-7561

RS PRO model 820-7561 is a high-quality push button switch designed for momentary operation with PCB mounting. It features a 13.6 mm cutout panel size and is fitted with a green LED for illumination, suitable for clear signaling in industrial and automation applications.

This switch utilizes a SPST contact configuration and is rated for 50V dc and 32V ac, making it ideal for use in low voltage electrical circuits. The IP67 rating ensures that it is dust tight and protected against immersion in water, enabling reliable use in demanding industrial, electrical, and automation control systems.

The actuator style is a robust cap type with green color for easy visibility. With an operating force between 2N and 5N and a short contact bounce time of 10 ms, this push button delivers precise and responsive switching performance, supported by a mechanical life cycle of 1,000,000 operations for extended durability.

Meeting Lead-Free and RoHS standards, this switch complies with environmental regulations for safe usage across various sectors including manufacturing, industrial machinery, HVAC control, and electrical panels. The device can withstand soldering temperatures of up to 350°C for 5 seconds, accommodating common PCB assembly processes.

Features a SPST contact configuration for simple open or close operation. Rated for 50V dc and 32V ac contact voltages ensuring compatibility with low voltage circuits. Constructed with IP67 rating providing dust-tight and water ingress protection.

Equipped with a green color cap actuator for clear visual indication. Mechanical life rated for 1,000,000 cycles ensuring long-term reliability. Operating force between 2N and 5N allows smooth actuation with minimal effort.

Contact bounce time of 10 ms reduces signal noise and enhances switching reliability. Maximum operating temperature of 85°C suitable for industrial environments. Lead-Free and RoHS compliant for environmental and safety standards.

Soldering tolerance up to 350°C for 5 seconds enabling standard PCB manufacturing processes.

This push button switch is widely used in industrial, electrical control, automation, and manufacturing environments, providing consistent performance and sturdy protection against harsh operational conditions.
