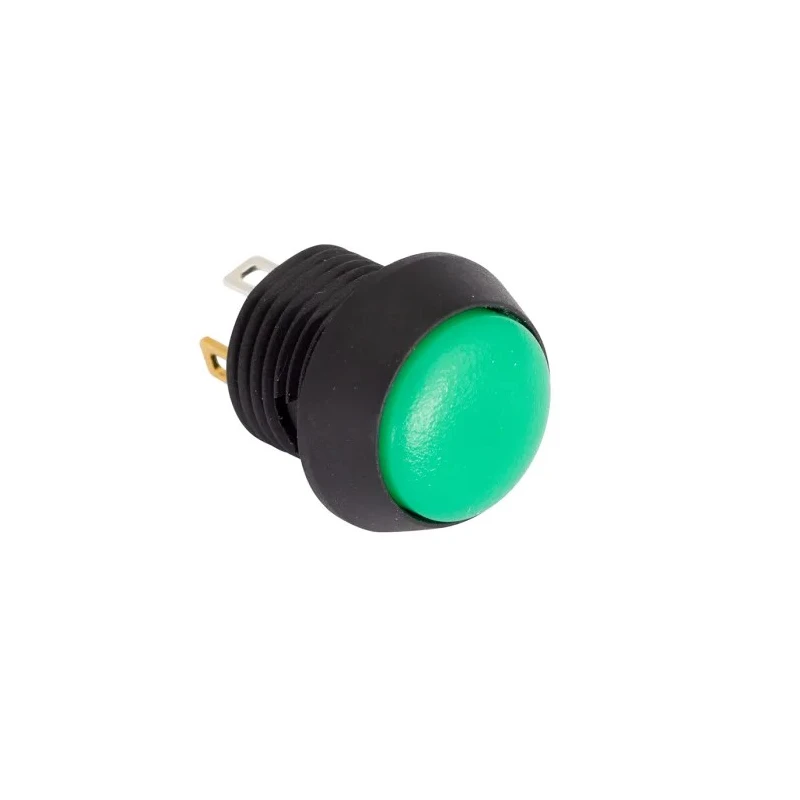

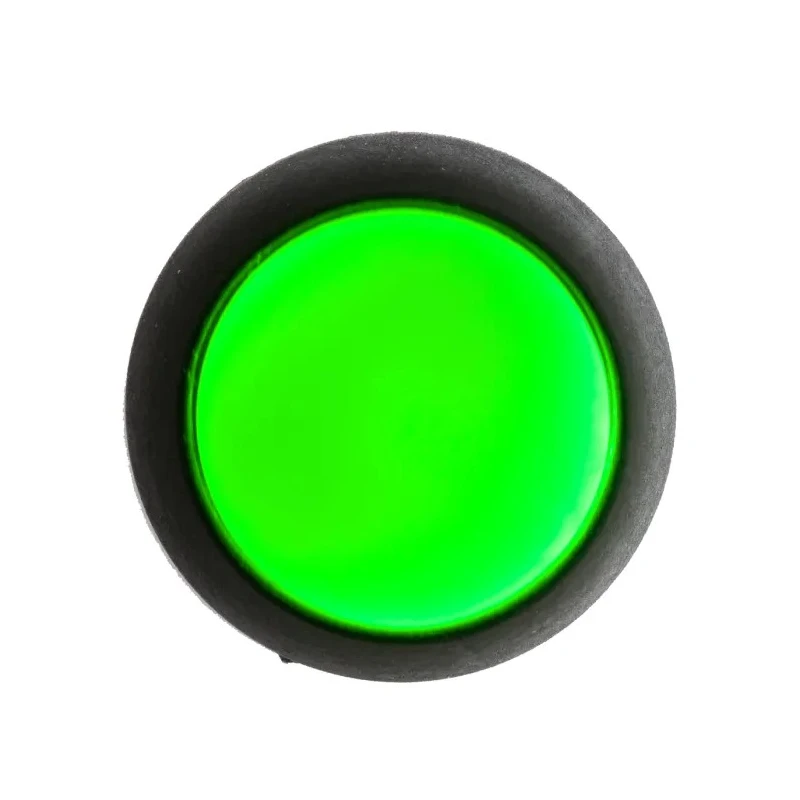

EOZ FL Series Illuminated Push Button Switch, Momentary, Panel Mount, 13.5 mm Cutout, SPST, Green LED, IP67, 2.5 kV FL13LG5
Specifications
| Country of Origin | France |
|---|---|
| Brand | EOZ |
| Operating Temperature Range | -40 to +85°C |
| Model | FL13LG5 |
| IP Rating | IP67 |
| Mount Type | Panel |
| Panel Thickness | 1 mm to 6 mm |
| Ingress Protection | IP67 |
| Series | FL |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPST |
| Switch Configuration | Momentary |
| Minimum Operating Temperature | -40°C |
| Panel Cutout Size | 13.5 mm |
| Terminal type | Plug-In |
| Standards/Approvals | RoHS |
| LED Colour | Green |
| Switch Operation | Momentary |
| Actuator Colour | Green |
| Actuator Style | Cap |
| Switch Contact Current | 65mA |
| Contact AC Voltage | 2.5kV ac |
| Contact terminals | Gold plated nickel |
| LED terminals | Silver plated nickel |
Key Features
- The switch features full face illumination using pre-installed 5 V green LEDs.
- Designed for panel thicknesses ranging from 1 mm to 6 mm.
- Provides ingress protection rating of IP67, making it sealed and vandal resistant.
- Operates reliably within a temperature range of -40 to +85°C.
- Terminal type is 2.8 x 0.5 mm plug-in connectors with gold plated nickel contact terminals.
- LED terminals are silver plated nickel for durability and conductivity.
- Switch contact current rating is 65 mA with an AC voltage withstand of 2.5 kV.
- The actuator style is a cap with a green actuator colour matching the LED illumination.
Product Description
EOZ FL13LG5 FL Series Illuminated Push Button Switch is a reliable momentary switch designed for panel mounting applications requiring a 13.5 mm cutout. It features a Single Pole Single Throw (SPST) contact configuration and green LED full face illumination achieved through pre-installed 5 V LEDs, ensuring excellent visibility and operational feedback.
The switch supports panel thicknesses from 1 mm up to 6 mm and is rated IP67, providing complete protection against dust ingress and water immersion, making it suitable for challenging industrial and outdoor environments. Its robust design grants vandal resistance, safeguarding the switch face from physical damage.
Operating temperature range spans from -40°C to 85°C, ensuring consistent performance under various environmental conditions. Electrical ratings include a 65 mA contact current and a high AC voltage withstand capability of 2.5 kV to protect against electrical surges.
The switch uses 2.8 x 0.5 mm plug-in terminals with gold plated nickel contact terminals to provide reliable conductivity and corrosion resistance. LED terminals feature silver plated nickel for extended durability. The cap-shaped actuator with green colour coordinates with the illumination for intuitive user interaction.
This product complies with RoHS directives, affirming its environmental and safety standards. The push button switch is ideal for use in industrial machinery controls, electrical panels, automation equipment, and other commercial and manufacturing applications where reliable switching with clear indication is essential.
The switch features full face illumination with 5 V green LEDs. Ingress protection rating of IP67 for dust and water resistance. Panel mount design compatible with 13.5 mm cutouts. Momentary switch operation with SPST contact configuration.
Gold plated nickel contact terminals and silver plated nickel LED terminals. Operates across a wide temperature range of -40 to +85 degrees Celsius. Plug-in terminal type measuring 2.8 x 0.5 mm facilitates easy installation.
Vandal resistant design suitable for industrial environments. Meets RoHS compliance for safety and environmental standards. Explore more EOZ Push Button Switches and electrical components for advanced electrical and automation solutions at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The operating temperature range for this model is -40°C to 85°C, allowing it to function reliably in extreme conditions.
This switch has an ingress protection rating of IP67, providing complete protection against dust and water immersion.
It features 2.8 x 0.5 mm plug-in terminals with gold plated nickel contact terminals for reliable conductivity.
The switch has a contact current rating of 65 mA, suitable for various applications.
This model requires a panel cutout size of 13.5 mm for proper installation.
The actuator style is a cap, and it features a green color that matches the LED illumination.
Yes, the IP67 rating and vandal resistant design make it suitable for outdoor and industrial environments.
It has a Single Pole Single Throw (SPST) contact configuration, designed for momentary operation.
Yes, it complies with RoHS directives, affirming its environmental and safety standards.
The switch has an AC voltage withstand capability of 2.5 kV, providing protection against electrical surges.
The switch is designed to accommodate panel thicknesses ranging from 1 mm to 6 mm.
It features pre-installed 5 V green LEDs for full face illumination, enhancing visibility and operational feedback.
